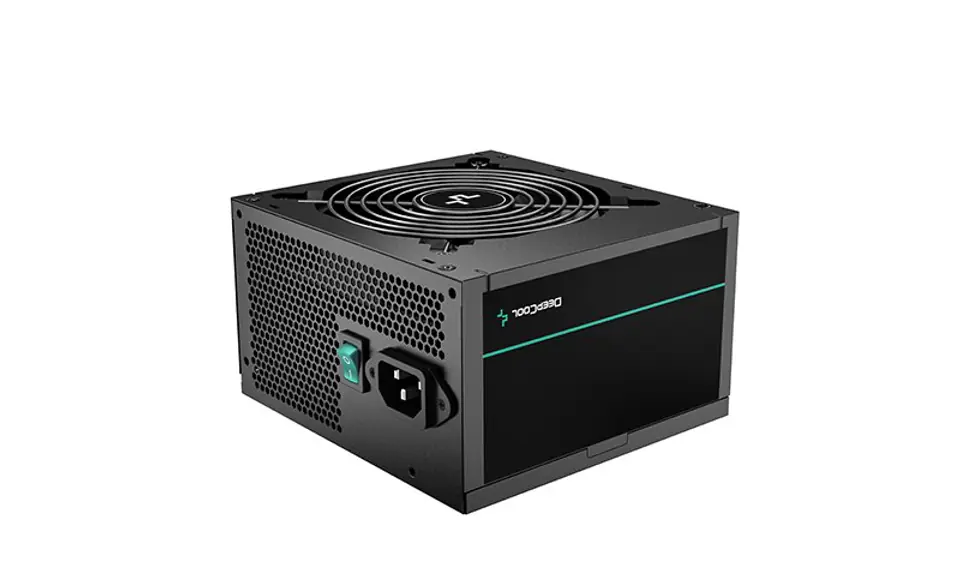

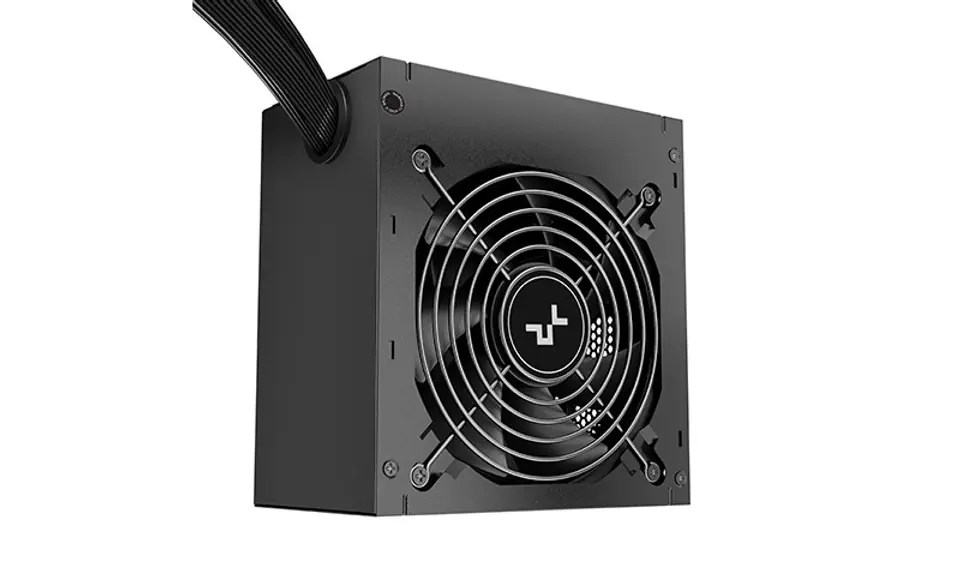

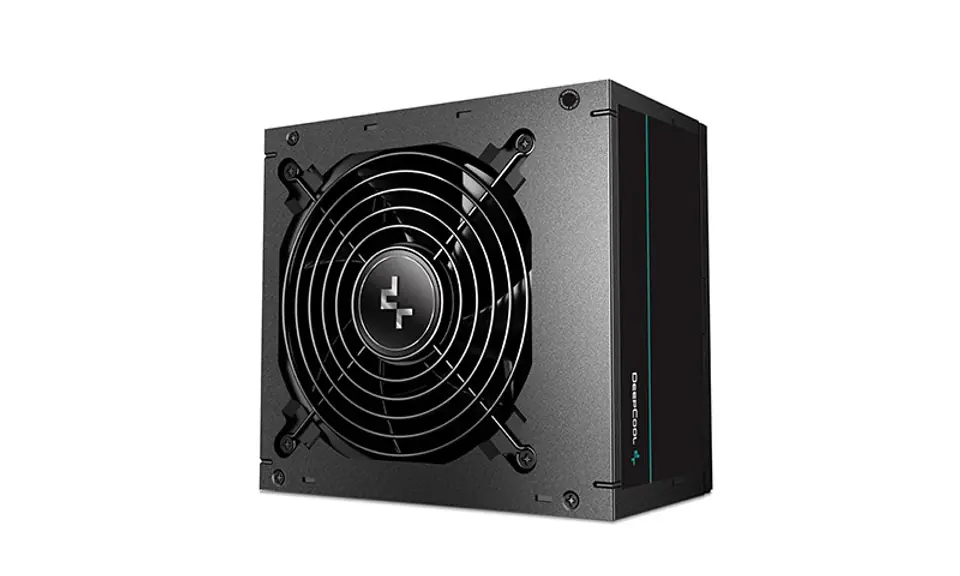

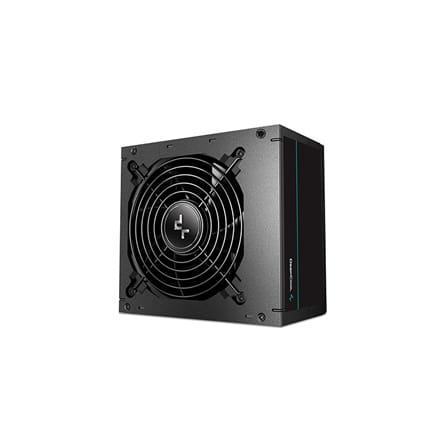

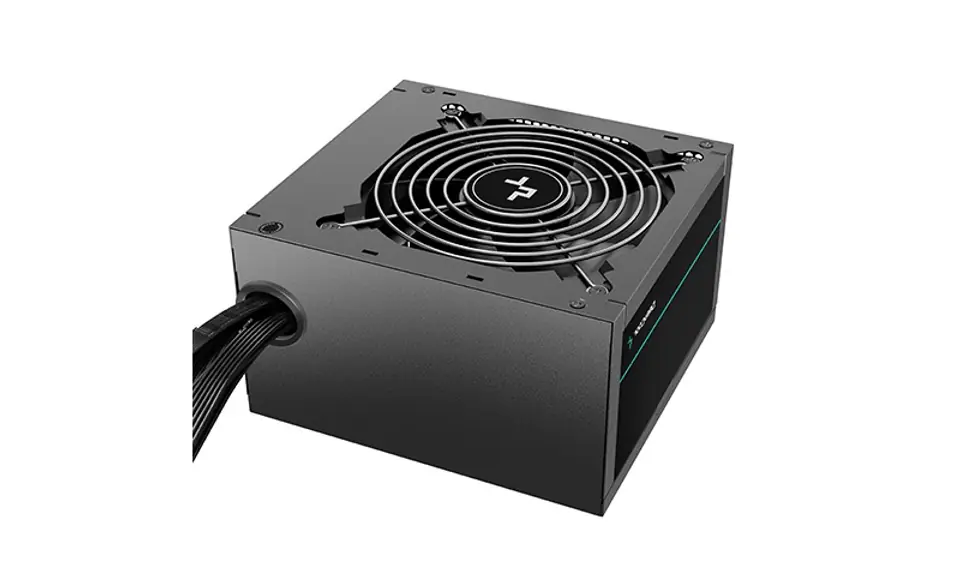

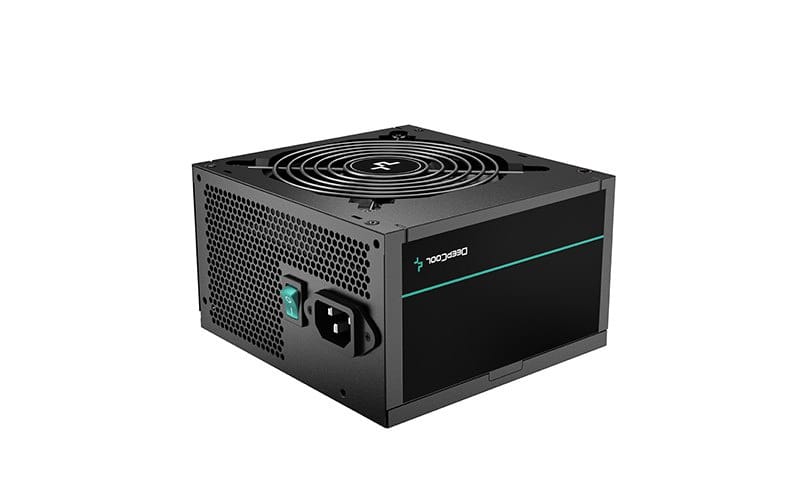

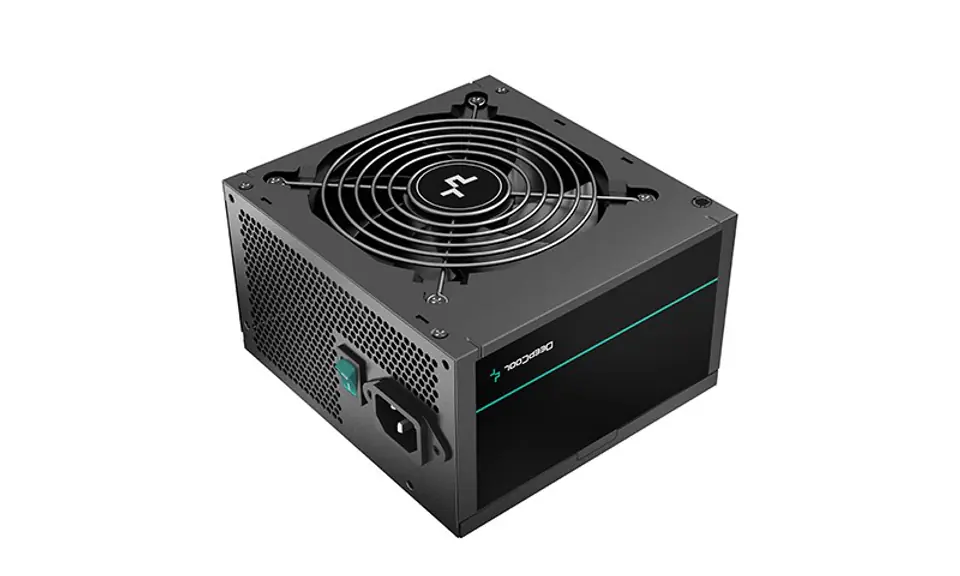

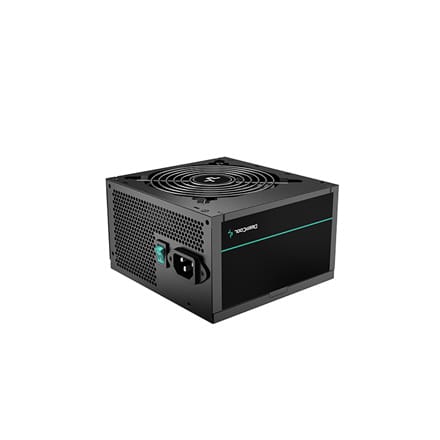

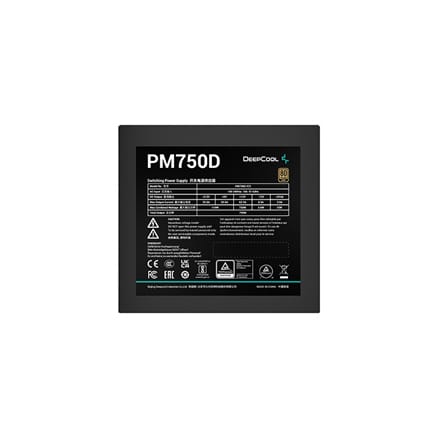

Deepcool PSU PM750D 750 Watts
This product is not available
- Availability:
- expected delivery
- Brand:
- Deepcool
- Product code:
- R-PM750D-FA0B-EU / 6933412709510
Share this product:
Specification
| 80 plus certification: | 80 PLUS Gold |
|---|---|
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx power connector (20+4 pin): | Yes |
| Atx version: | 2.4 |
| Bearing technology: | Hypro Bearing |
| Cables included: | AC |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 750 W |
| Combined power (+3.3v): | 110 W |
| Combined power (+5v): | 110 W |
| Combined power (+5vsb): | 15 W |
| Cooling type: | Active |
| Depth: | 140 mm |
| Efficiency: | 90% |
| Eps power connector (4+4 pin): | Yes |

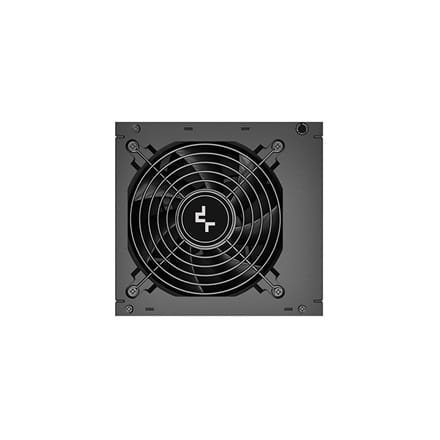

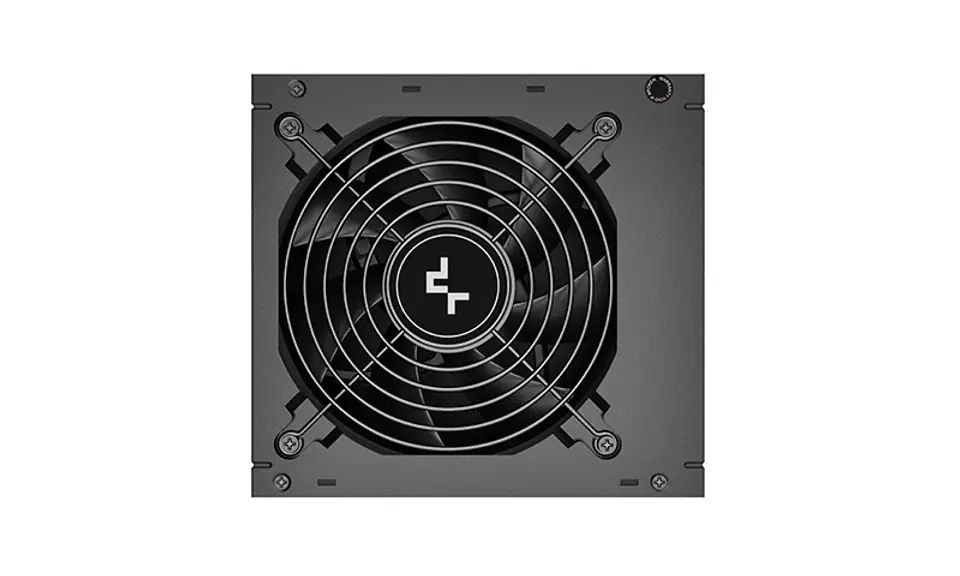

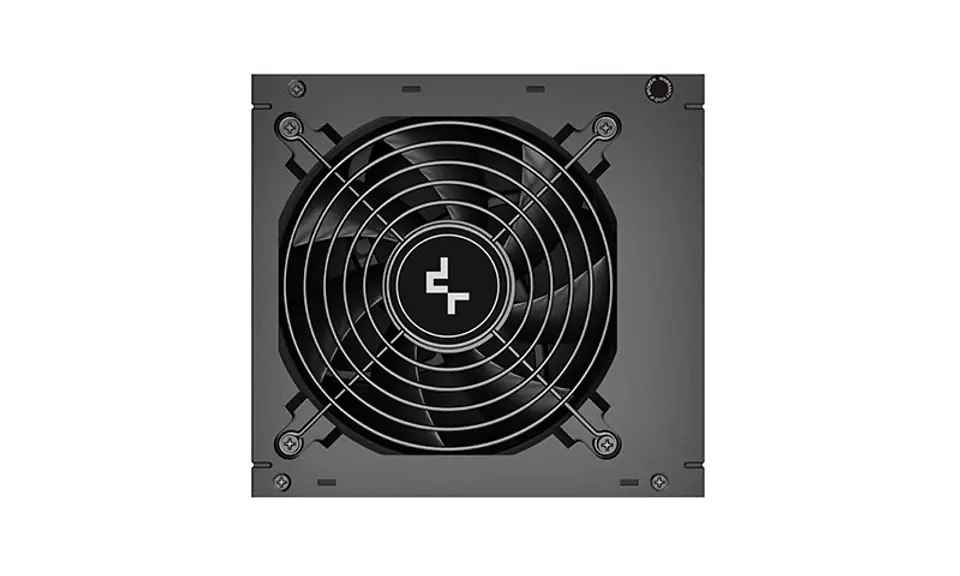

| Fan diameter: | 12 cm |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Hold time: | 16 ms |
| Input current: | 10 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 62.5 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 3 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 2 |
| On/off switch: | Yes |
| Operating temperature (t-t): | 0 - 40 °C |
| Package type: | Box |
| Pci express power connectors (6+2 pin): | 3 |
| Peripheral (molex) power connectors (4-pin): | 1 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Over current, Short circuit, Over voltage, Over power |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Total power: | 750 W |
| Width: | 150 mm |
