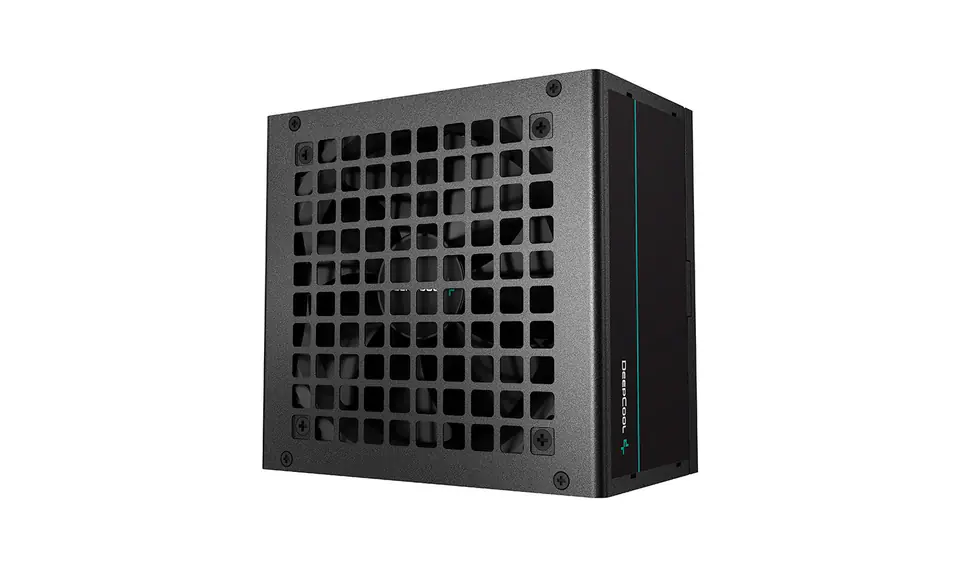

Deepcool PF500 500W, 80 PLUS Standard Certified
This product is not available
- Availability:
- expected delivery
- Brand:
- Deepcool
- Product code:
- R-PF500D-HA0B-EU / 6933412711254
Share this product:
Specification
| 80 plus certification: | 80 PLUS |
|---|---|
| Ac input frequency: | 50 Hz |
| Ac input voltage: | 220 - 240 V |
| Atx version: | 2.4 |
| Cables included: | AC |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 480 W |
| Combined power (+3.3v): | 100 W |
| Combined power (+5v): | 100 W |
| Combined power (+5vsb): | 12.5 W |
| Cooling type: | Active |
| Depth: | 140 mm |
| Efficiency: | 85% |
| Eps power connector (4+4 pin): | Yes |
| Fan diameter: | 12 cm |
| Height: | 86 mm |
| Hold time: | 16 ms |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 40 A |
| Max output current (+3.3v): | 15 A |
| Max output current (+5v): | 15 A |
| Max output current (+5vsb): | 2.5 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 55 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 4 |
| On/off switch: | Yes |
| Operating temperature (t-t): | 0 - 40 °C |
| Package type: | Box |
| Pci express power connectors (6+2 pin): | 2 |
| Power protection features: | Under voltage, Short circuit, Over voltage, Over power |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC/Server |
| Sata power cable length: | 750 mm, 450, 600 mm, 900 mm |
| Total power: | 500 W |
| Width: | 150 mm |
