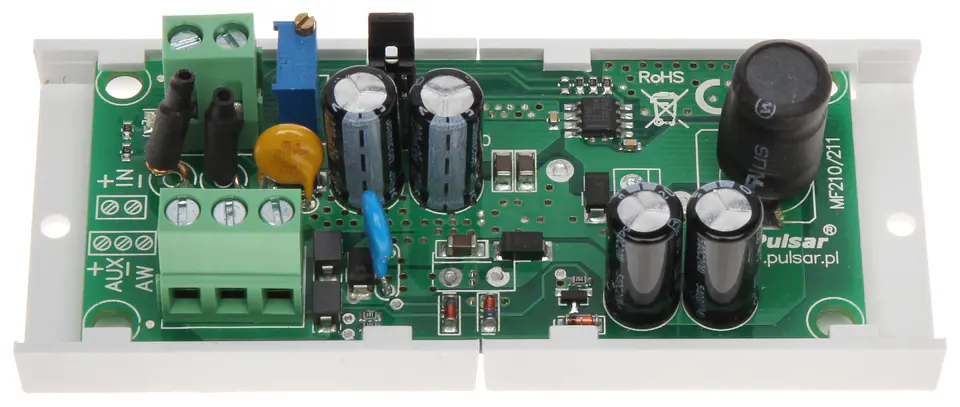

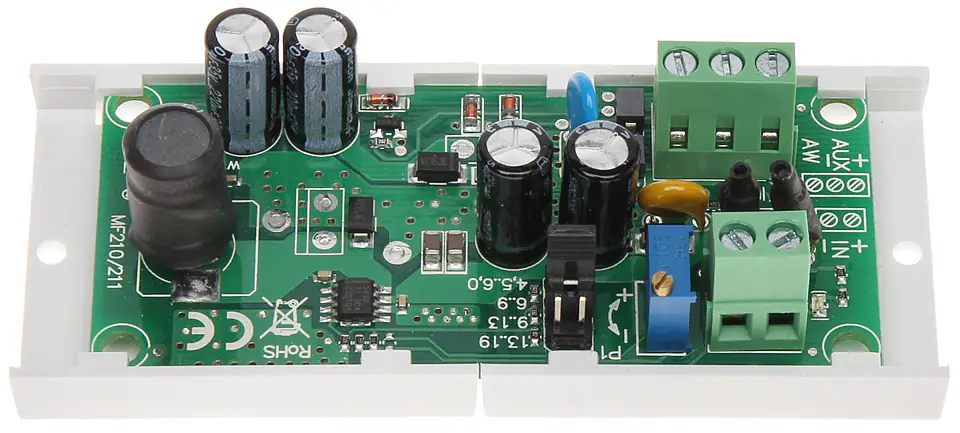

Lowering Converter ModuleDC-20SD Device Converts Input Voltage to 4.5V ... 19VDC
DCDC-20SD PULSAR CONVERTER MODULE
€22.06
Shipping from warehouse: D4
Estimated shipping: Mon, Oct 27 - Thu, Oct 30
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- DCDC-20SD / 5902135303979
Share this product:
Specification
| Destiny:: | to power cameras to power cameras with thermostat |
|---|---|
| Dimensions:: | 100 x 43 x 27 mm |
| Manufacturer / brand:: | PULSAR |
| Minimum voltage difference between output and output:: | 3 volts |
| Output voltage adjustment:: | Potentiometer |

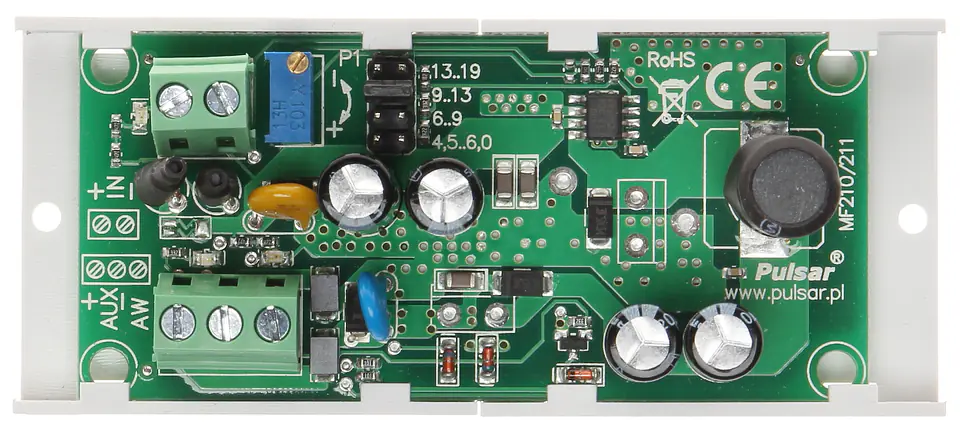

| Output voltage:: | 4.5 ... 6 V DC, 6 ... 9 V DC, 9 ... 13 VDC, 13 ... 19 V DC ,(adjustable by jumpers) |
| Output:: | 2 A (max. max. |
| Power:: | 24 W (max) |
| Scales:: | 0.046 kg |
| Security:: | Short-circuit Thermal Overload |
| Selected features:: | LED signaling - Input voltage, Output voltage AW output (failure) - OC type 50mA, LED signaling failure of at least one output |
| Supply voltage:: | 8 V ... 28 VDC |
| Type:: | Voltage Reduction, DC/DC |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
