| 3d nr (noise reduction): | Yes |
|---|---|
| Ac adapter output voltage: | 12 V |
| Built-in loudspeaker: | Yes |
| Colour: | Yes |
| Connectivity technology: | Wired |

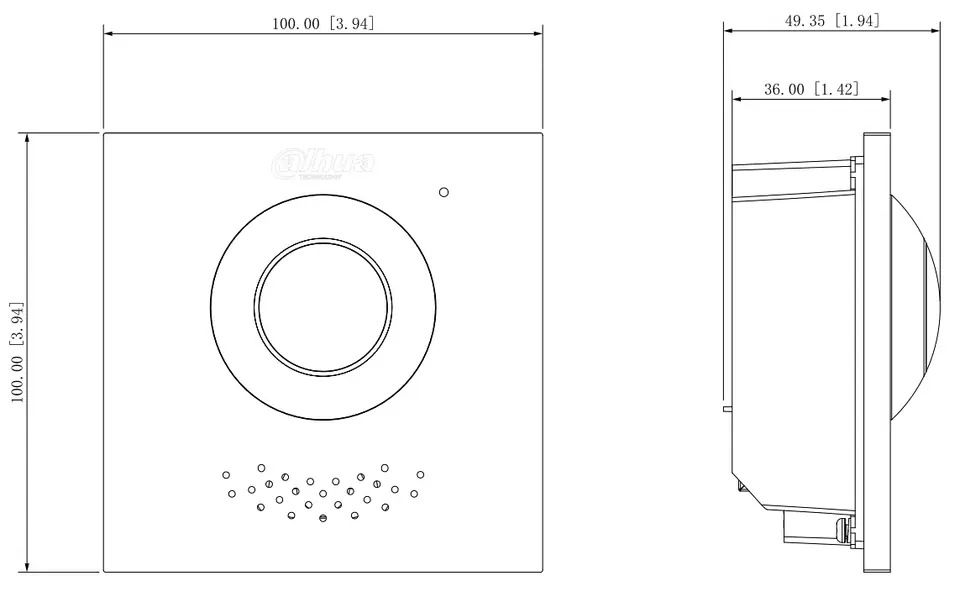

| Depth: | 36 mm |
| Diagonal field of view: | 176,7° |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 10,100 Mbit/s |
| Fixed focal length: | 1.9 mm |
| Height: | 100 mm |
| Ik code: | IK07 |
| International protection (ip) code: | IP65 |
| Led indicators: | Yes |
| Maximum frame rate: | 30 fps |
| Maximum video resolution: | 1920 x 1080 pixels |
| Megapixel (approx.): | 2 MP |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating system installed: | Embedded LINUX |
| Operating temperature (t-t): | -30 - 60 °C |
| Placement supported: | Vertical |
| Power consumption (typical): | 12 W |
| Power over ethernet (poe): | Yes |
| Power supply voltage: | 48 V |
| Product colour: | Silver |
| Speakerphone: | Yes |
| Supported network protocols: | SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP |
| Supported video modes: | 720p, 1080p |
| Sustainability certificates: | CE |
| Video formats supported: | H.265 |
| Viewing angle, horizontal: | 168.6° |
| Viewing angle, vertical: | 87.1° |
| Weight: | 350 g |
| Width: | 100 mm |

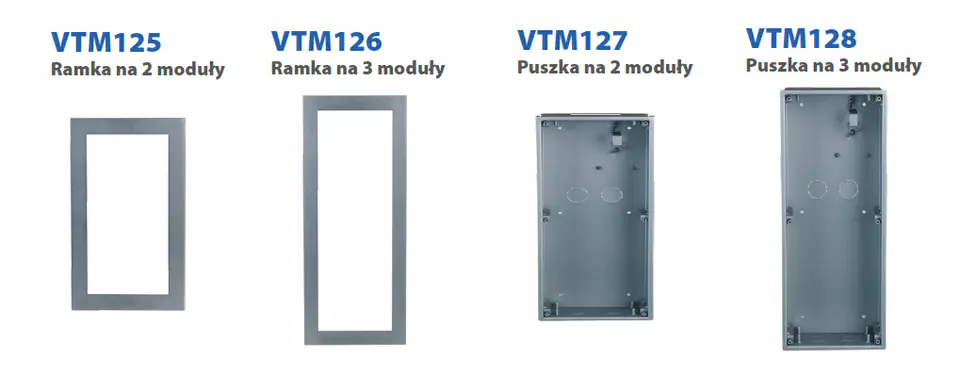

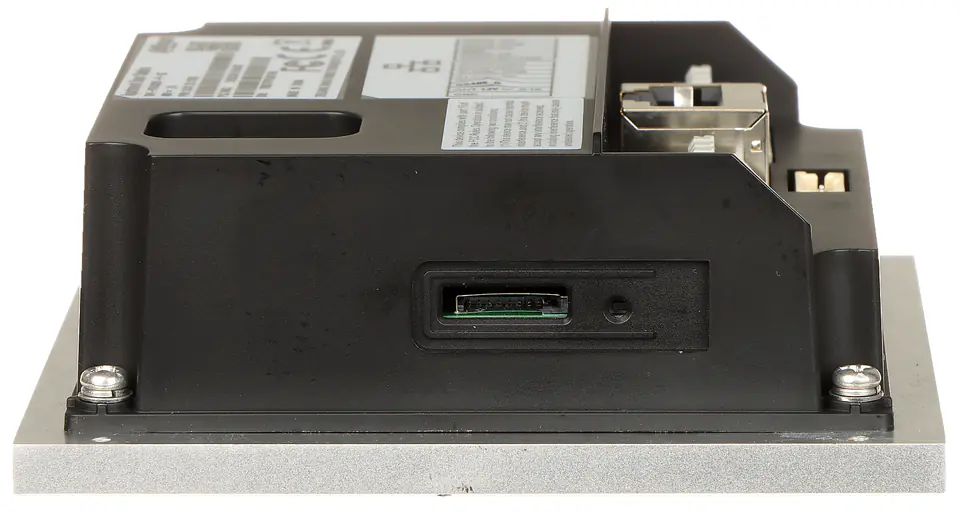

Moduł jest przeznaczony do montażu w obudowach serii VTM12x marki DAHUA
Uwaga!Przy doborze urządzeń 2-przewodowych sprawdź listę kompatybilności dostępną na dole strony w sekcji "pliki".
Jest to moduł hybrydowy - może pracować w instalacji 2-Wire lub jako standardowy wideodomofon IP
