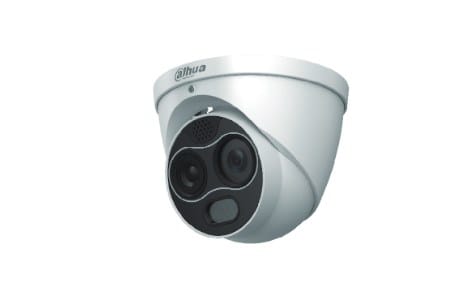

DAHUA TPC-DF1241-B3F4-S2 THERMAL IMAGING CAMERA
This product is not available
- Availability:
- expected delivery
- Brand:
- Dahua
- Product code:
- TPC-DF1241-B3F4-S2 / 6939554923647
Share this product:
Specification
| Adjustment shutter speed: | Auto/Manual |
|---|---|

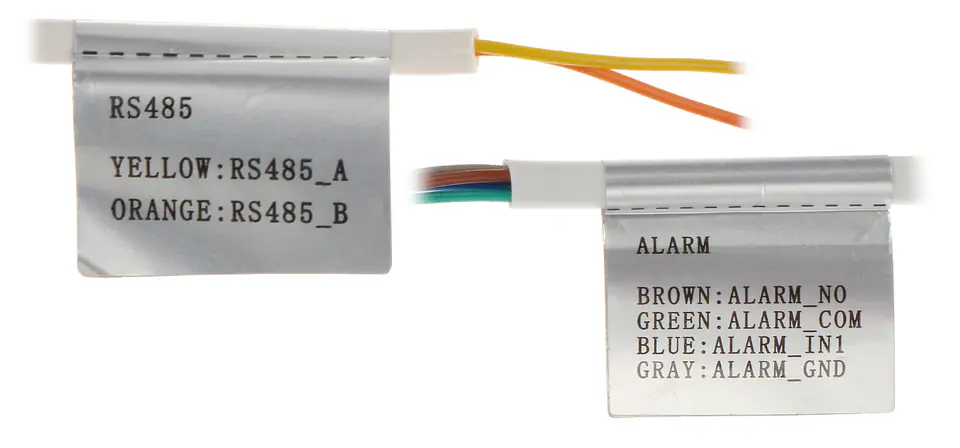

| Alarm input channels: | 1 |
| Alarm output channels: | 1 |
| Audio formats supported: | PCM, G.711 μ-law, G.711 A-law |
| Audio input channels: | 1 channels |
| Audio output channels: | 1 channels |
| Back light compensation (blc): | Yes |
| Camera pixel size: | 12 µm |
| Camera shutter speed: | 1/30000 - 1 s |

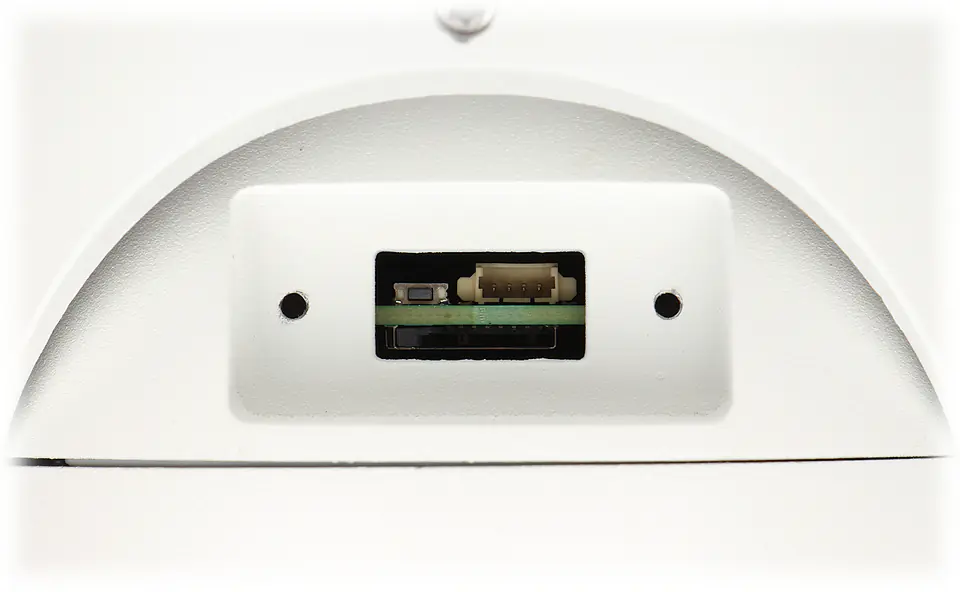

| Card reader integrated: | Yes |
| Compatible memory cards: | MicroSD (TransFlash) |
| Connectivity technology: | Wired |
| Day/night mode: | Yes |
| Dc output current: | 1.2 A |
| Dc output voltage: | 12 |

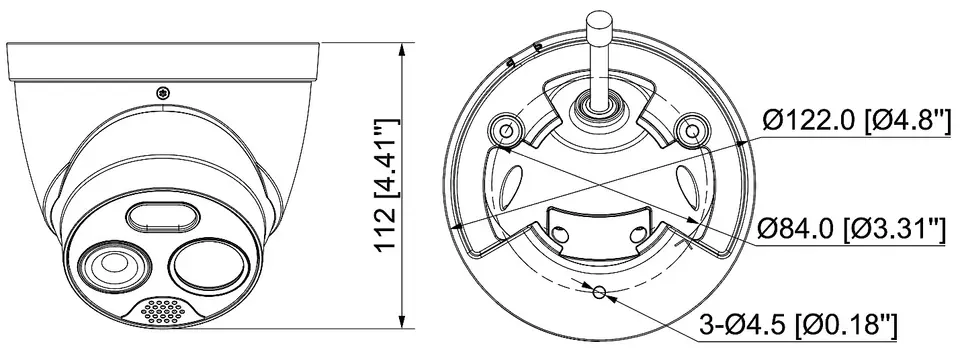

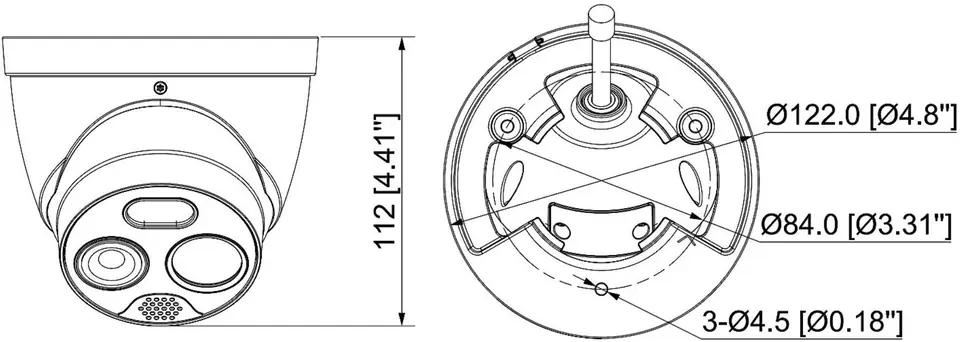

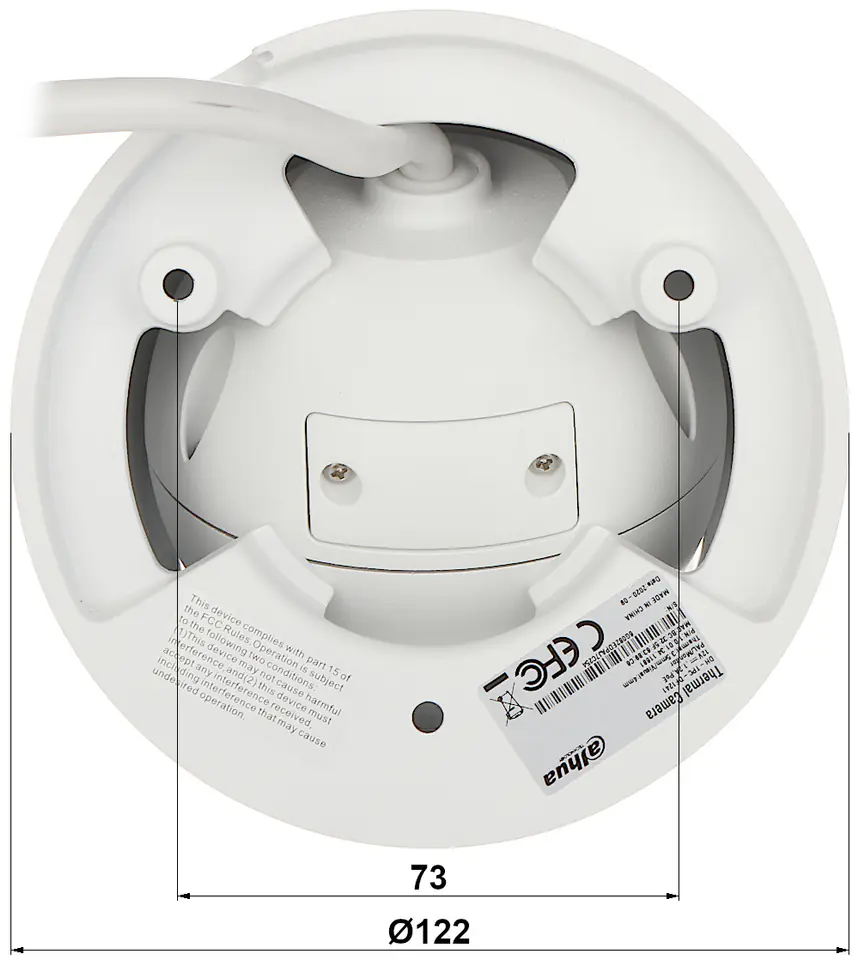

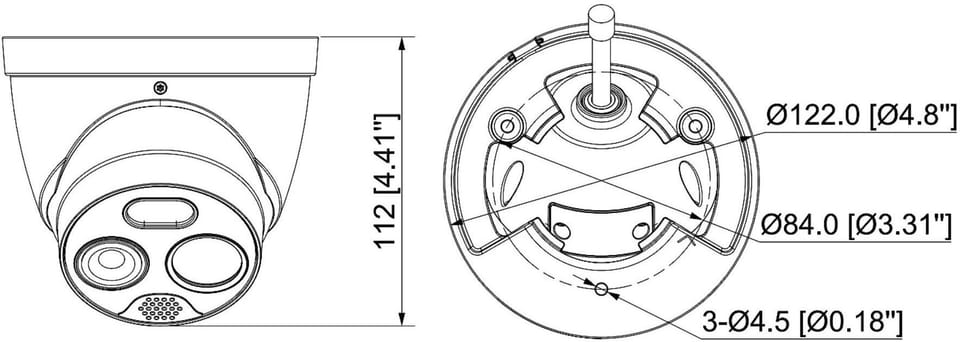

| Diameter: | 12.2 cm |
| Digital wide dynamic range (dwdr): | Yes |
| Digital zoom: | 16x |
| Effective sensor resolution (thermal module): | 256 x 192 pixels |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Focal length range: | 4 mm |
| Form factor: | Turret |
| Frame rate: | 30 fps |
| Height: | 112 mm |
| Highlight compensation (hlc): | Yes |
| International protection (ip) code: | IP67 |
| Led type: | IR |
| Lens viewing angle, horizontal: | 94° |
| Lens viewing angle, vertical: | 72° |
| Maximum aperture number: | 1 |
| Maximum memory card size: | 256 GB |
| Maximum resolution: | 2336 x 1752 pixels |
| Minimum illumination: | 0.05 lx |
| Mounting type: | Ceiling/wall |
| Night vision: | Yes |
| Night vision distance: | 30 m |
| Noise reduction: | Yes |
| Noise reduction technology: | 2D noise reduction, 3D noise reduction |
| Number of cameras: | 1 |
| Number of sensors: | 1 |
| Number of users: | 10 user(s) |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | -30 - 50 °C |
| Optical sensor size: | 25.4 / 2.7 mm (1 / 2.7") |
| Package depth: | 155 mm |
| Package height: | 135 mm |
| Package weight: | 1 kg |
| Package width: | 155 mm |
| Placement supported: | Indoor & outdoor |
| Power consumption (max): | 13 W |
| Power consumption (typical): | 6.5 W |
| Power source type: | DC, PoE |
| Product colour: | White |
| Region of interest (roi) encoding: | Yes |
| Response waveband: | 8 - 14 µm |
| Rs-485 ports: | 1 |
| Sensor type: | CMOS |
| Sensor type (thermal module): | Vanadium Oxide Uncooled Focal Plane Arrays |
| Signal-to-noise ratio (snr): | 56 dB |
| Storage temperature (t-t): | -30 - 70 °C |
| Supported graphics resolutions: | 1280 x 720 (HD 720), 640 x 480 (VGA), 1920 x 1080 (HD 1080), 352 x 288, 704 x 576, 1280 x 960, 1024 x 768 (XGA) |
| Supported network protocols: | HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Thermal frame rate (ntsc): | 50 Hz |
| Thermal frame rate (pal): | 60 Hz |
| Total megapixels: | 4 MP |
| Type: | IP security camera |
| Video compression formats: | H.264B, H.264H, H.265, H.264M |
| Web browser: | Yes |
| Weight: | 850 g |
| White balance: | Outdoor, Indoor, Street lamp, Auto, Manual, Natural |
| Wide dynamic range (wdr): | Yes |
| Zoom capability: | Yes |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
