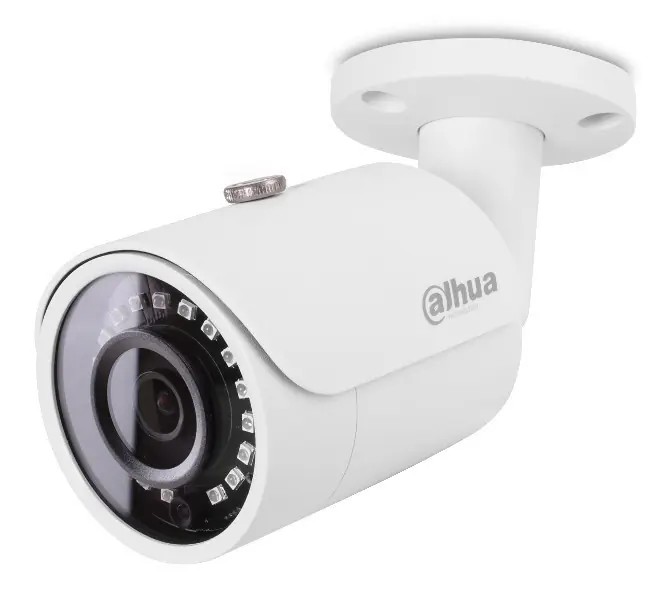

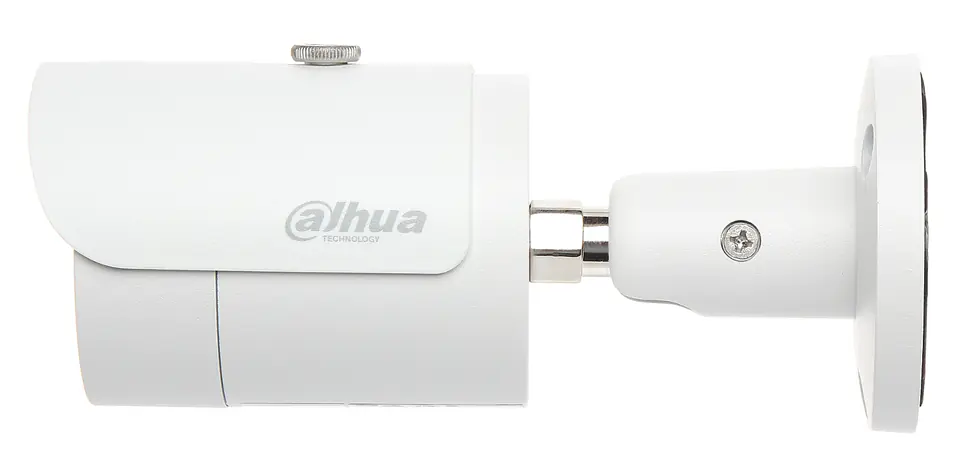

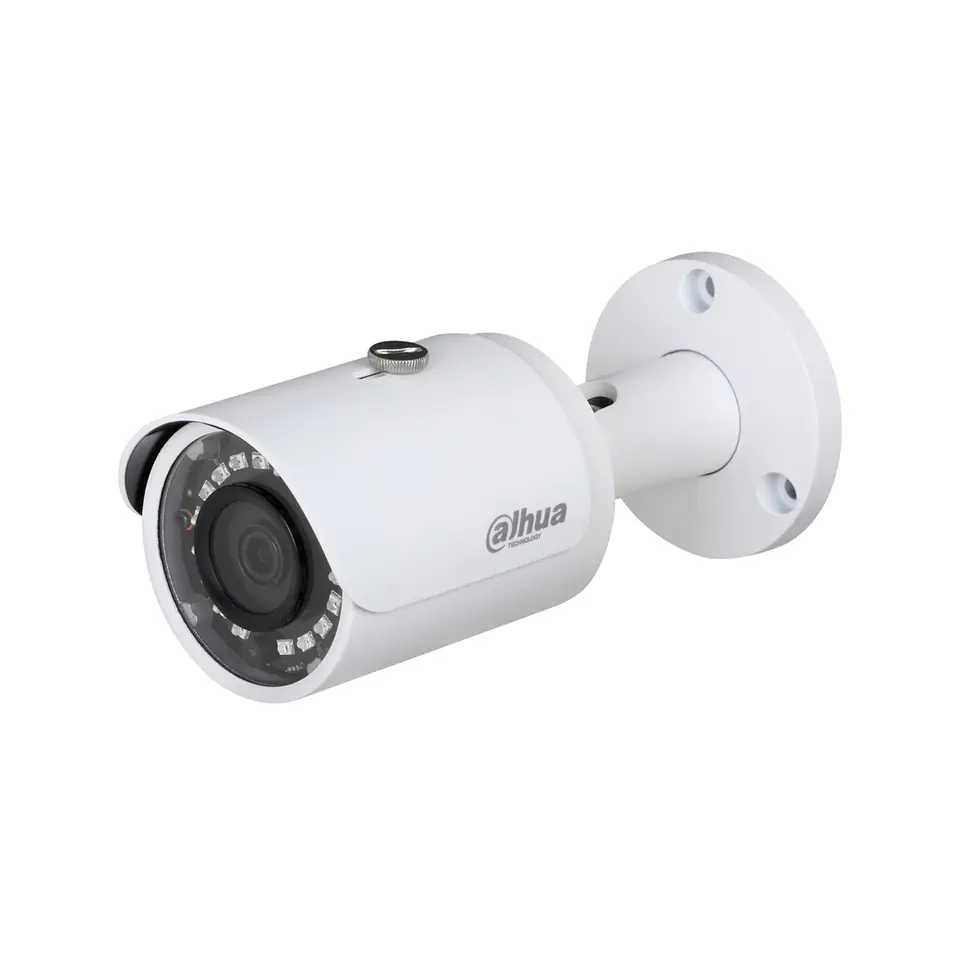

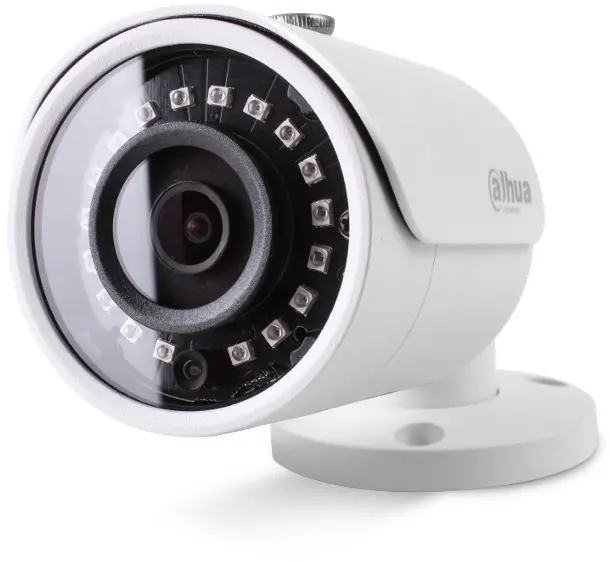

DAHUA IP CAMERA IPC-HFW1230S-0280B-S5
This product is not available
- Availability:
- expected delivery
- Brand:
- Dahua
- Product code:
- IPC-HFW1230S-0280B-S5 / 6923172529312
Share this product:
Specification
| Adjustment shutter speed: | Auto/Manual |
|---|---|
| Angle of rotation: | 360° |
| Back light compensation (blc): | Yes |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth: | No |
| Built-in hdd: | No |
| Camera pan control: | Yes |
| Camera shutter speed: | 1/3 s–1/100,000 |
| Camera shutter type: | Electronic |
| Camera tilt control: | Yes |
| Connectivity technology: | Wired |
| Day/night mode: | Yes |
| Dc output voltage: | 12 |

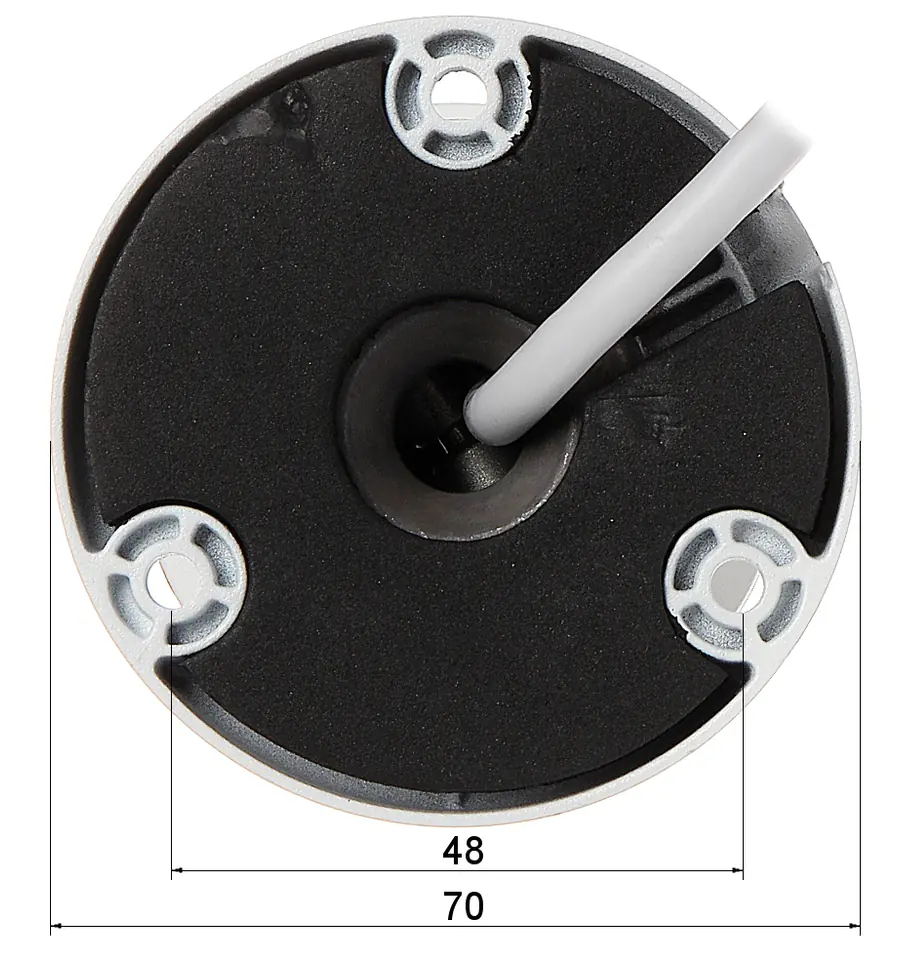

| Depth: | 70 mm |
| Digital zoom: | 16x |
| Effective sensor resolution: | 2 pixels |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Fixed focal length: | 2.8 mm |
| Fixed focal length (panoramic camera): | 600 mm |
| Flip & mirror: | Yes |
| Form factor: | Bullet |
| Frame rate: | 30 fps |
| Gain control type: | Auto/Manual |
| Height: | 70 mm |
| Highlight compensation (hlc): | Yes |
| Housing material: | Metal, Plastic |
| Intelligent video surveillance (ivs) system features: | Intrusion, Tripwire |
| Internal memory: | 256 MB |
| International protection (ip) code: | IP67 |
| Ip address filtering: | Yes |
| Led type: | IR |
| Lens viewing angle, horizontal: | 104° |
| Lens viewing angle, vertical: | 55° |
| Maximum aperture number: | 2 |
| Maximum resolution: | 1920 x 1080 pixels |
| Minimum illumination (panoramic camera): | 0.3 lx |
| Mirror: | Yes |
| Mobile operating systems supported: | Android, iOS |
| Motion sensor: | Yes |
| Mounting type: | Ceiling/wall |
| Networking standards: | IEEE 802.1x |
| Night vision: | No |
| Night vision distance: | 30 m |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Number of cameras: | 1 |
| Number of effective pixels (h x v): | 1920 x 1080 pixels |
| Number of illumination leds: | 18 |
| Number of lenses: | 1 |
| Number of sensors: | 1 |
| Number of users: | 20 user(s) |
| Operating temperature (t-t): | -30 - 60 °C |
| Optical sensor size: | 25.4 / 2.7 mm (1 / 2.7") |
| Pan range: | 0 - 360° |
| Placement supported: | Indoor & outdoor |
| Power consumption (typical): | 5.5 W |
| Power source type: | DC, PoE |
| Privacy masking: | Yes |
| Product colour: | White |
| Progressive scan: | Yes |
| Region of interest (roi) encoding: | Yes |
| Rom capacity: | 32 MB |
| Sensor type: | CMOS |
| Signal-to-noise ratio (snr): | 50 dB |
| Signal-to-noise ratio (snr) (panoramic camera): | 50 dB |
| Smart ir: | Yes |
| Storage temperature (t-t): | -30 - 60 °C |
| Supported graphics resolutions: | 1920 x 1080 (HD 1080) |
| Tilt angle range: | 0 - 90° |
| Total megapixels: | 2 MP |
| Type: | IP security camera |
| Video compression formats: | H.264, M-JPEG, H.265 |
| Video formats supported: | H.264+, H.265+ |
| Video motion detection: | Yes |
| Video recording: | Yes |
| Weight: | 380 g |
| White balance: | Auto, Outdoor, Manual, Natural |
| Wi-fi: | No |
| Wide dynamic range (wdr): | Yes |
| Width: | 164.7 mm |
| Zoom capability: | Yes |
