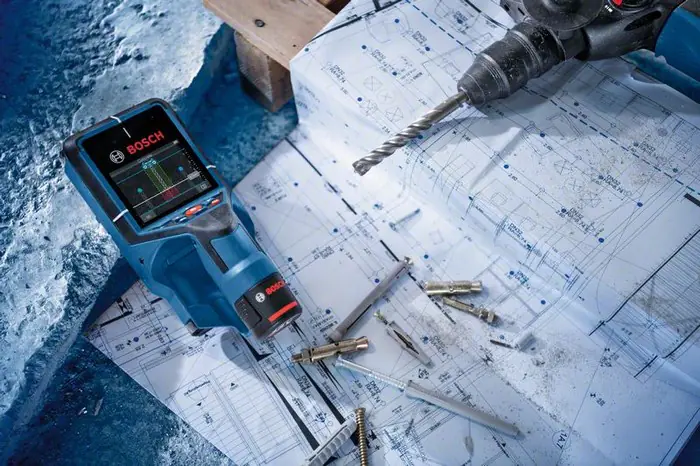

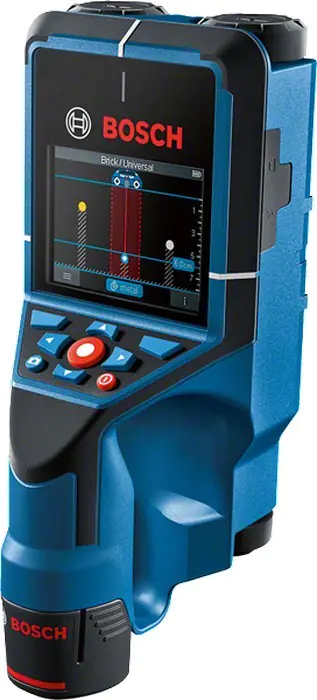

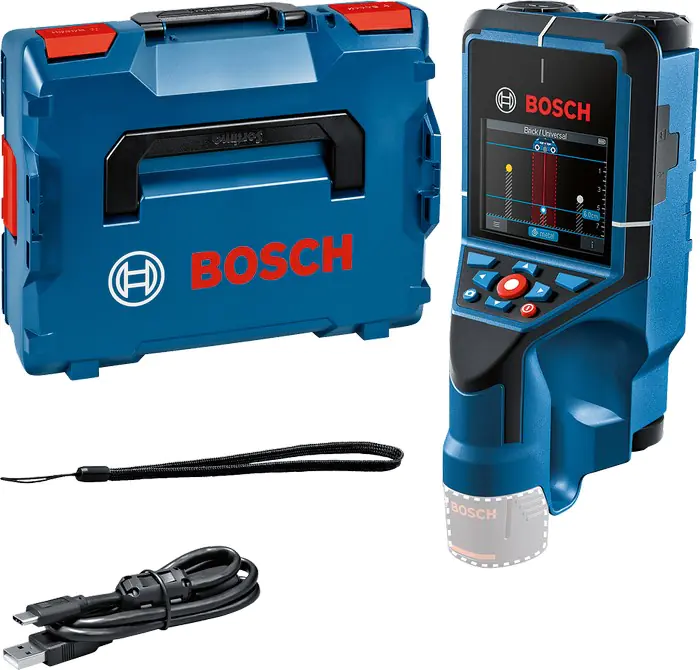

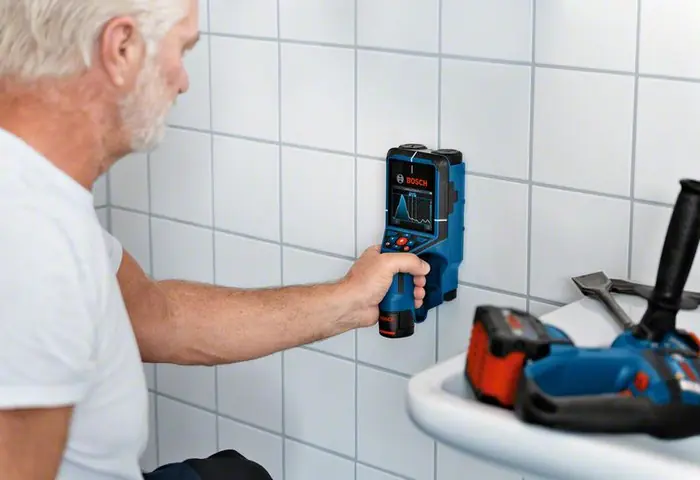

D-TECT 200C 12V L-BOXX DETECTOR

Specifications:

Battery voltage12
Boschtak radar technology

Detected objects:
Magnetic metals (e.g. iron)
Non-magnetic metals (e.g. copper)
Live cables
Electrical wires (non-energized)
Hollow plastic pipes
Pipes, plastic (filled with water)
Wooden structures

Max. detection depth200 mm
Max. detection depth, dry concrete200 mm
Max. detection depth, fresh concrete60 mm
Max. detection depth, other types of walls80 mm
Max. detection depth, wooden structures38 mm

Accuracy: ±5 mm* (*plus additional deviation depending on application)
Views: Object view

Point view:
Signal View 2D
Signal View

Types of walls:
Brick/Universal
Concrete
Drywall
Underfloor heating
Fresh concrete
Brick holey
Brick lattice

Protection against dust and water: IP 5X
Documentation using:
USB-C
SD card

With update: Yes
Material identification:
Live cable
Magnetic metal
Non-magnetic metal
Nonmetal

Power:
12 V Li-Ion battery
4 x 1.5V LR6 (AA) batteries
4 x 1.2V HR06 (AA) batteries
Weight, approx. 0.7 kg

Additional function:
Leak detection, distance measurement

Segments:
Gauges
Construction
For concrete


D-TECT 200C 12V L-BOXX DETECTOR

A detector that delivers exceptional results: highest quality and easy documentation

Benefits for the user
Bosch radar technology and a modern user interface ensure precision, higher safety and clear presentation of detected objects
Different views ensure the best result in different situations

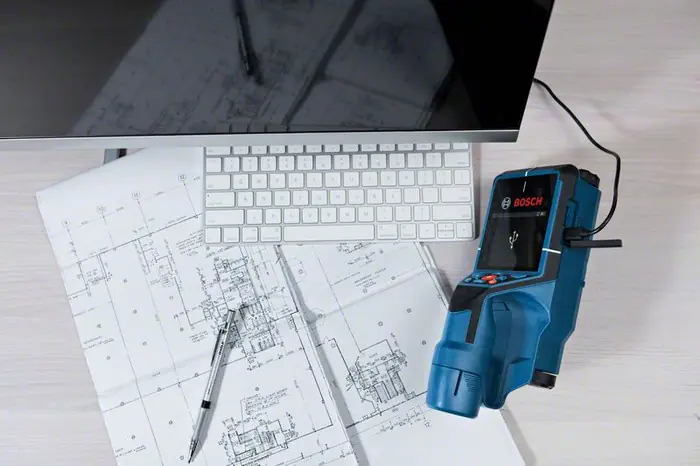

Screenshot function for quick and easy documentation, screenshots can be downloaded via USB-C™ and SD card


**
