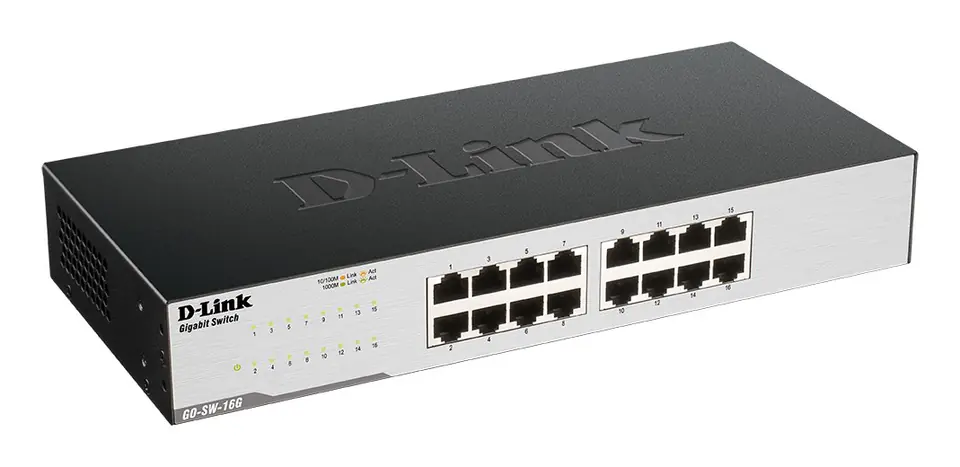

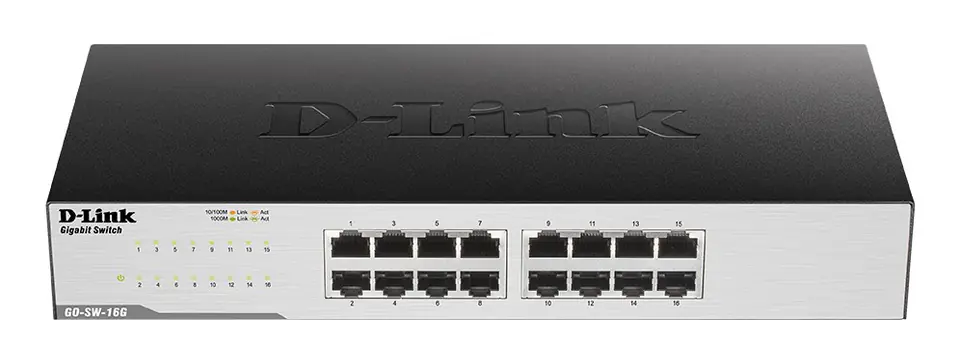

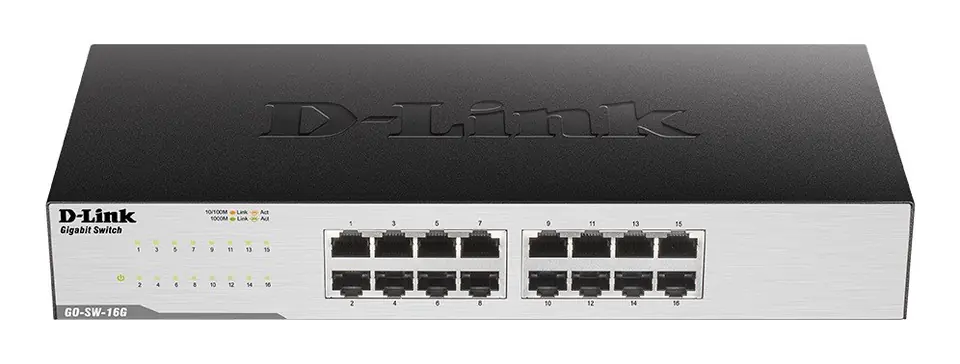

D-LINK GO-SW-16G/E 16x 1GbE Switch
€98.57
Shipping from warehouse: E12
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- GO-SW-16G/E / 0790069396618
Share this product:
Specification
| 10g support: | No |
|---|---|
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 16 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Built-in memory: | 2 MB |
| Bus speed: | 32 Gbps |
| Colour: | Black |
| Copper ethernet cabling technology: | 100BASE-TX, 1000BASE-T, 10BASE-T |
| Dc input voltage: | 12 V |
| Depth: | 126 mm |
| Depth (mm): | 126 |
| Destiny: | Desk |
| Equipment: | Statement |
| Ethernet lan data rates: | 10,100,1000 Mbit/s |
| Flow control support: | Yes |
| Form factor: | 1U |
| Forwarding rate: | 23.81 Mpps |
| Full duplex: | Yes |
| Gigabit ethernet (copper) ports quantity: | 16 |
| Half duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Heat dissipation: | 39.92 BTU/h |
| Height: | 44 mm |
| Height (mm): | 44 |
| Housing material: | Metal |
| Input current: | 1 A |
| Jumbo frame support: | yes |
| Jumbo frames: | 9216 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Mac address array size: | 8000 |
| Mac address table: | 8000 entries |
| Master (outer) cases per pallet (air): | 30 pc(s) |
| Master (outer) cases per pallet (sea): | 30 pc(s) |
| Mean time between failures (mtbf): | 305171 h |
| Method of transmission: | Store and forward |
| Network ports: | 16x 1GbE |
| Networking standards: | IEEE 802.3u, IEEE 802.3az, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x |
| Number of power supply units: | 1 |
| Number of queues: | 8 |
| Operating humidity range (%): | 5 - 90 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Operating temperature range (deg. c): | 0 to 40 |
| Other parameters: | Power LED, Auto MDI/MDIX, 16 Connection/Activity/Speed LED (one per port), Cable length detection, IEEE 802.3az Energy Efficient Ethernet (EEE), Jumbo Frames 9216 B, Maximum heat consumption 30,717 BTU/h, Maximum power consumption 9.00 W, Full connection bandwidth, 32 Gbps switching performance, Connected device status detection |
| Package depth: | 328 mm |
| Package height: | 108 mm |
| Package weight: | 1.45 kg |
| Package width: | 180 mm |
| Packet buffer memory: | 0.512 MB |
| Pallet gross length: | 110 cm |
| Pallet gross weight (air): | 491.5 kg |
| Pallet gross weight (sea): | 491.5 kg |
| Pallet gross width: | 120 cm |
| Pallet height (air): | 2.06 m |
| Pallet height (sea): | 2.06 m |
| Power: | 12 volts DC |

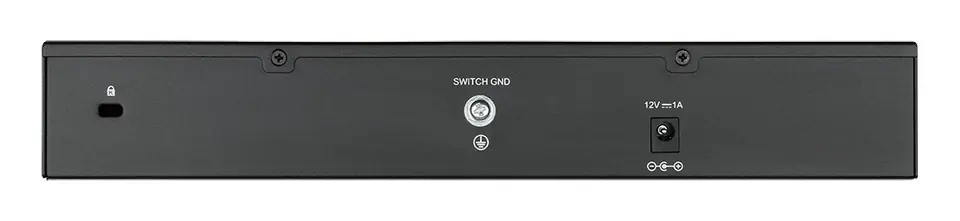

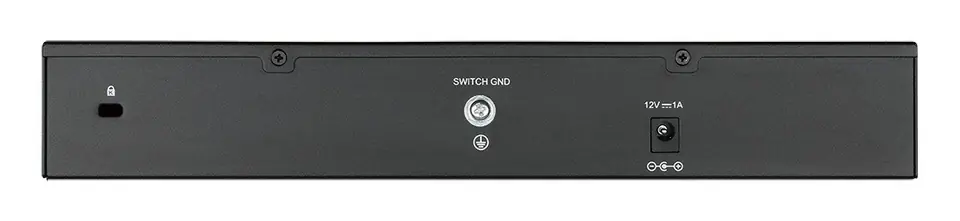

| Power connector: | DC-in jack |
| Power consumption (max): | 11.7 W |
| Power over ethernet (poe): | No |
| Power supply included: | Yes |
| Product colour: | Black |
| Products per pallet (air): | 300 pc(s) |
| Products per pallet (sea): | 300 pc(s) |
| Products per shipping (inner) case: | 10 pc(s) |
| Protocols and standards: | ANSI/IEEE 802.3 NWay auto-negotiation, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Quality of service (qos) support: | Yes |
| Rack mounting: | Yes |
| Redundant power supply (rps) support: | No |
| Shipping (inner) case gross weight: | 15.6 kg |
| Shipping (inner) case height: | 38.4 cm |
| Shipping (inner) case length: | 56.9 cm |
| Shipping (inner) case net weight: | 15 kg |
| Shipping (inner) case width: | 34 cm |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -40 - 70 °C |
| Store-and-forward: | Yes |
| Switch layer: | L2 |
| Switch type: | Unmanaged |
| Switching capacity: | 32 Gbit/s |
| Switching layer: | 2 |
| Throughput: | 3200 Mbps |
| Warranty: | 2 years |
| Weight: | 870 g |
| Weight (g): | 580 |
| Width: | 280 mm |
| Width (mm): | 280 |
