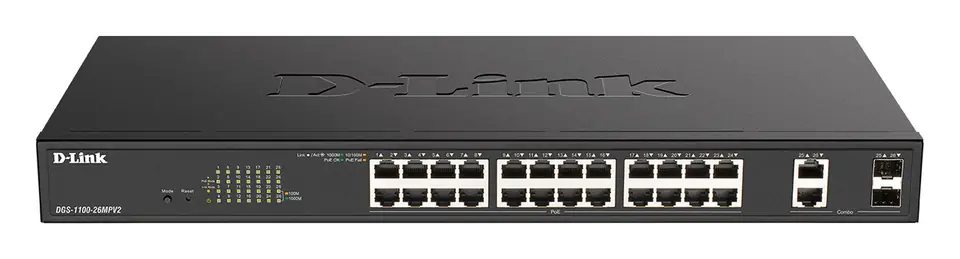

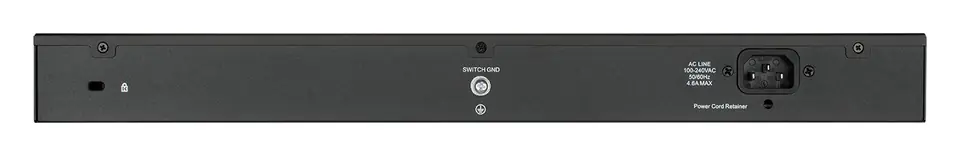

D-Link DGS-1100-26MPV2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet PoE) Blac
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- DGS-1100-26MPV2 / 0790069453342
Share this product:
Specification
| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Ac input voltage: | 100 - 240 V |
| Arp inspection: | Yes |
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control: | Yes |
| Combo sfp ports quantity: | 2 |
| Copper ethernet cabling technology: | 10GBASE-T, 1000BASE-T |
| Depth: | 208 mm |
| Dhcp features: | DHCP client |
| Fanless: | Yes |
| Flash memory: | 16 MB |
| Flow control support: | Yes |
| Forwarding rate: | 38.69 Mpps |
| Full duplex: | Yes |
| Half duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Head-of-line (hol) blocking: | Yes |
| Heat dissipation: | 287 BTU/h |
| Height: | 44 mm |
| Housing material: | Metal |
| Igmp snooping: | Yes |
| Ipv4 & ipv6 features: | IPv4 FIB |
| Ipv4 multicast entries: | 1 |
| Ipv6 multicast entries: | 1 |
| Jumbo frames support: | Yes |
| Link aggregation: | Yes |
| Mac address filtering: | Yes |
| Mac address table: | 8000 entries |
| Mtbf (poe): | 317.777 h |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.3at, IEEE 802.3af, IEEE 802.1w, IEEE 802.1D |
| Noise level: | 50.5 dB |
| Number of multicast groups filtered: | 1 |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | -10 - 50 °C |
| Port mirroring: | Yes |
| Power consumption (max): | 454.1 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) ports quantity: | 24 |
| Power over ethernet plus (poe+) ports quantity: | 24 |
| Power supply included: | Yes |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Rack mounting: | Yes |
| Rate limiting: | Yes |
| Security algorithms: | SSL/TLS |
| Spanning tree protocol: | Yes |
| Static port security: | Yes |
| Storage relative humidity (h-h): | 0 - 95% |
| Storage temperature (t-t): | -40 - 70 °C |
| Switch layer: | L2 |
| Switch type: | Managed |
| Switching capacity: | 52 Gbit/s |
| Total power over ethernet (poe) budget: | 370 W |
| Virtual lan features: | Voice VLAN, Port-based VLAN |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Weight: | 2.8 kg |
| Width: | 440 mm |
