Transceiver SFP+ 10GBASE-SR DEM-431XTDesigned to support distances up to 300 metres, the DEM-431XT is a high performance 850nm Multi-Mode SFP+ transceiver. Supporting Full-duplex, 10 Gigabit speeds on Multi-Mode fibre cables. The DEM-431XT is 802.3ae 10GBASE-SR compliant and supports Full-duplex 802.3x Flow control. The DEM-431XT provides the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa.

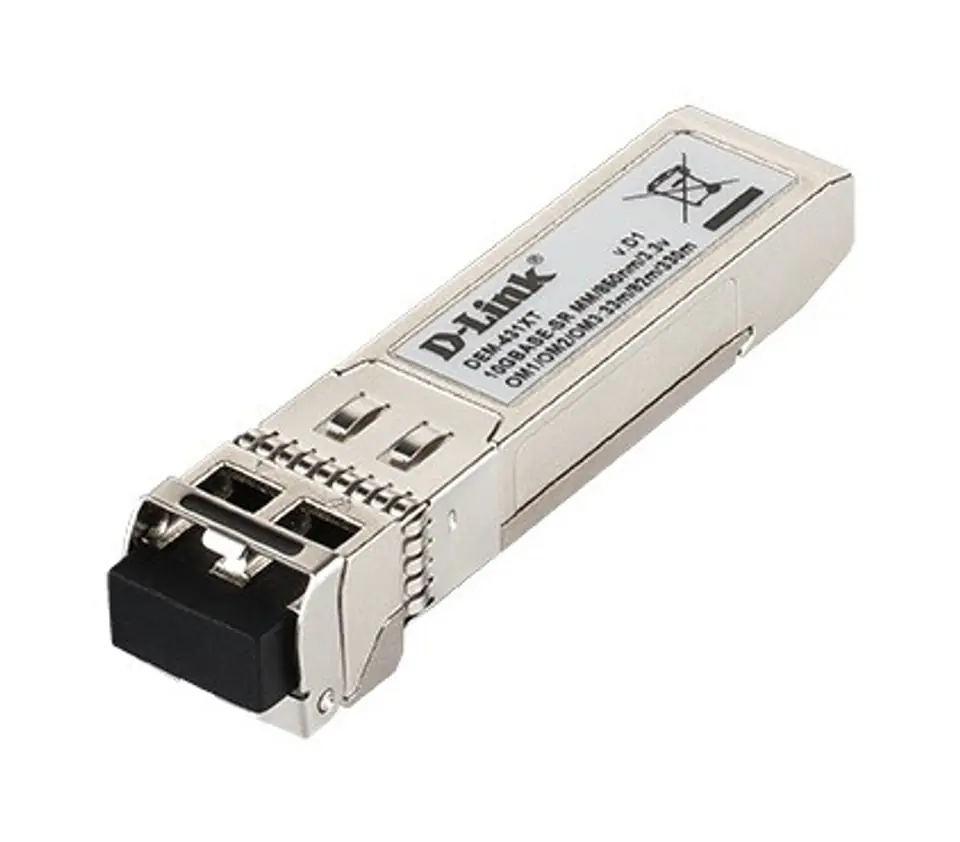

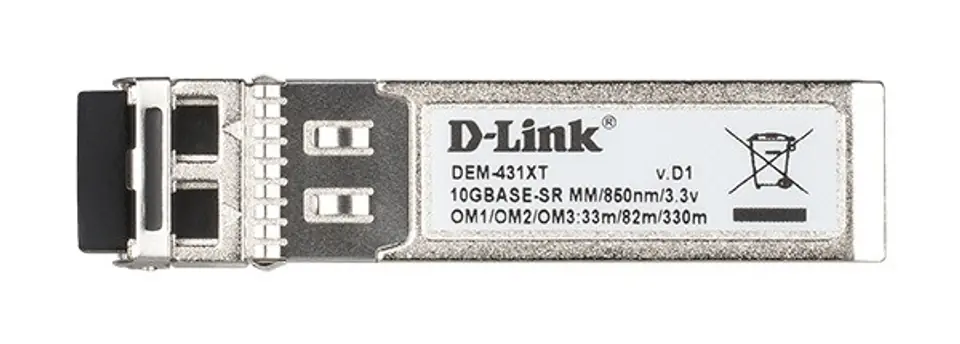

D-Link DEM-431XT network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm
PLN 597.84
Shipping from warehouse: A3
Estimated shipping: Tue, Nov 4 - Fri, Nov 7
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- DEM-431X / 0790069353130
Share this product:
Specification
| Depth: | 11.8 mm |
|---|---|
| Fiber cable diameters supported (core/cladding): | 62.5/125 µm, 50/125 |
| Fiber optic connector: | LC |
| Harmonized system (hs) code: | 85369010 |
| Height: | 56.5 mm |
| Interface type: | SFP+ |
| Master (outer) cases per pallet (air): | 60 pc(s) |
| Master (outer) cases per pallet (sea): | 60 pc(s) |
| Maximum current: | 300 A |
| Maximum data transfer rate: | 10000 Mbit/s |
| Maximum transfer distance: | 300 m |
| Maximum voltage: | 3.3 V |
| Multi-mode fiber (mmf) supported: | Yes |
| Networking standards: | IEEE 802.3ae |
| Operating relative humidity (h-h): | 5 - 85% |
| Operating temperature (t-t): | 0 - 70 °C |
| Package depth: | 131 mm |
| Package height: | 49 mm |
| Package weight: | 64 g |
| Package width: | 74 mm |
| Pallet gross length: | 102 cm |
| Pallet gross weight (air): | 272 kg |
| Pallet gross weight (sea): | 272 kg |
| Pallet gross width: | 122 cm |
| Pallet height (air): | 199 cm |
| Pallet height (sea): | 199 cm |
| Products per pallet (air): | 3000 pc(s) |
| Products per pallet (sea): | 3000 pc(s) |
| Products per shipping (inner) case: | 50 pc(s) |
| Rx power (max): | -1 dBmW |
| Rx power (min): | -11.1 dBmW |
| Safety: | UL, TUV, CDRH |
| Sfp transceiver type: | Fiber optic |
| Shipping (inner) case gross weight: | 4.2 kg |
| Shipping (inner) case height: | 31 cm |
| Shipping (inner) case length: | 36 cm |
| Shipping (inner) case net weight: | 3.2 kg |
| Shipping (inner) case width: | 26 cm |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -40 - 85 °C |
| Sustainability certificates: | RoHS |
| Tx power (max): | -1 dBmW |
| Tx power (min): | -6.5 dBmW |
| Wavelength: | 850 nm |
| Weight: | 18 g |
| Width: | 14.8 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
