PIR curtain detector with anti-masking and animal resistance for indoor/outdoor applications
CURTAIN PIR DETECTOR NV-37M PARADOX
€54.70
Shipping from warehouse: D4
Estimated shipping: Mon, Dec 1 - Thu, Dec 4
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- NV37M-P2C / 5902887069635
Share this product:
Specification
| Alarm outputs:: | NC |
|---|---|
| Animal resistance:: | ≤ 50 cm / ≤ 40 kg |
| Colour:: | white |
| Country of origin:: | Canada |
| Detection angle:: | ~ 12° |
| Dimensions:: | 42 x 123 x 62 mm |
| Environmental class:: | Class IV |
| Led signaling:: | Green - Tamper protection Red - Alarm signal Orange |
| Manufacturer / brand:: | PARADOX |
| Maximum current consumption:: | 19.2 mA |
| Operating temperature:: | -35 °C ... 60 °C |
| Power:: | 10 ... 15 VDC |
| Pyroelement:: | Double |

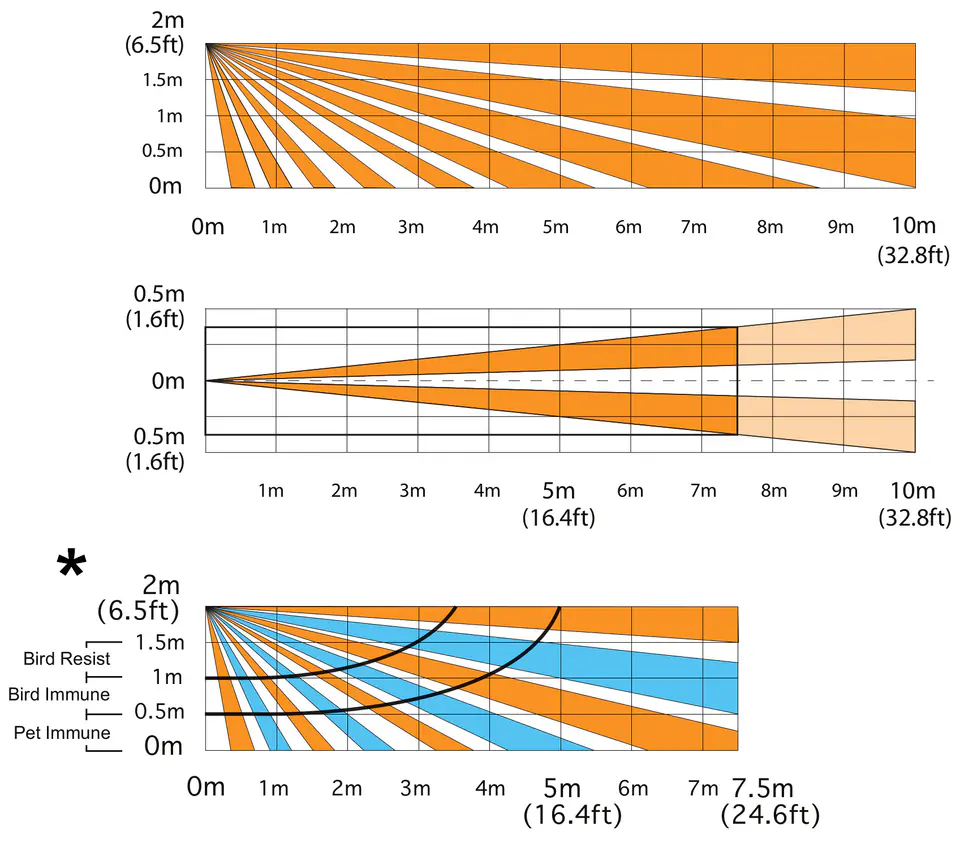

| Range:: | 7.5 x 2 m - PET mode 10 x 2 m - SHARP mode |
| Recommended mounting height:: | 2 m |
| Scales:: | 0.098 kg |
| Selected features:: | Patented active "Anti-masking" technology ( Detection < 30 cm ) Ochrona antysabotażowa (detekcja oderwania od podłoża oraz otwarcia obudowy) Odporność na zmiany warunków środowiskowych Kontrola strefy podejścia Tryb testowy Klasa szczelności - IP54 EN 50131-2-2 III klasa zabezpieczenia |
| Sensitivity adjustment:: | 3-step |
| Sensor type:: | Passive infrared (PIR) |
| Use:: | External / Internal |
| Violation signaling time:: | 2 sec |
| Warranty:: | 2 years |
