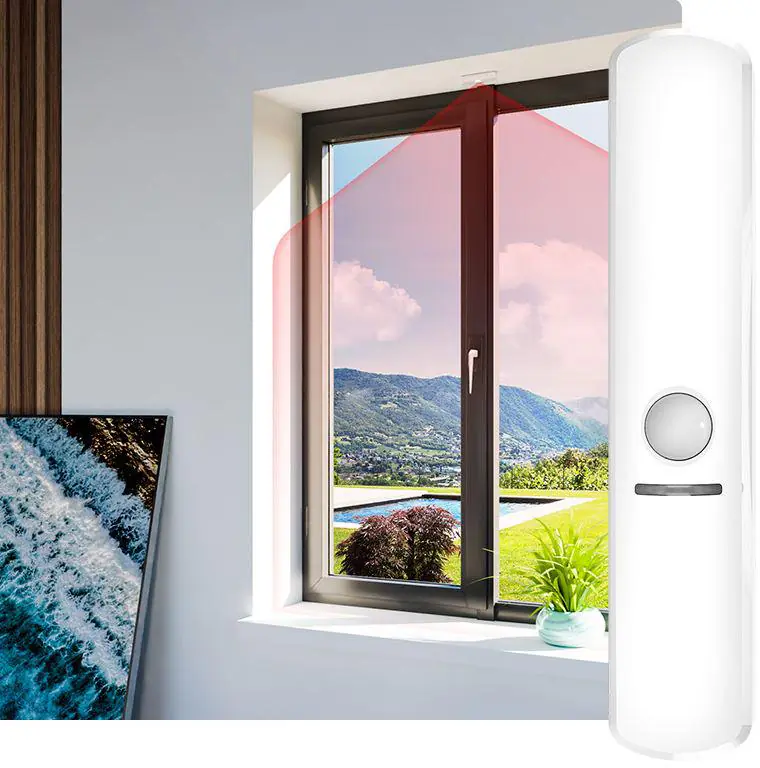

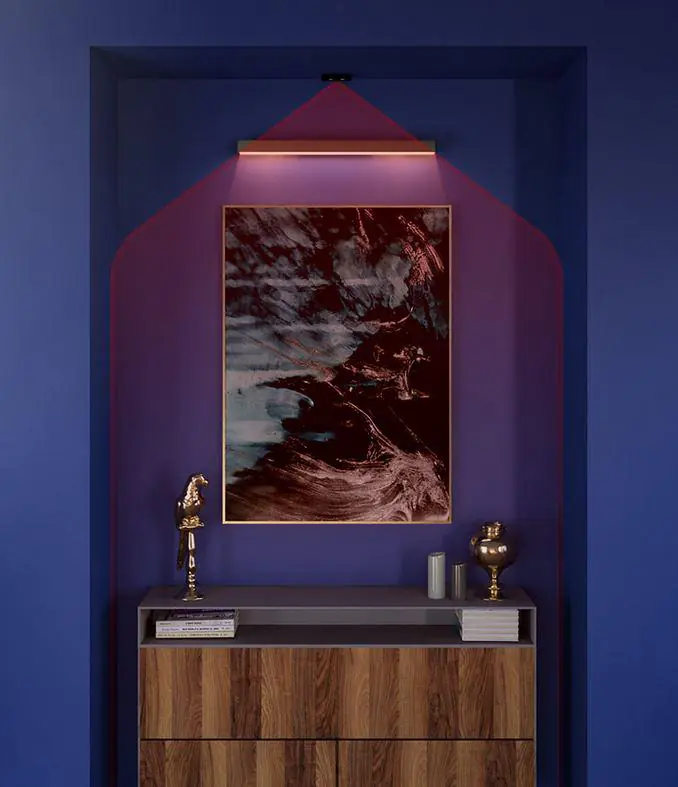

Curtain detector provides a narrow detection angle

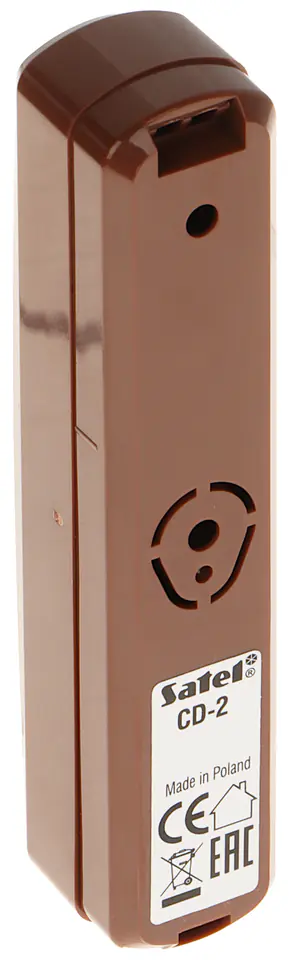

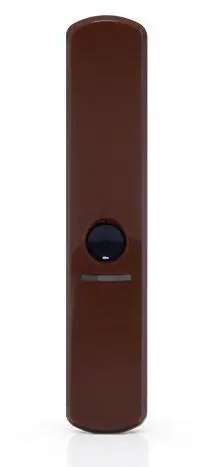

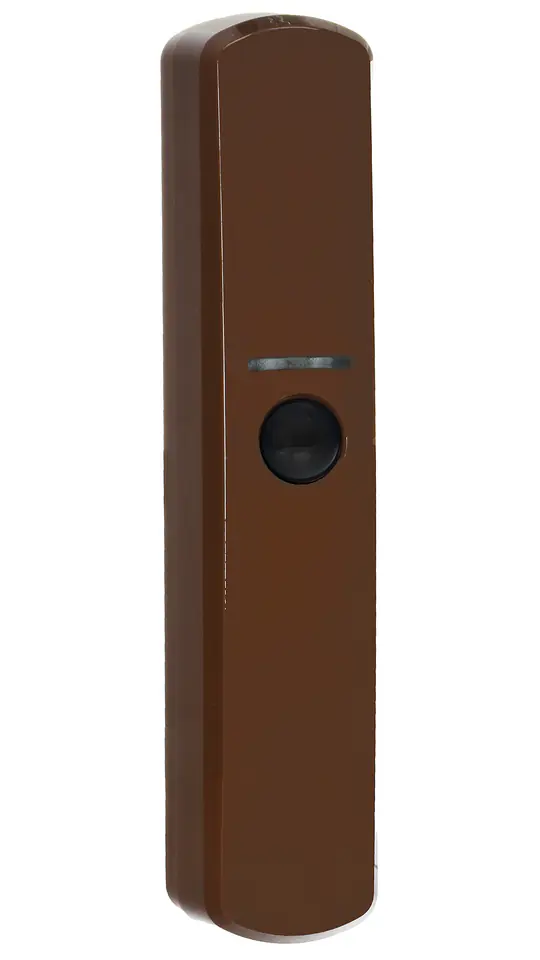

CURTAIN PIR DETECTOR CD-2-BR SATEL
€22.33
Shipping from warehouse: N7
Estimated shipping: Thu, May 9 - Tue, May 14
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- CD-2-BR / 5905033333888
Share this product:
Specification
| Alarm outputs:: | NC |
|---|---|
| Colour:: | brown |
| Detectable movement speed:: | 0.3 ... 1 m/s |
| Dimensions:: | 105 x 25 x 20 mm |
| Manufacturer / brand:: | SATEL |
| Maximum load on outputs:: | 40 mA / 24 VDC |
| Operating temperature:: | -10 °C ... 55 °C |
| Power:: | 12 V DC / 7 mA (max) |
| Pyroelement:: | Double |

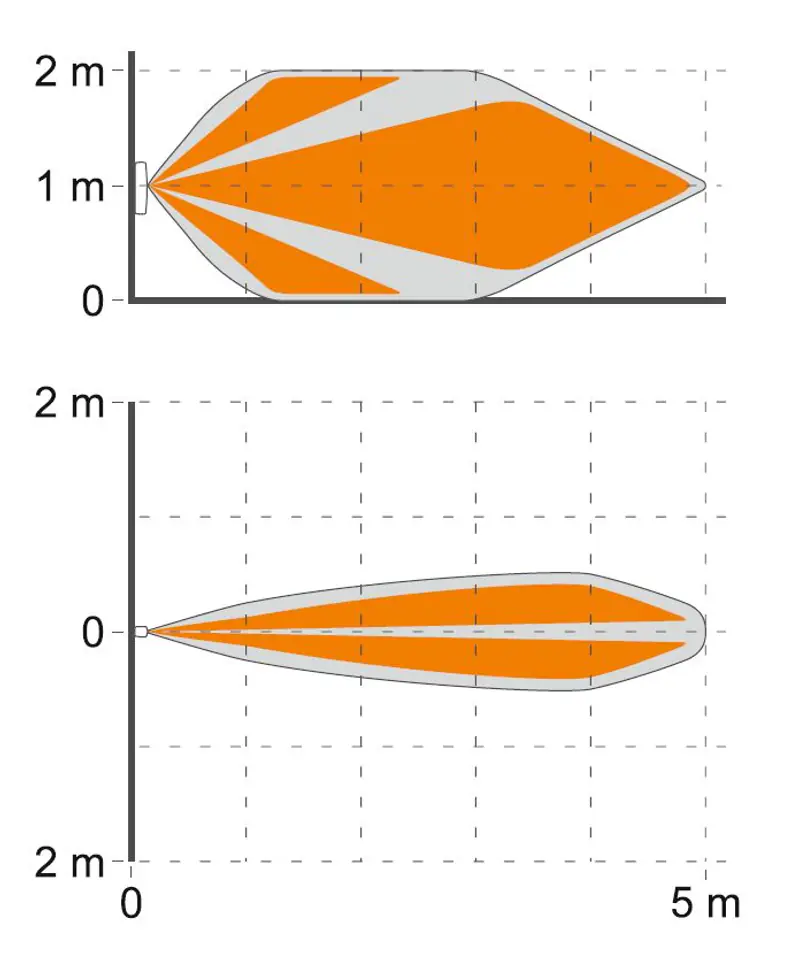

| Range:: | 5 x 1 m, 15 ° |
| Scales:: | 0.022 kg |

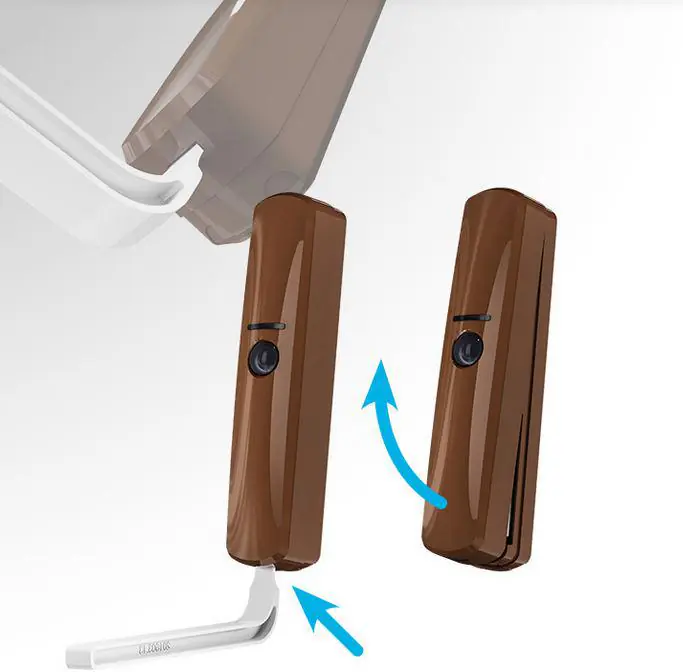

| Selected features:: | Curtain lens digital detection algorithm with temperature compensation, ensuring high resistance to false alarms and repeatability of parameters Supervision of the motion detection system Supervision of supply voltage Detection detection Detection of sabotage - opening of the housing, detachment from the ground LED signaling Compliance with standards EN 50130-4, EN 50130-5 Environmental class EN 50130-5 : II |
| Sensor type:: | Passive infrared (PIR) |
| Use:: | Internal |
| Violation signaling time:: | 2 sec |
| Warranty:: | 2 years |
