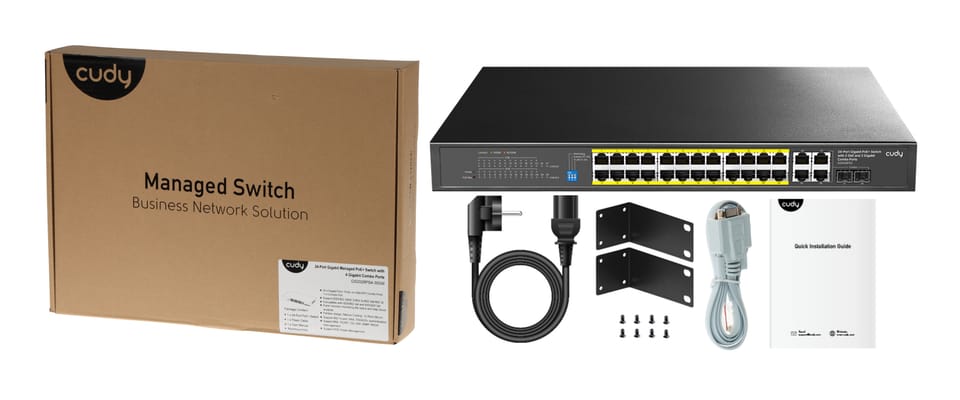

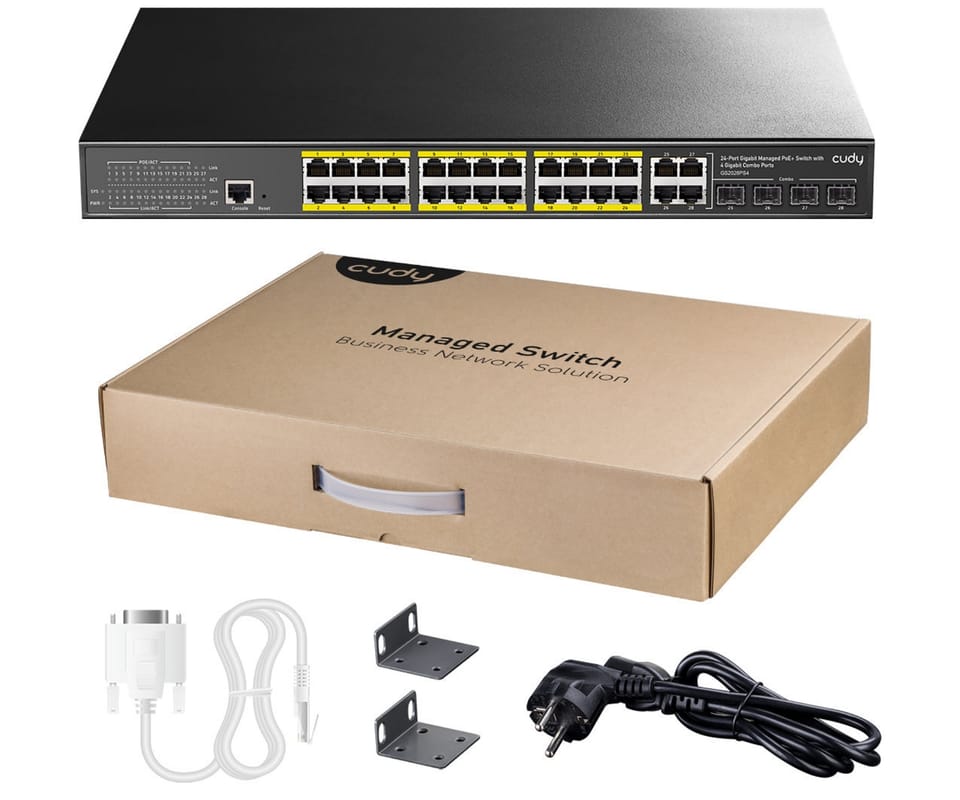

Cudy GS2028PS4 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
€303.28
Shipping from warehouse: D4
Estimated shipping: Fri, Dec 19 - Mon, Dec 22
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Cudy
- Product code:
- GS2028PS4-300W / 6971690791957
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Authentication: | Port-based authentication |
| Authentication type: | IEEE 802.1x, TACACS+ |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control: | Yes |
| Cable length detection: | Yes |
| Cable types supported: | Cat3, Cat6, Cat5, Cat5e, Cat4 |
| Combo sfp ports quantity: | 4 |
| Console port: | RJ-45 |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Dc input voltage: | 52 V |
| Depth: | 445 mm |
| Fanless: | Yes |
| Fiber type: | Multi-mode |
| Flash memory: | 16 MB |
| Flow control support: | Yes |
| Form factor: | 1U |
| Forwarding rate: | 41.66 Mpps |
| Garp vlan registration protocol (gvrp): | Yes |
| Gigabit ethernet (copper) ports quantity: | 24 |
| Height: | 45 mm |
| Housing material: | Metal |
| Igmp snooping: | Yes |
| Internal memory: | 128 MB |
| Ip-mac-port binding: | Yes |
| Led indicators: | Power, Link, System, Activity |
| Link aggregation: | Yes |
| Mac address auto-aging supported: | Yes |
| Mac address auto-learning supported: | Yes |
| Mac address table: | 8000 entries |
| Management protocols: | SSHv1/2, SNMP V1/V2/V3, RMON v1 |
| Maximum transfer distance (multi-mode): | 2000 m |
| Maximum transfer distance (single-mode): | 120000 m |
| Multicast features: | Multicast traffic suppression |
| Multicast listener discovery (mld) snooping: | v1/2/3 |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.3u, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.3x |
| Non-operating altitude: | 0 - 3048 m |
| Number of vlans: | 4096 |
| Operating altitude: | 0 - 3048 m |
| Operating relative humidity (h-h): | 10 - 95% |
| Operating temperature (t-t): | -20 - 55 °C |
| Package depth: | 470 mm |
| Package height: | 120 mm |
| Package width: | 350 mm |
| Packet buffer memory: | 4 MB |
| Port mirroring: | Yes |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet (poe) voltage: | 55 V |
| Power source: | AC |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Queue scheduling algorithms: | Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Rack mounting: | Yes |
| Rate limiting: | Yes |
| Spanning tree protocol: | Yes |
| Ssh/ssl support: | Yes |
| Storage temperature (t-t): | -40 - 85 °C |
| Store-and-forward: | Yes |
| Surge protection: | Yes |
| Surge protection voltage: | 15 kV |
| Switch layer: | L2 |
| Switch type: | Managed |
| Switching capacity: | 56 Gbit/s |
| System event log: | Yes |
| Total power over ethernet (poe) budget: | 300 W |
| Transmission distance (max): | 120 km |
| Uplink ports quantity: | 4 |
| Virtual lan features: | Voice VLAN, MAC address-based VLAN |
| Vlan support: | Yes |
| Wavelength: | 1550 nm |
| Web-based management: | Yes |
| Width: | 285 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
