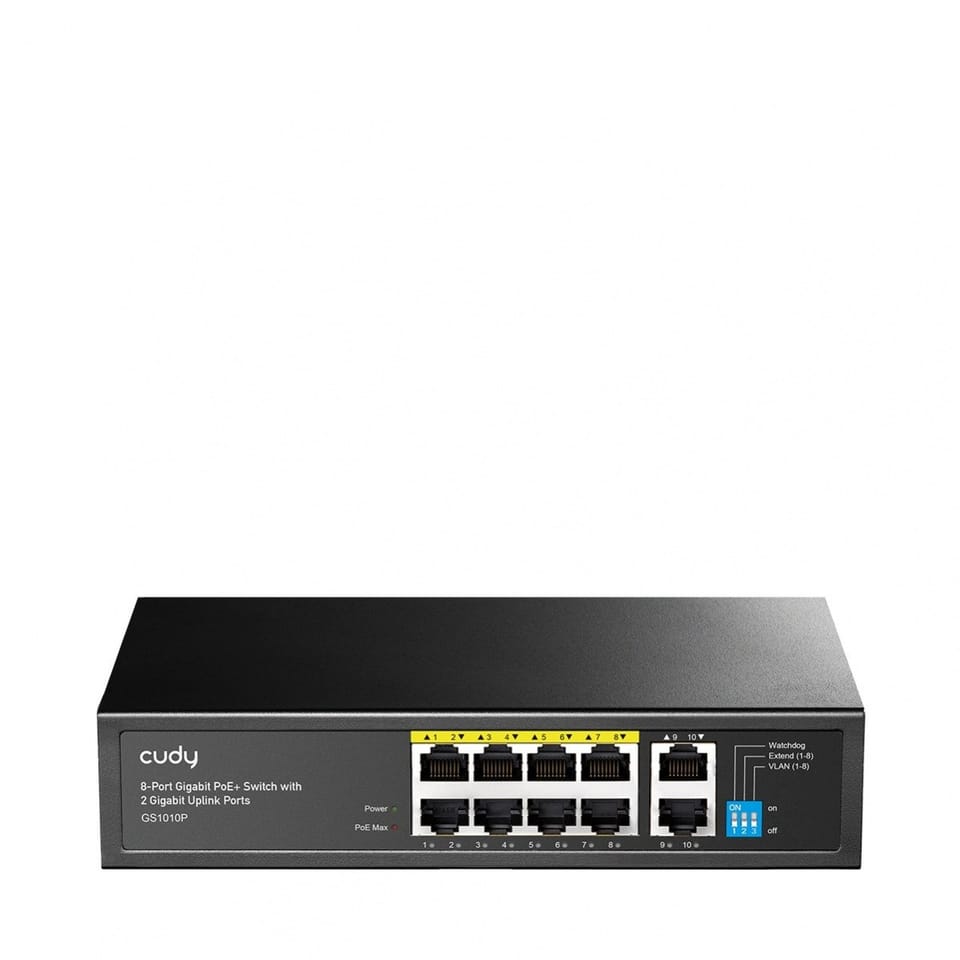

GS1010P Switch

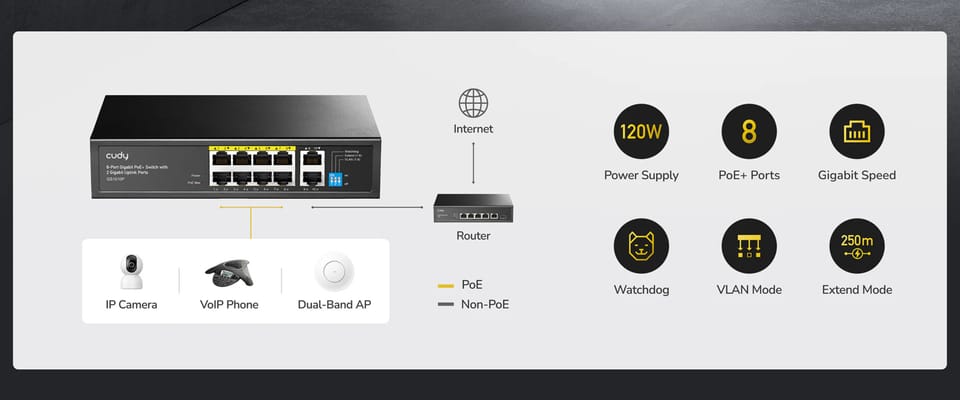

IEEE 802.3at/af - Up to 30 W per port Each PoE port delivers up to 30 W, making it suitable for access points, IP cameras, digital signage systems, and most other PoE devices.
Automatic PoE Recovery Enable the Watchdog function to monitor port activity. If a connected device hangs and stops transmitting data for 5 minutes, Watchdog will automatically restart the corresponding PoE port.
VLAN isolates downlink ports for enhanced security Enable VLAN mode to prevent client-side intrusions and data leakage. Downlink clients can communicate only with uplink devices.
250 m Transmission Extension For long-distance networks, enable Extend mode to connect clients up to 250 meters away, limiting port speed to 10 Mb/s.
Build robust systems with exceptional electromagnetic compatibility (EMC) Improves service reliability and reduces downtime caused by power surges and electrostatic discharge (ESD).
- ESD: Contact 6 kV; Air 8 kV
- Surge protection: Power DM 2 kV, CM 4 kV; RJ45 CM 4 kV
- Shielded ports and sturdy metal housing
Ensures stable operation with nickel-plated copper alloy shielded Ethernet ports and a solid SPCC metal enclosure.
