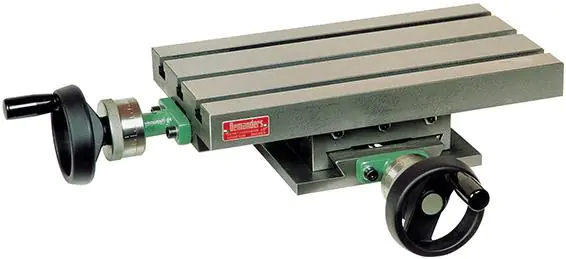

Cross table with dovetail-shaped guide
Made of: special cast iron, clamping surfaces and grinded guides. The flat accuracy is 0.03 mm, the stroke accuracy per 100 mm is 0.01 mm. Guides with a dovetail cross-section can be adjusted using guide strips. Trapezoidal threaded vortex spindle with axial bearings. Scale drum with zero point adjustment – can be read directly without conversion. Graduated by 0.05 mm.
Tables from 450 x 240 mm are equipped with a water trough and a clamping lever in both axes, so they can be locked in any position.
Application: for use on drills and for light milling work.
Note: other models and dimensions available on request.
