CROSS LASER GREEN 10.8V 0*AH

Technical Specifications

Manufacturer: Makita
Manufacturer no: SK105GDZ
System: CXT 10.8/12V Max CXT
Supply voltage (V): 10.8 / 12V Max
Battery Type: Li-ion
Laser source:semiconductor laser (green)
Laser Type:525nm, < 1mW
Laser class: 2
Number of laser lines: 2
Working range:
up to 35 m indoors depending on the light
up to 80 m with a detector
Direction:vertical, horizontal
Angular span of the beam:
Vertical: 160°
Horizontal: 180°
Self-leveling accuracy: ±3mm / 10m
Self-levelling range: ±4°
Stabilization method: Gimbal mechanism
Brightness Adjustment:2 step (Operating modes: ECO mode, bright mode)
Beam width: 2 mm over a distance of 5 m
Operating time on a single battery charge (in high brightness mode):
Battery 1.5Ah (BL1015 / BL1016) (h): 7
Rechargeable battery 2.0Ah (BL1020B / BL1021B) (h): 10
Battery 4.0Ah (BL1040B / BL1041B) (h): 20
Dimensions (L x W x H) (mm): 157 x 64 x 102
Weight (EPTA) (kg): 0.48 - 0.85
Operating temperature (°C): -10 to +50
Protection class:XPT (increased resistance to dust and moisture)
Tripod / pole mount type: 1/4"
Tripod / pole mount type using included bracket: 1/4" and 5/8"




Cross laser green 10.8V 0*Ah

Cross-laser (green) powered by 10.8 V battery (12 V Max)
XPT technology - increased resistance to dust and moisture
CXT - Compact eXtreme Technology
3 laser beam selection modes (switchable by switch):
Horizontal / vertical line
Horizontal line
Vertical line
High-brightness laser for better visibility when working in bright areas
Possibility of cooperation with the receiver
2 brightness adjustment modes: eco mode and light mode
Possibility of powering the device with 18 V Li-Ion batteries using the ADP05 adapter
The operating time with 4.0Ah battery (BL1040B / BL1041B) at maximum load is approx. 20 hours

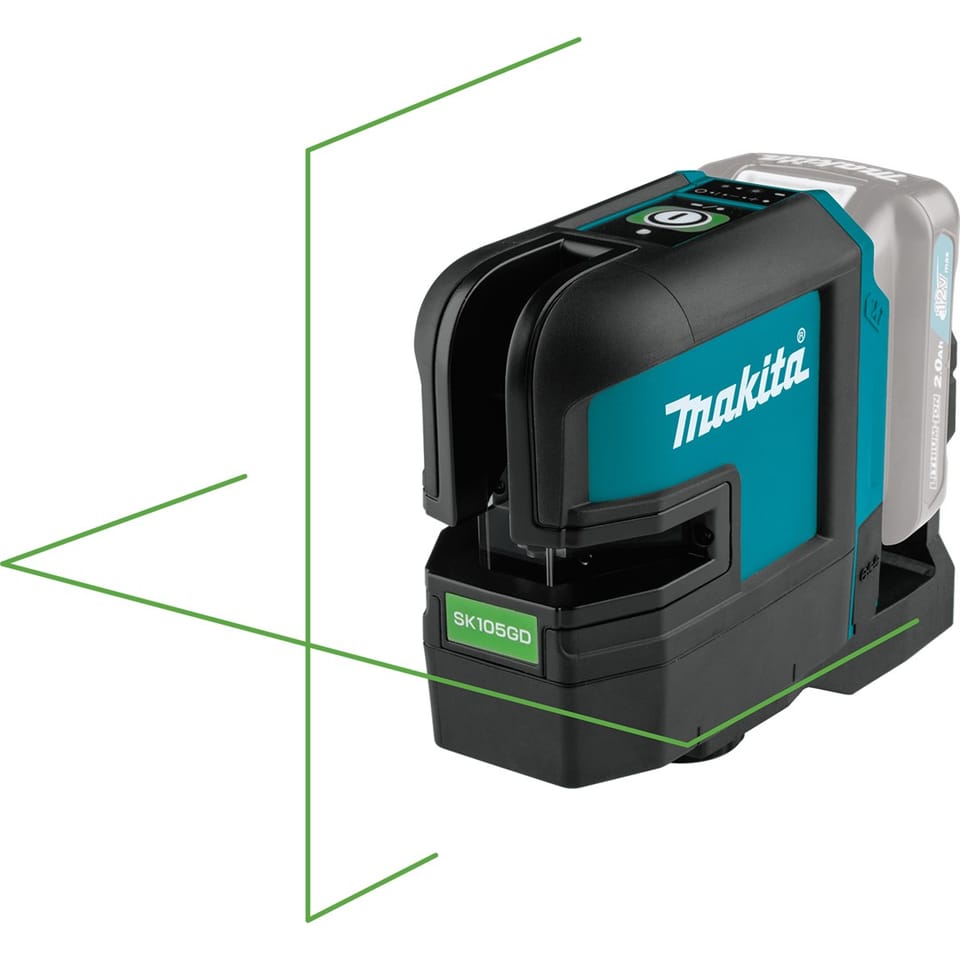

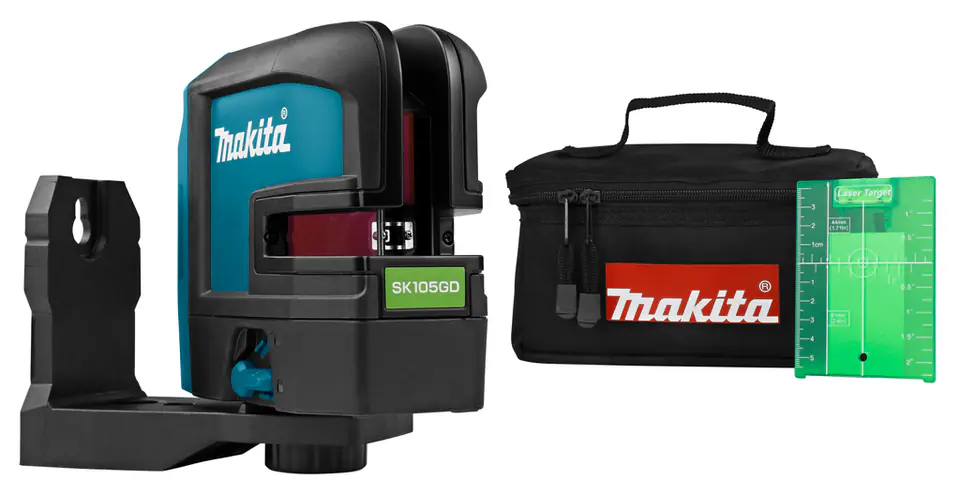

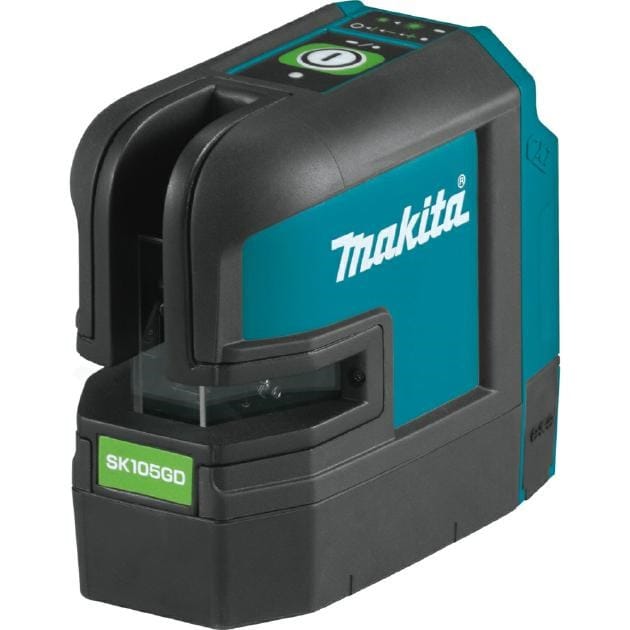

Cross-laser SK105GDZ

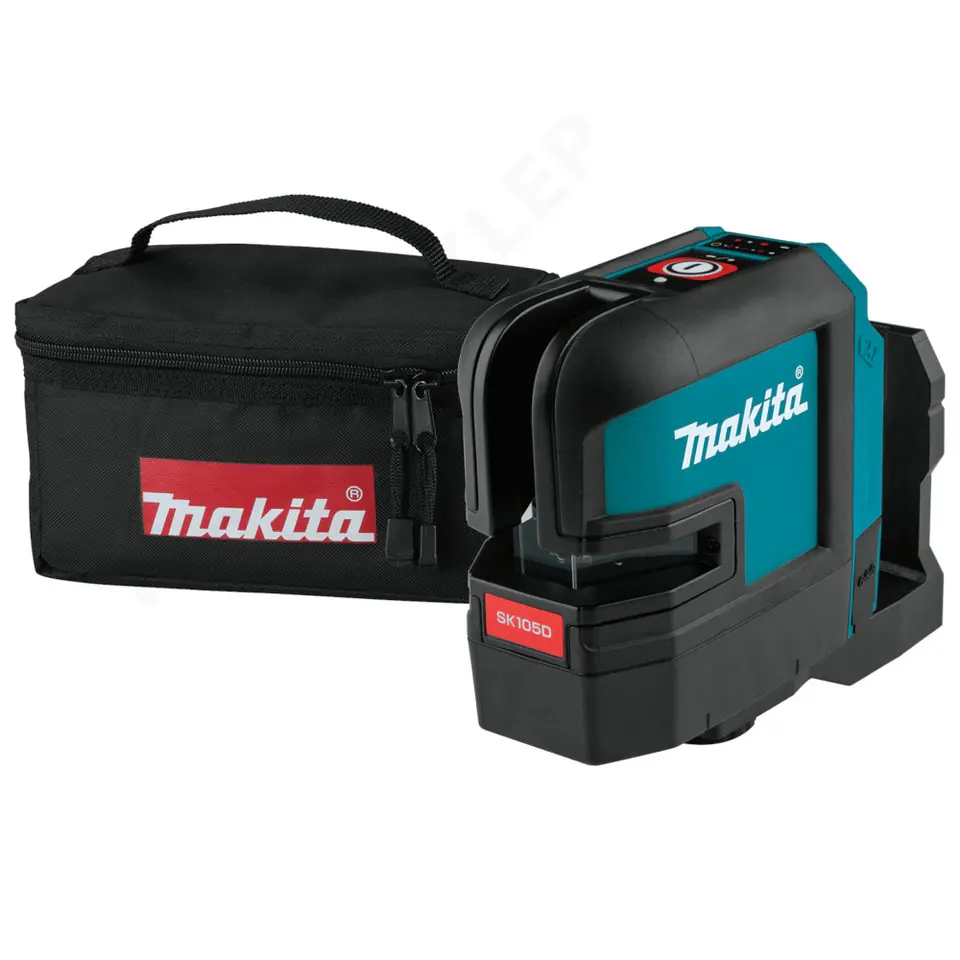

Transport bag made of soft material
Wall mount

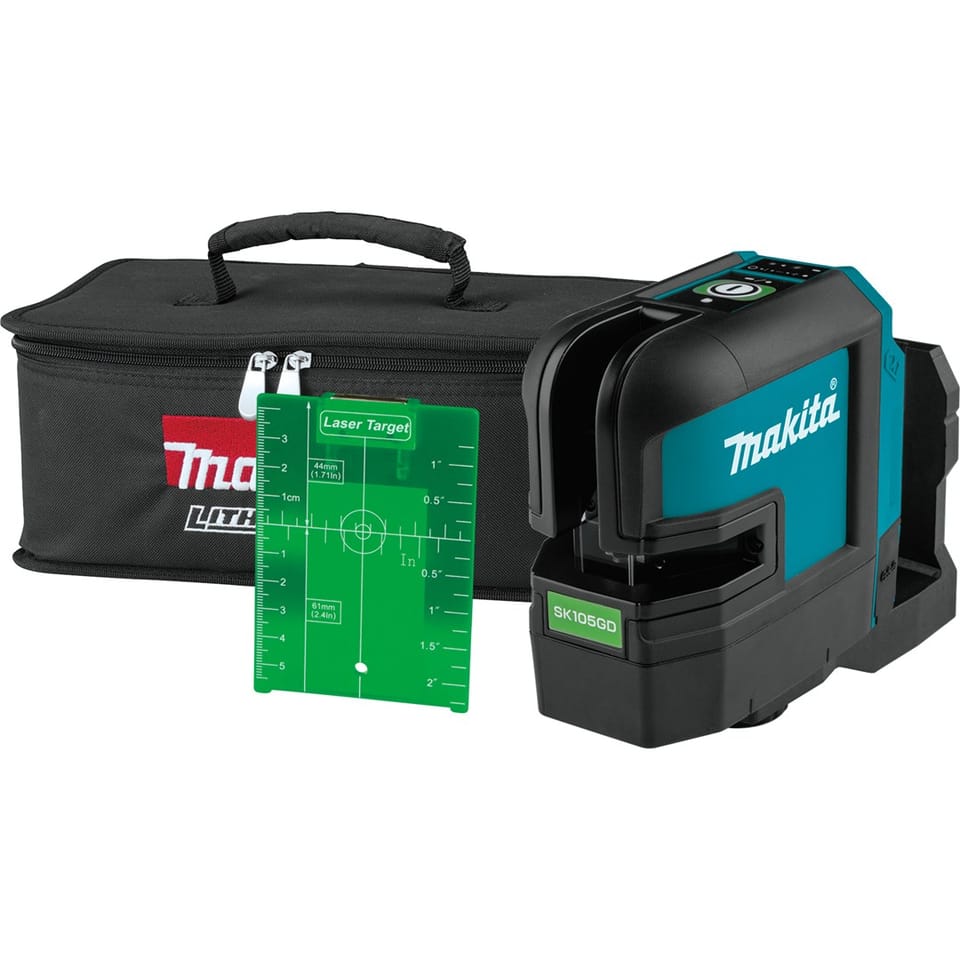

Sight plate

**

Illustrative photos
