Specifications:
Operating temperature: -10 – 45 °C
Storage temperature: -20 – 70 °C
Laser class: 2
Working range: up to 15 m
Operating range with receiver: up to 50 m
Levelling accuracy: ± 0.3 mm/m* (*plus additional deviation depending on application)
Max. working range of laser points: 10 m
Auto-leveling range: ± 4°
Levelling time: 4 s
Protection against dust and water: IP 64
Power supply: 4 x 1.5V LR6 (AA) batteries
Tripod thread: 1/4"
Weight, Approx.: 0.58 kg
Laser beam color: green
Welding site color: green
Projection: 2 lines / 2 points
Perpendicular point accuracy: ± 0.7 mm/m* (*plus additional deviation depending on application)
Compatible laser receivers: LR 7

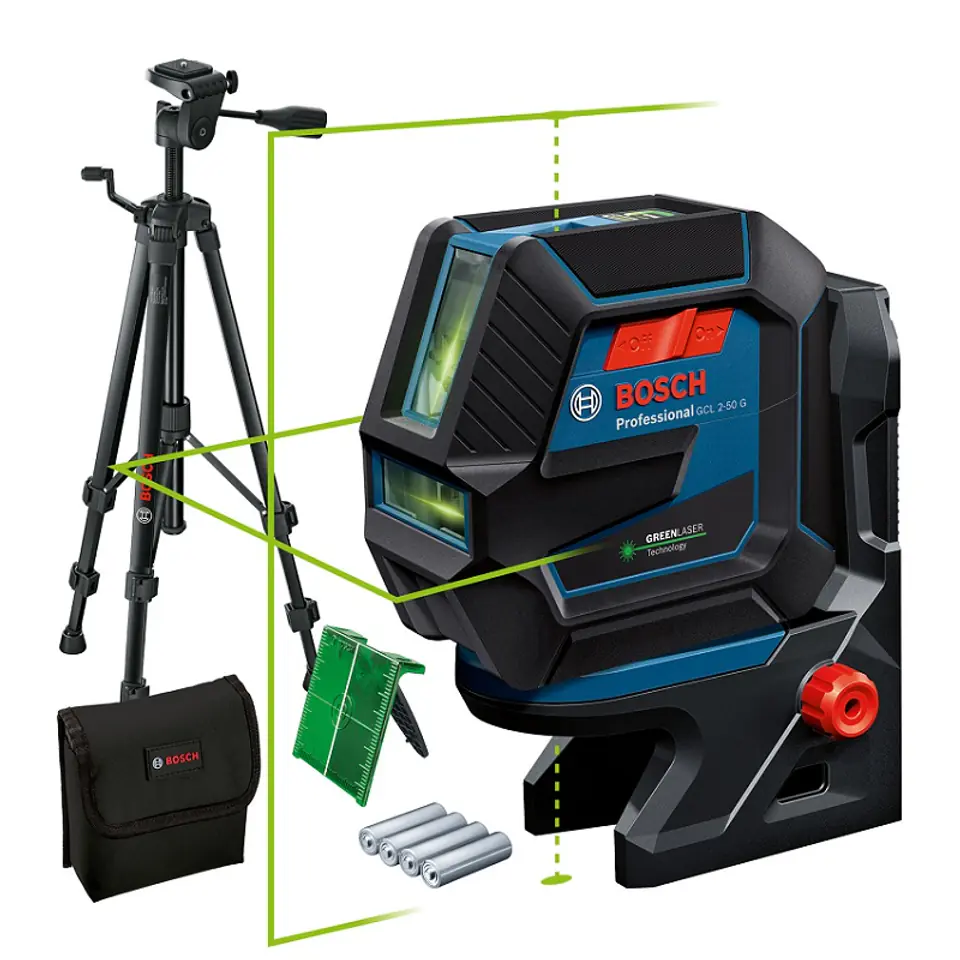

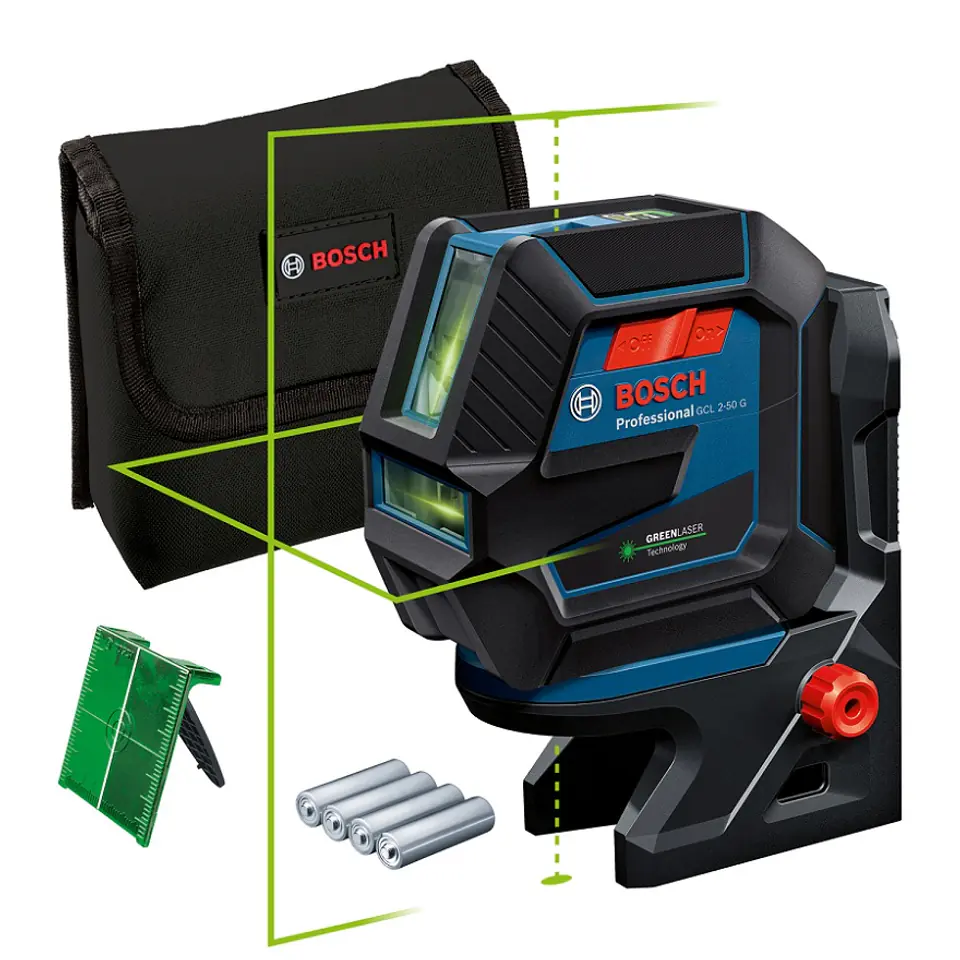

Cross laser GCL 2-50G green+BT150+RM10
Durable and easy operation. Green laser lines and green points vertically
Rugged construction with rubber-coated casing and recessed glass elements and IP 64 dust and splash water protection withstand harsh operating conditions
On/OFF switch and one operating button for ease of use
Green laser lines and green vertical points provide better visibility.
Laser sight board
Construction tripod BT 150 Professional
0 601 096 B00
Handbag
Swivel torch RM 10 Professional
0 601 092 A00
4 x 1.5V LR6 (AA) batteries
**
Illustrative photos
CROSS LASER GCL 2-50 G GREEN+BT 150+RM 10
€340.59
Shipping from warehouse: U1
Estimated shipping: Tue, Apr 30 - Fri, May 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- 0601066M01 / 4059952511092
Share this product:
Specification
| Battery included: | Yes |
|---|---|
| Battery type: | AA |
| Battery voltage: | 1.5 V |
| Colour of laser beam: | Green |
| International protection (ip) code: | IP64 |
| Laser class: | 2 |
| Leveling time: | 4 s |
| Levelling accuracy (±): | 0.3 mm/m |
| Maximum range: | 15 m |
| Maximum range (with receiver): | 50 m |
| Number of batteries included: | 4 pc(s) |
| Number of batteries supported: | 4 |
| Number of laser lines: | 2 |
| Number of laser points: | 2 |
| Operating temperature (t-t): | -10 - 45 °C |
| Pouch: | Yes |
| Power source: | Battery |
| Product colour: | Black |
| Self-levelling: | Yes |
| Self-levelling range (±): | 4° |
| Storage temperature (t-t): | -20 - 70 °C |
| Target card: | Y |
| Tripod included: | Yes |
| Tripod mounting supported: | Yes |
| Tripod thread: | 1/4" |
| Type: | Line/Point level |
| Weight: | 580 g |
