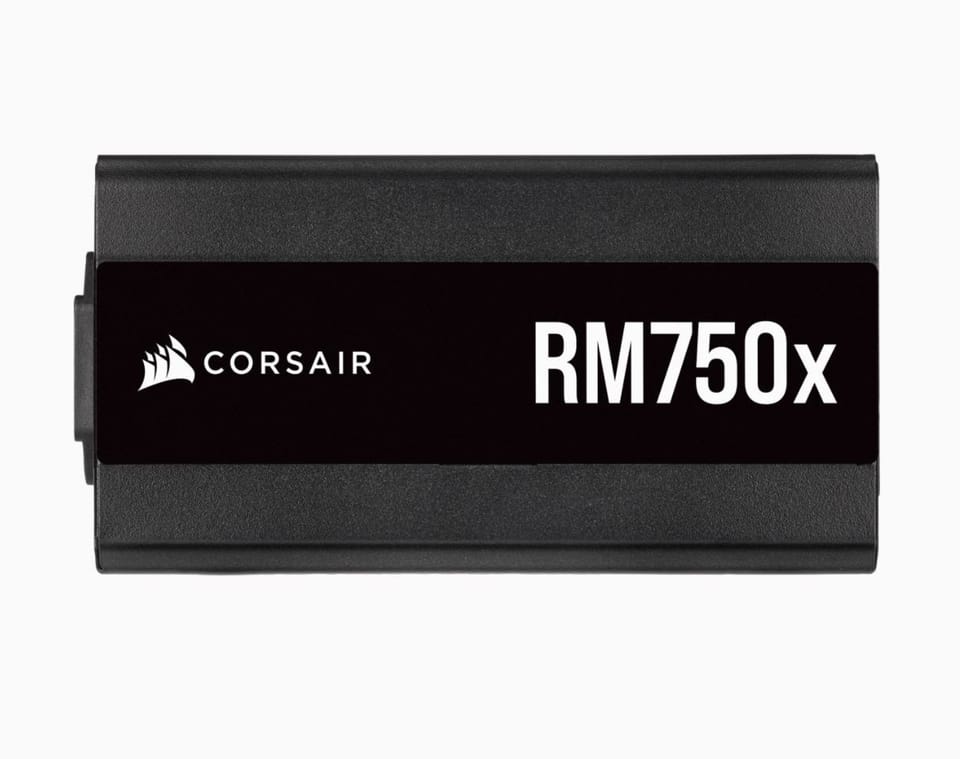

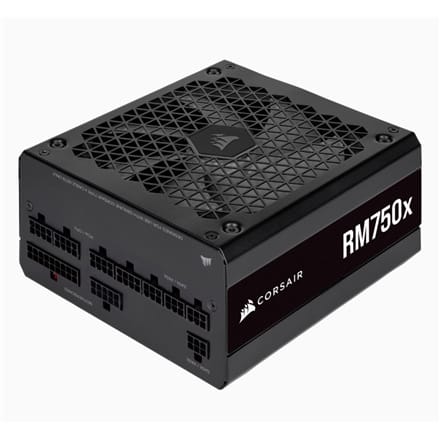

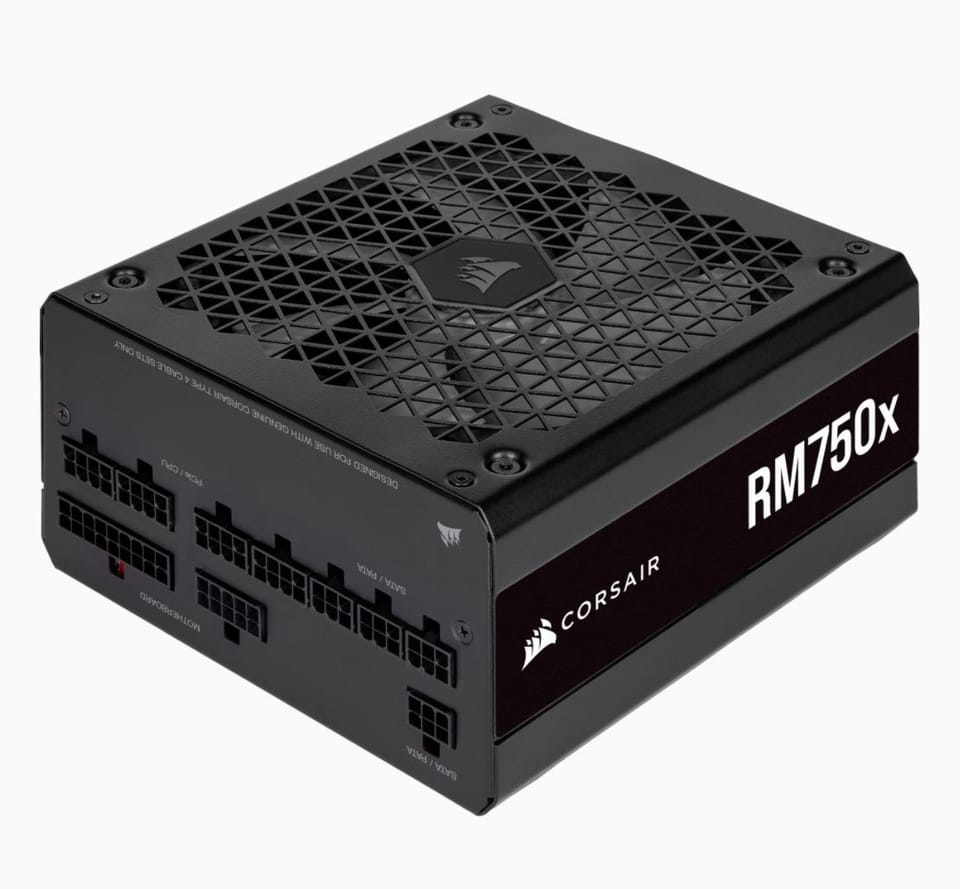

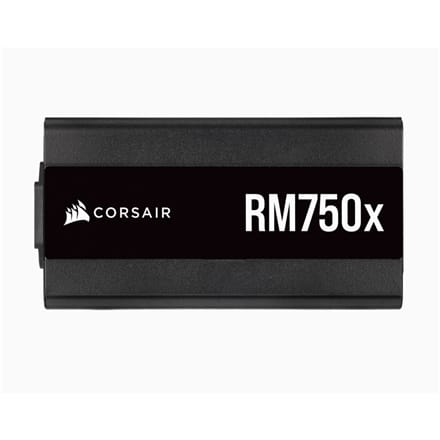

CP Unit CORSAIR 750W CP-9020199-EU
€165.83
Shipping from warehouse: A3
Estimated shipping: Mon, May 13 - Tue, May 14
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Corsair
- Product code:
- CP-9020199-EU / 0840006603641
Share this product:
Specification
| 80 plus certification: | 80 PLUS Gold |
|---|---|
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 100 - 240 V |
| Applied backlight: | no |
| Atx 24-pin plugs (20+4): | 1 |
| Atx power connector (24-pin): | Yes |
| Atx version: | 2.4 |
| Bearing technology: | MLB |

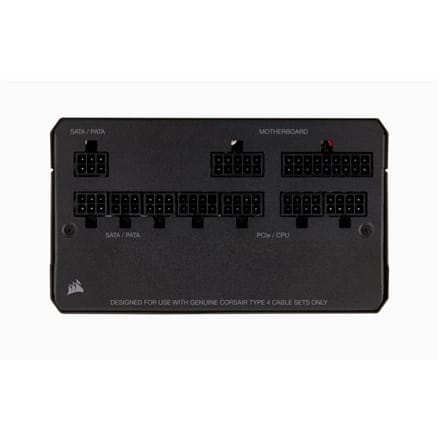

| Cables included: | AC, CPU, DC, PCIe, Peripheral (Molex), SATA |

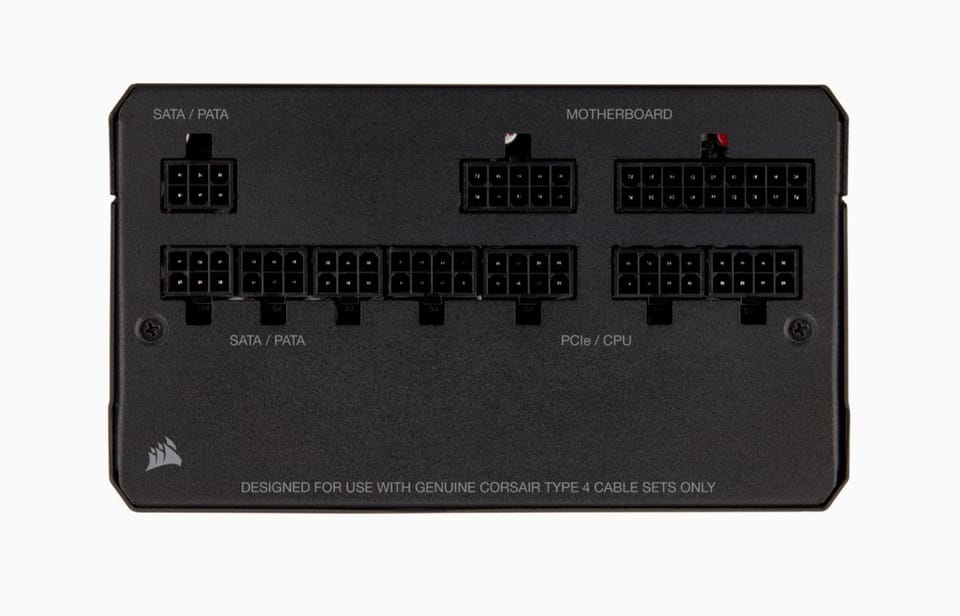

| Cabling type: | Fully-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 750 W |
| Combined power (+3.3v): | 150 W |
| Combined power (+5v): | 150 W |
| Combined power (+5vsb): | 15 W |
| Compliant standards: | ATX |
| Cooling type: | Active |
| Cpu power cable length: | 65 cm |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 160 mm |
| Depth (mm): | 160 |
| Eps power connector (4+4 pin): | Yes |
| Eps version: | 2.92 |

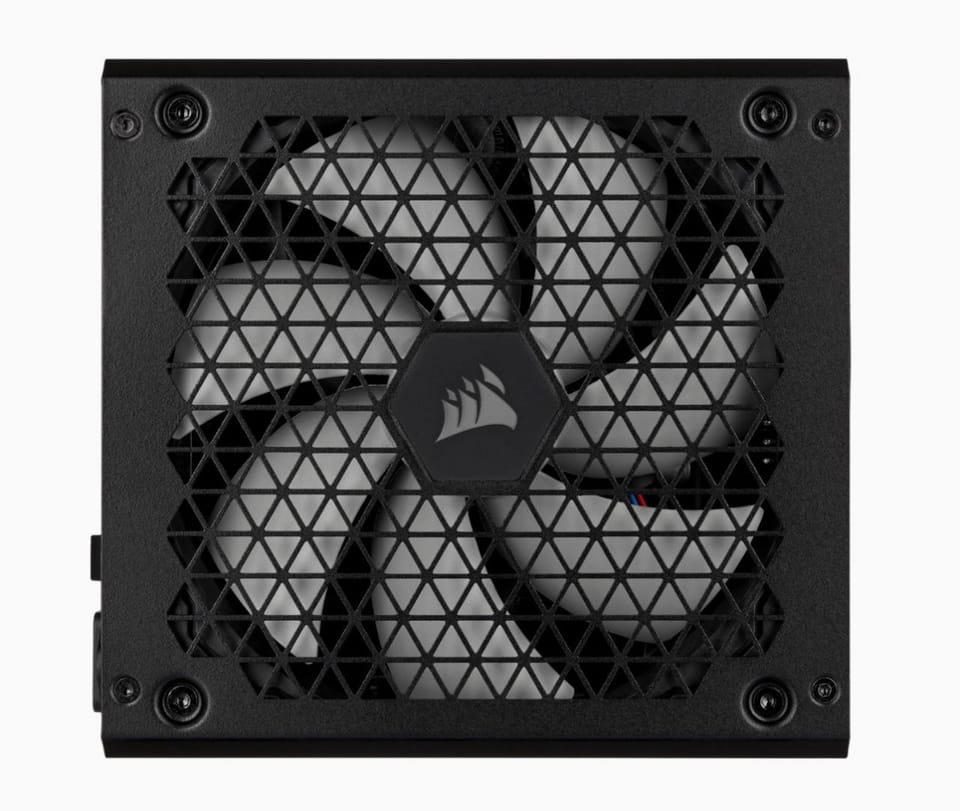

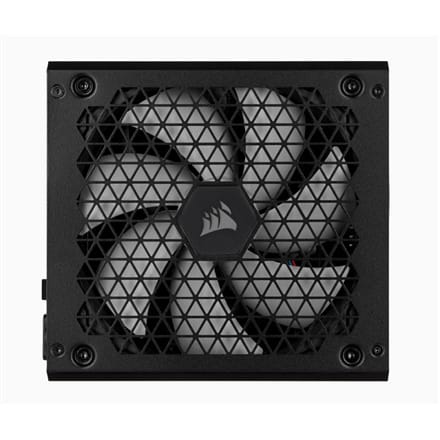

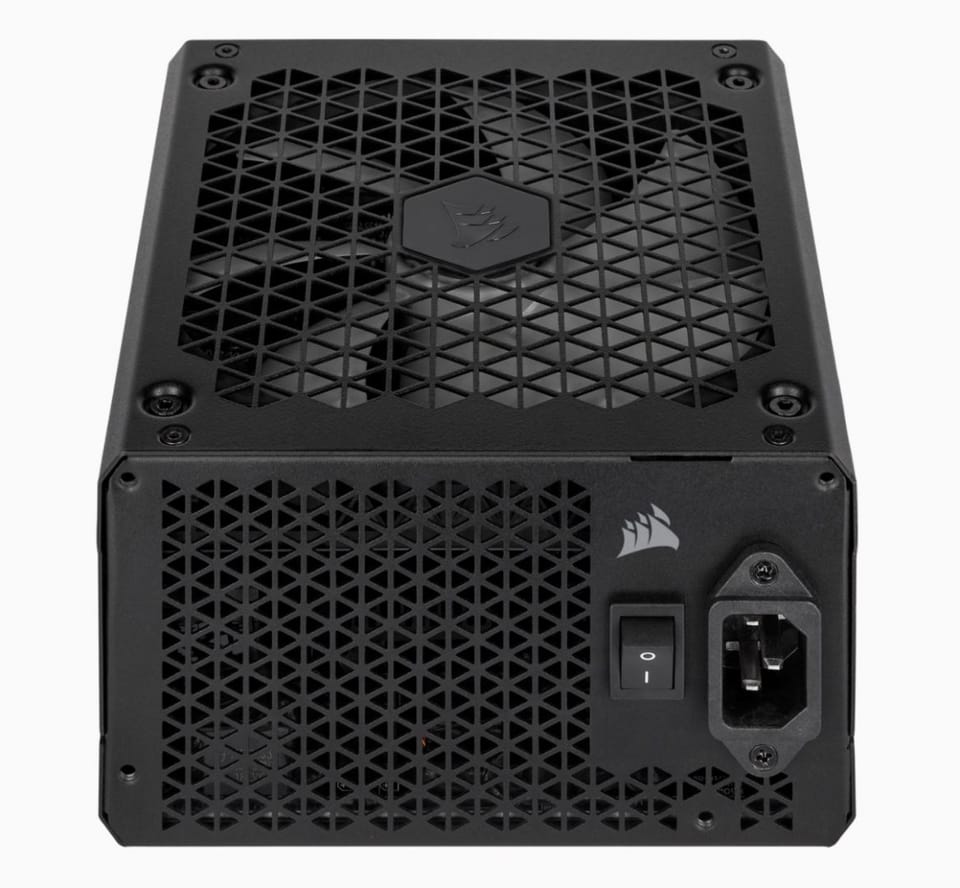

| Fan diameter: | 13.5 cm |
| Fan location: | Top |
| Floppy plugins: | no |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Height (mm): | 86 |
| Input current: | 10 - 5 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 62.5 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 3 A |
| Mean time between failures (mtbf): | 100000 h |
| Modular wiring type: | yes |
| Molex plugins: | 4 |
| Motherboard power cable length: | 61 cm |
| Motherboard power connector: | 24-pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 10 |

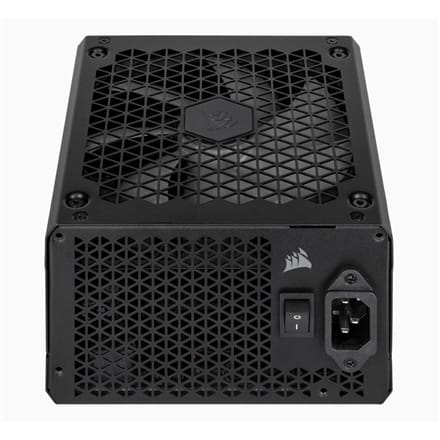

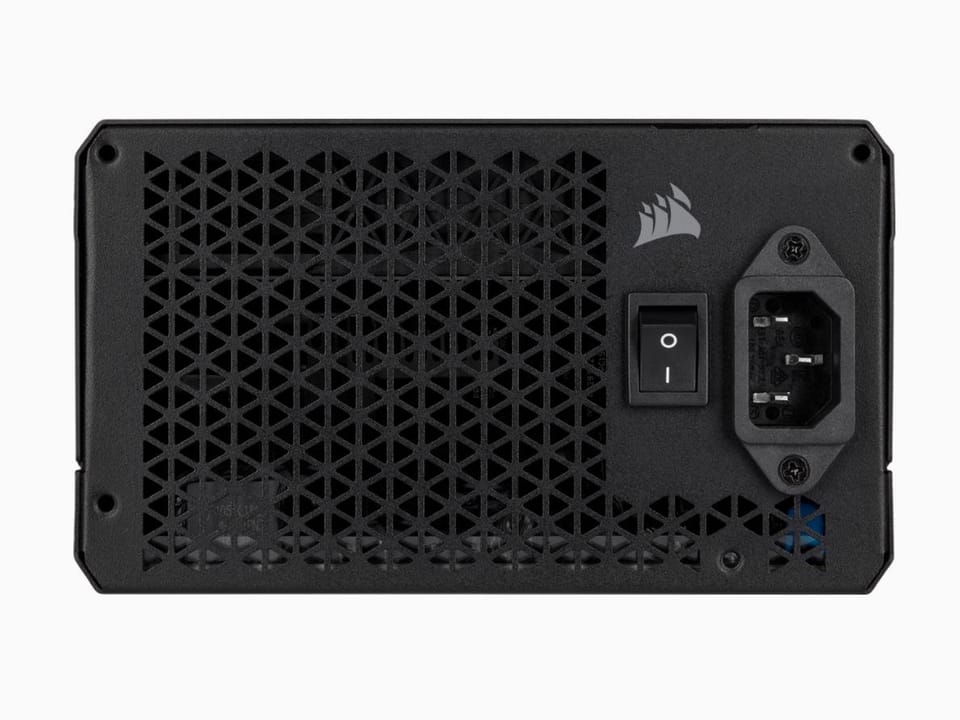

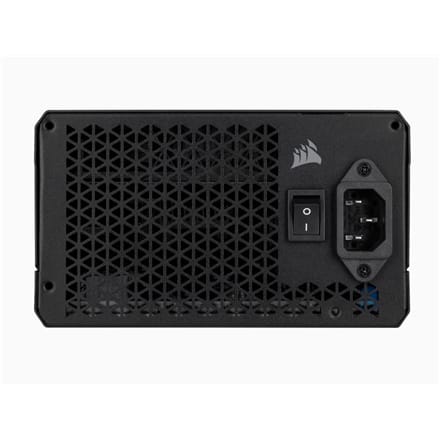

| On/off switch: | Yes |
| Other connectors: | 2x CPU 4+4 (8) pin |
| Other parameters: | 80 PLUS Gold Certification |
| Package type: | Box |
| Pci express power cable length: | 75 cm |
| Pci express power connectors (6+2 pin): | 4 |
| Pci-e 6-pin slots: | no |
| Pci-e 8-pin plugs (6+2): | 4 |
| Pci-e 8-pin slots: | no |
| Peripheral (molex) power cable length: | 750 mm |
| Peripheral (molex) power connectors (4-pin): | 1 |
| Pfc: | Active |
| Power protection features: | Overheating, Over power, Short circuit, Over voltage, Under voltage |
| Power supply (w): | 750 |
| Power supply efficiency (%): | 90 |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Sata plugs: | 10 |
| Sata power cable length: | 750 mm, 850 mm |
| Security measures applied: | OVP, UVP, SCP, OTP, OPP |
| Silent mode: | Yes |
| Total power: | 750 W |
| Type of cooling: | Fan 135 mm |
| Warranty: | 10 years |
| Weight: | 1.7 kg |
| Width: | 150 mm |
| Width (mm): | 150 |
