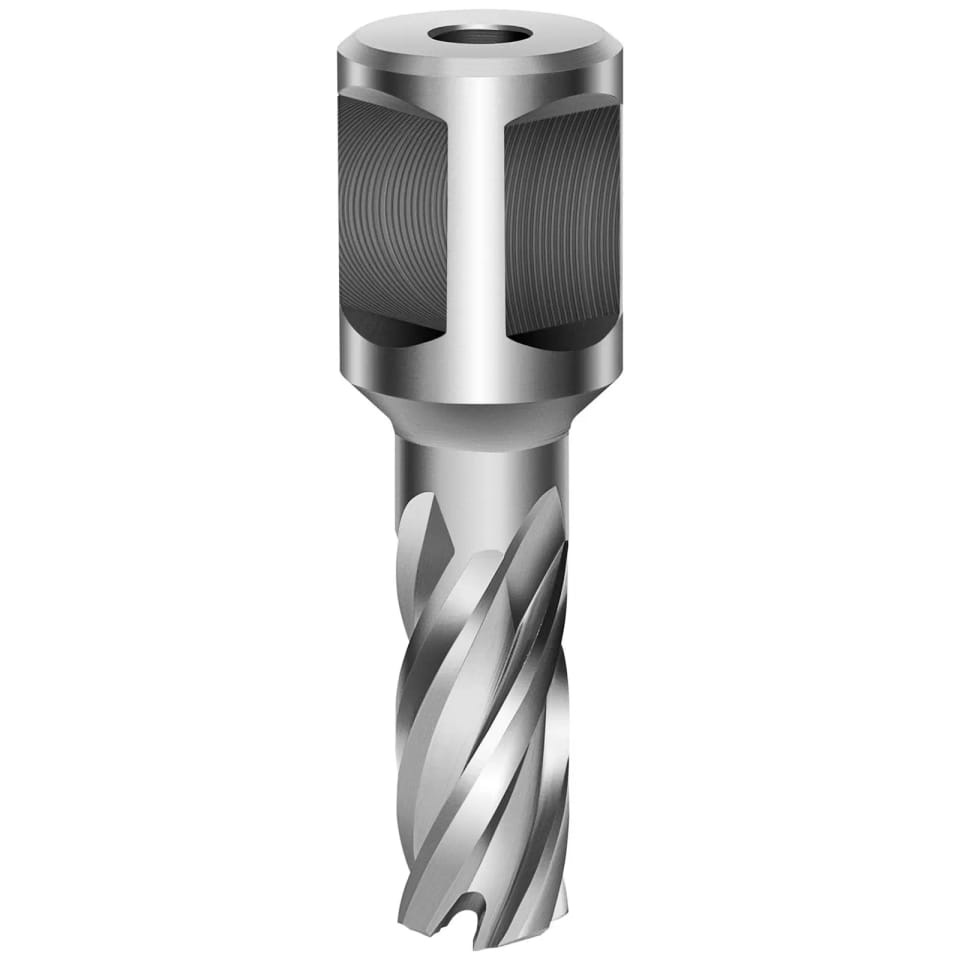

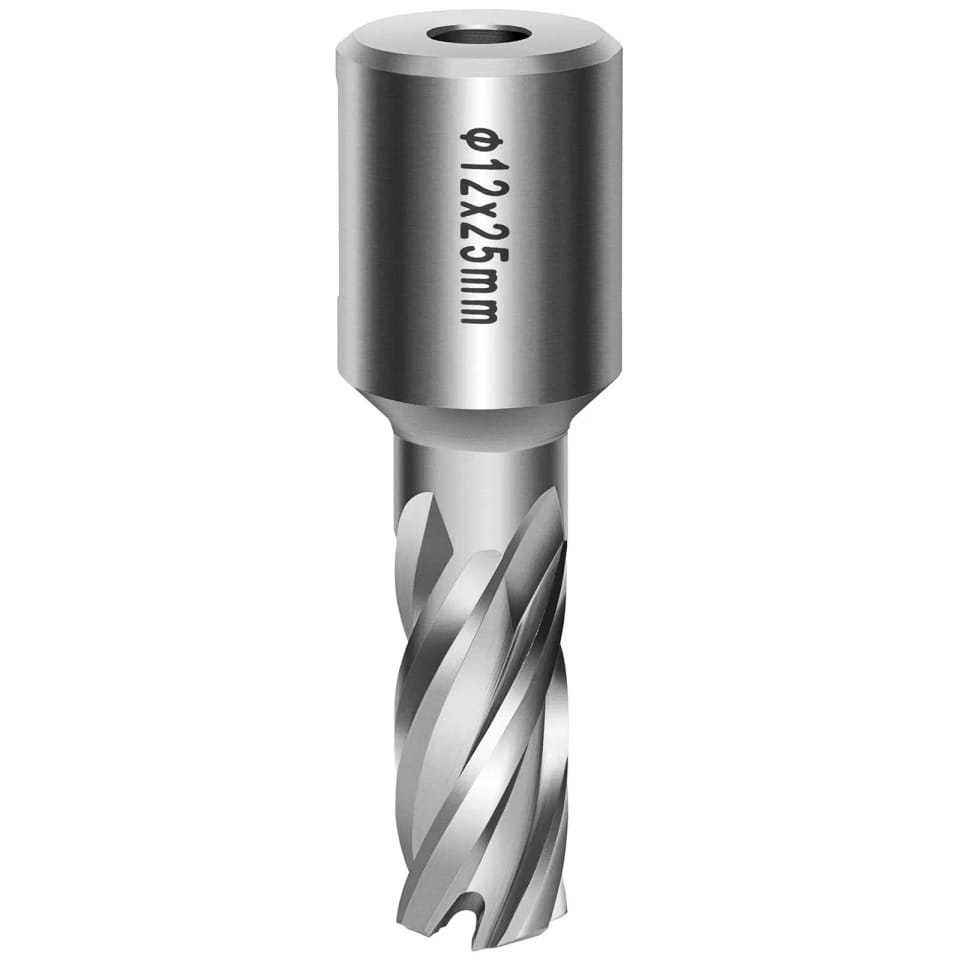

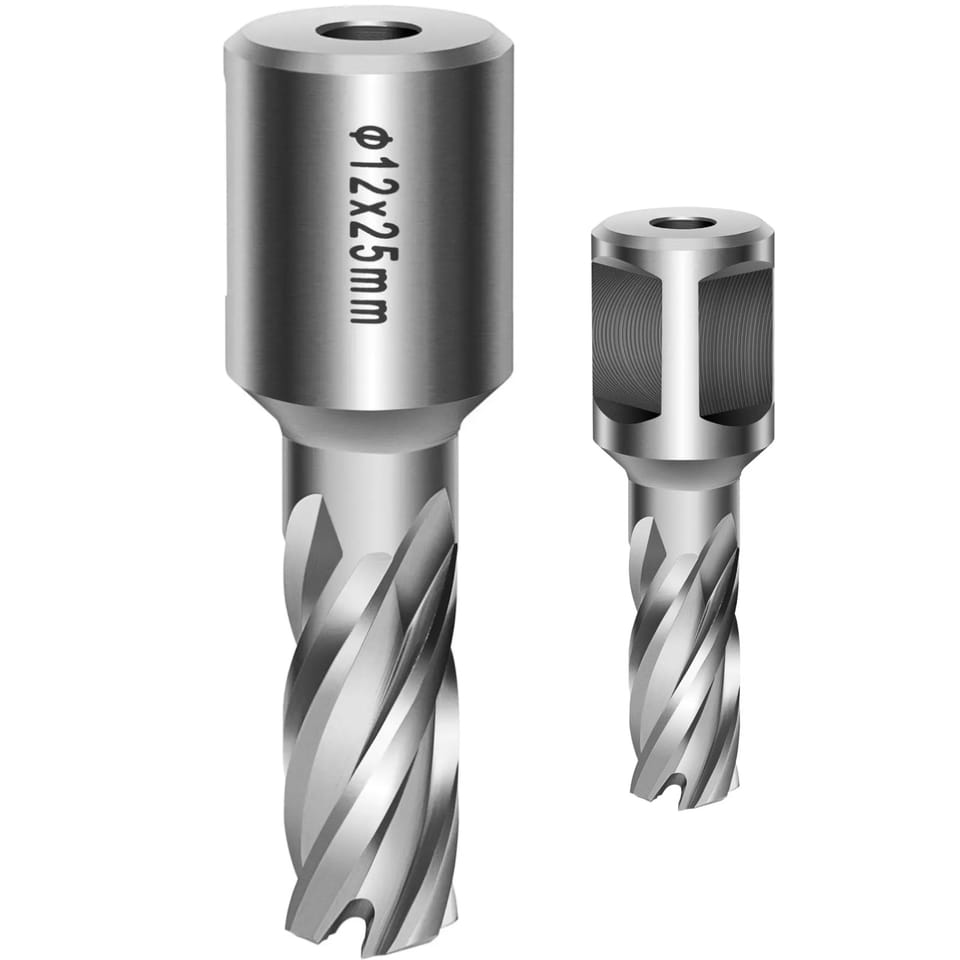

Core drill bit trepanating mill steel M2 12 x 25 mm MSW-CDB-25/12

This product is not available
Availability:
expected delivery
Brand:
MSW
Product code:
10060507 / 4250928693754

Specification

Sku:1009366
MSW 10060507 with a diameter of 12 mm and a height of 25 mmEffective annular drilling due to the sharp edges of the holes are free from burrs of the high-speed steel (HSS) class M2Product traits:
  • - Strength and very good mechanical properties - made of high-speed steel (HSS) class M2,
  • - Fast work - the use of thin walls and sharp teeth with alternating geometry,
  • - Efficiency - no need for reaming and multi-stage drilling.
Technical parameters:
  • - Model - MSW-CDB-25/12
  • - Catalogue number - 10060507
  • - Article status - New
  • - Material - High Speed Steel (HSS)
  • - HSS class - M2
  • - Hardness index (Rockwell scale) - 65 HRC
  • - Drill diameter - 12 mm
  • - Drill height - 25 mm
  • - Handle - Weldon ³/₄" (19 mm)
  • - Dimensions (LxWxH) - 2.00 x 2.00 x 6.10 cm
  • - Weight - 0.07 kg
  • - Shipping dimensions - 22.00 x 17.00 x 6.00 cm
  • - Shipping weight - 0.30 kg
Included:
  • Core drill – Ø 12mm, length 25mm

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
