Mandrel cutter, solid carbide, corner radius
Application: can be used for HSC high-speed roughing at low ap and highest fz.
Note: for INOX treatment, use cooling.

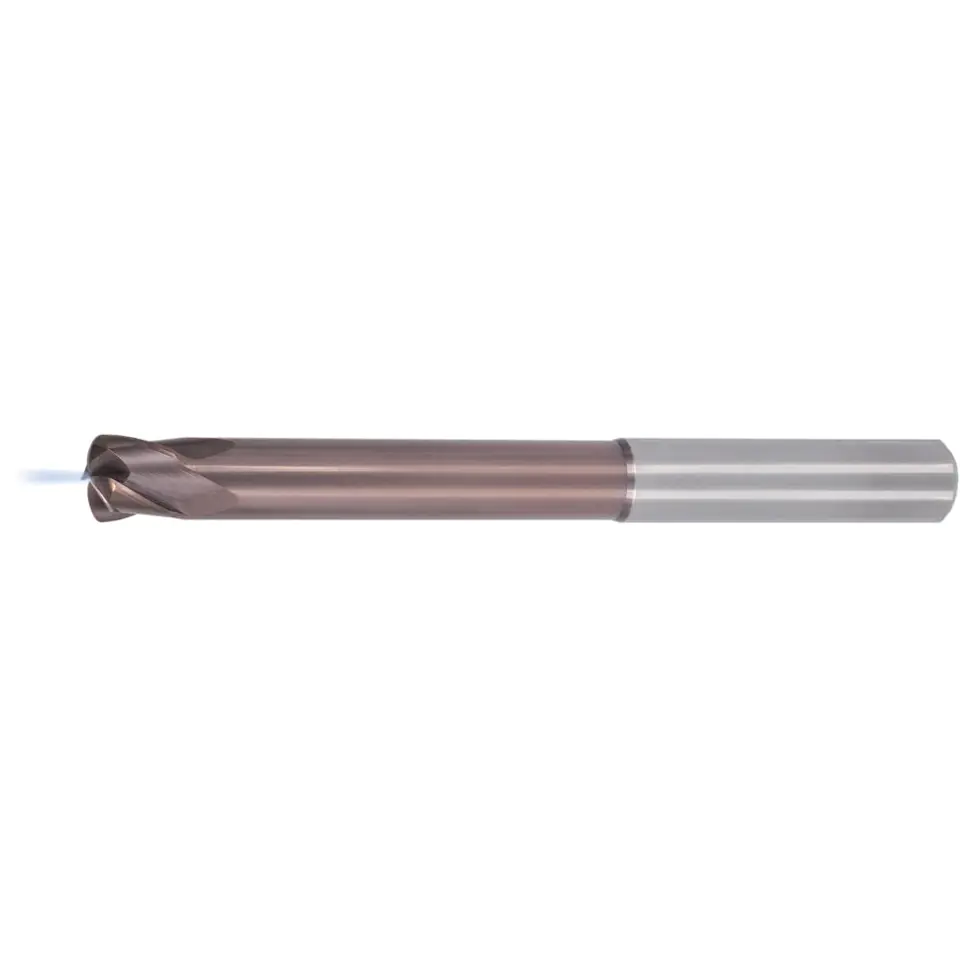

Copy cutter HSC WNpelnow.Signum HA 4-blade.b.long 3/0,5mm Gühring
€15.22
Shipping from warehouse: B6
Estimated shipping: Mon, Apr 6 - Thu, Apr 9
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- GÜHRING
- Product code:
- 9067720030000 / 4049844184886
Share this product:

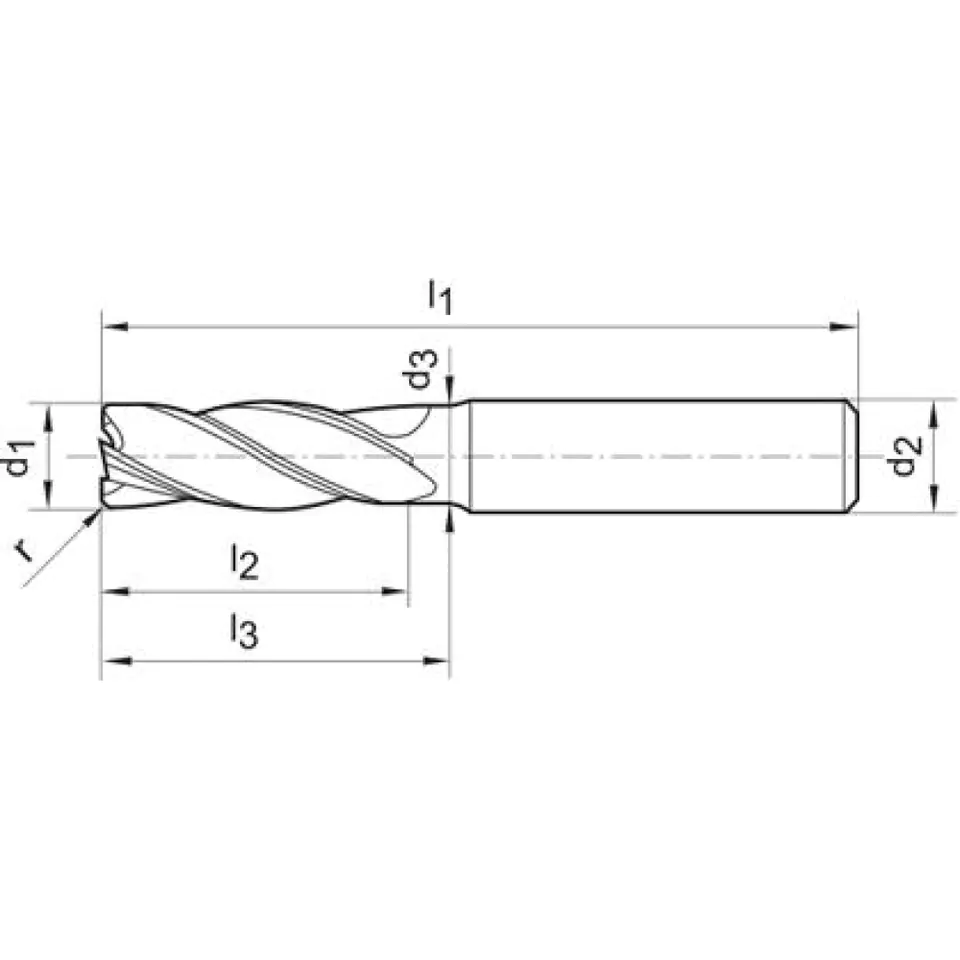

Specification
| Always < 1000 n/mm²: | 85 |
|---|---|
| Always < 700 n/mm²: | 115 |
| Cast iron gg/gts: | 90 |
| Corner radius r: | 0.5 mm |
| Cutting part length l2: | 2 mm |
| Diameter d1 = h 10: | 3* mm |
| Ggg cast iron: | 20 |
| Grip ø d2 = h6: | 6 mm |
| Hardened steels < 55 hrc: | 50 |
| Hardened steels < 60 hrc: | 45 |
| Inox austenite.: | 30 |
| Inox ferrite./martenz.: | 45 |
| No: | 9067720030000 |
| Ø neck d3: | 2.8 mm |
| Shell: | Signum |
| Stink constriction l3: | 30 mm |
| Total length l1: | 80 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
