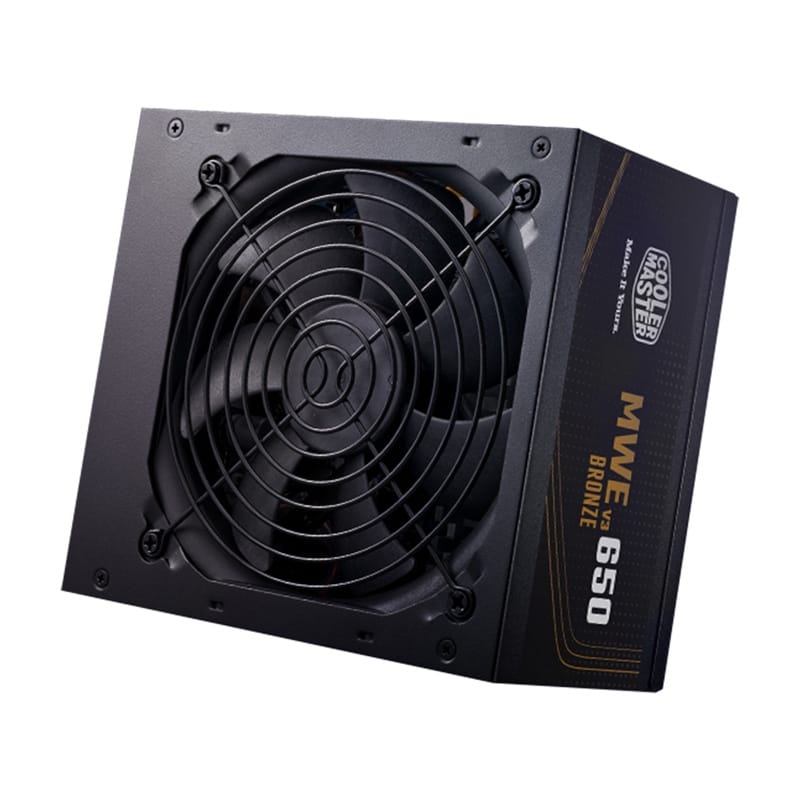

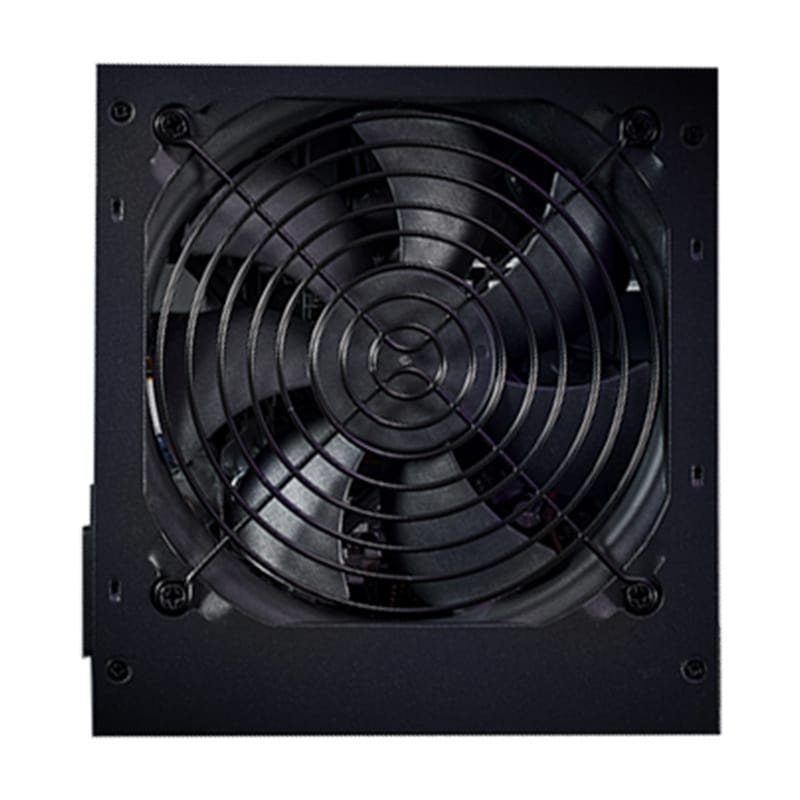

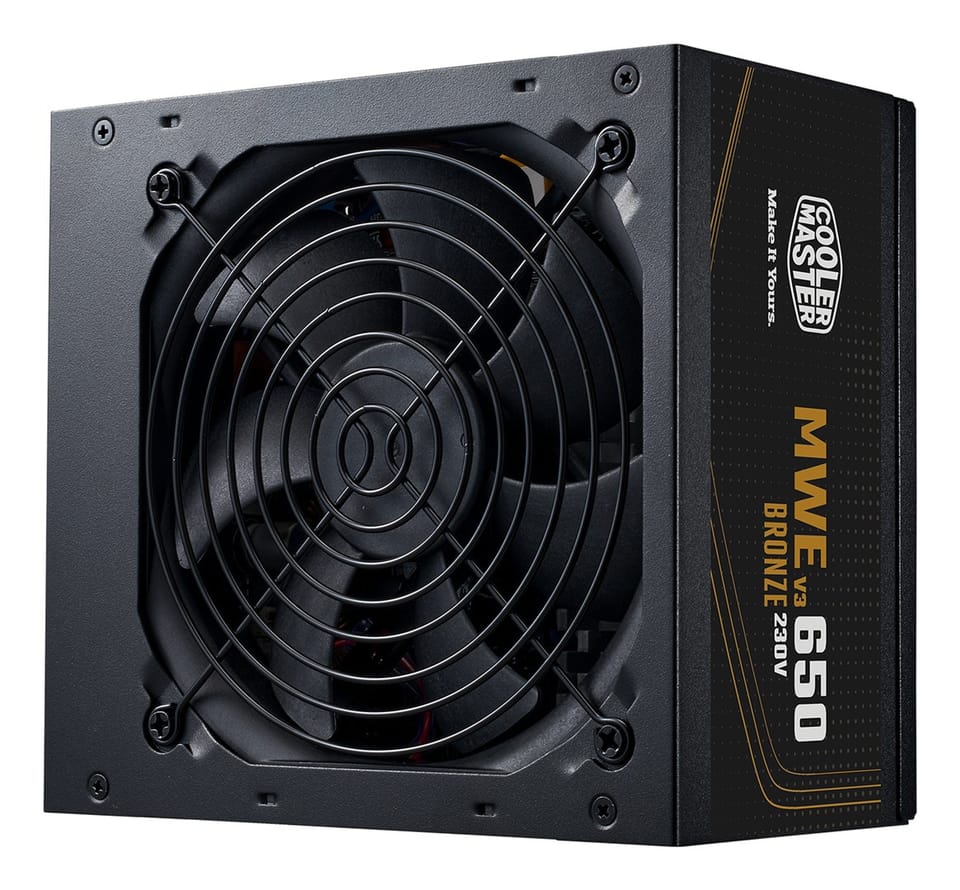

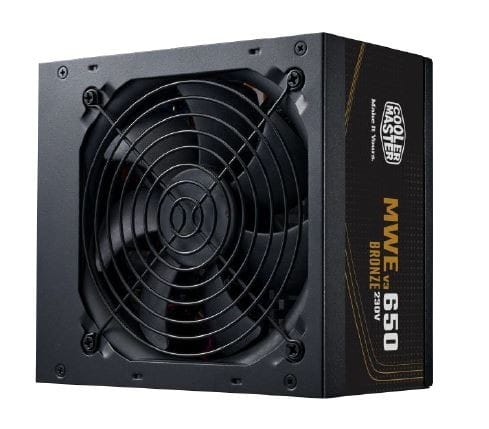

Cooler Master MWE Bronze 650 V3 230V power supply unit 650 W 24-pin ATX ATX Black

PLN 291.07
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Cooler Master
Product code:
MPE-6501-ACABW-3BEU / 4719512145227

Specification

80 plus certification:80 PLUS Bronze
Ac input frequency:50/60 Hz
Ac input voltage:200 - 240 V
Atx version:3.1
Bearing technology:HDB
Cabling type:Non-Modular
Combined power (-12v):3.6 W
Combined power (+12v):648 W
Combined power (+3.3v):120 W
Combined power (+5v):120 W
Combined power (+5vsb):15 W
Compliance certificates:Federal Communications Commission (FCC), EAC, RoHS, CE, China Compulsory Certification (CCC), UKCA, RCM, BIS
Cooling type:Active
Depth:140 mm
Efficiency:88%
Eps cable length:67 cm
Eps power connector (4+4 pin):Yes
Eps power connector (8-pin):Yes
Fan diameter:12 cm
Height:86 mm
Hold time:16 ms
Input current:5 A
Master (outer) case height:215 mm
Master (outer) case length:570 mm
Master (outer) case width:260 mm
Master (outer) cases per pallet (air):32 pc(s)
Max output current (-12v):0.3 A
Max output current (+12v):54 A
Max output current (+3.3v):19 A
Max output current (+5v):19 A
Max output current (+5vsb):3 A
Mean time between failures (mtbf):100000 h
Motherboard power cable length:50 cm
Motherboard power connector:24-pin ATX
Number of fans:1 fan(s)
Number of sata power connectors:6
Operating temperature (t-t):0 - 40 °C
Package depth:245 mm
Package height:110 mm
Package weight:2.05 kg
Package width:190 mm
Pci express power cable length:62 cm
Pci express power connectors (6+2 pin):4
Peripheral (molex) power cable length:550, 700, 400 mm
Peripheral (molex) power connectors (4-pin):3
Power factor correction (pfc) type:Active
Power good signal delay range:100 - 150 ms
Power protection features:Overheating, Under voltage, Over power, Short circuit, Over voltage
Power supply unit (psu) form factor:ATX
Product colour:Black
Products per master (outer) case:5 pc(s)
Purpose:PC/Server
Sata power cable length:400, 550, 700 mm
Total power:650 W
Weight:1.65 kg
Width:150 mm

Introducing the MWE Bronze V3 230V, the evolutionary ne xt step in Cooler Master power and the ATX 3.1 upgrade to our MWE Bronze V2 PSU. With features such as 80 Plus Bronze efficiency, a DC to DC + LLC circuit design, and a quiet HDB fan cooling, the V3 provides valuable performance in multiple dimensions.

Several changes and additions improve the overall user experience Together, these design choices deliver an advanced PSU that is highly efficien t and reliabl e. With an embossed cable, exceptional temperature resilience and a 5 year warranty, the MWE Bronze V3 will evolve your machine.
