| Dimensions: | 81 x 45 x 14 mm |
|---|---|
| Output: | 10 A (max), 7 A (continuous) |
| Output voltage: | 1 V ... 30 VDC |
| Power: | 80 W (continuous), 130 W (instantaneous) |
| Scales: | 0.04 kg |
| Security: | Overload Surge Suppression Short Circuit |
| Selected features: | Output voltage regulation Output current adjustment Cut-off adjustment when the input voltage drops below the set level - Deep discharge battery protection Connectors : cable terminals Indication of the presence of output voltage |
| Supply voltage: | 5 volts ... 32 V DC ( 10 V > recommended) |
| Type: | Voltage reduction and boost, DC/DC |
| Warranty: | 2 years |

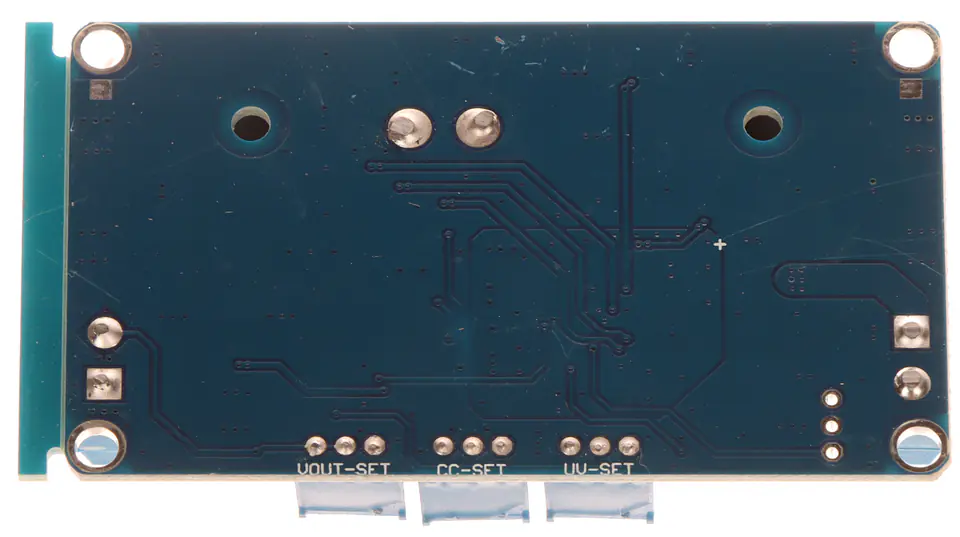

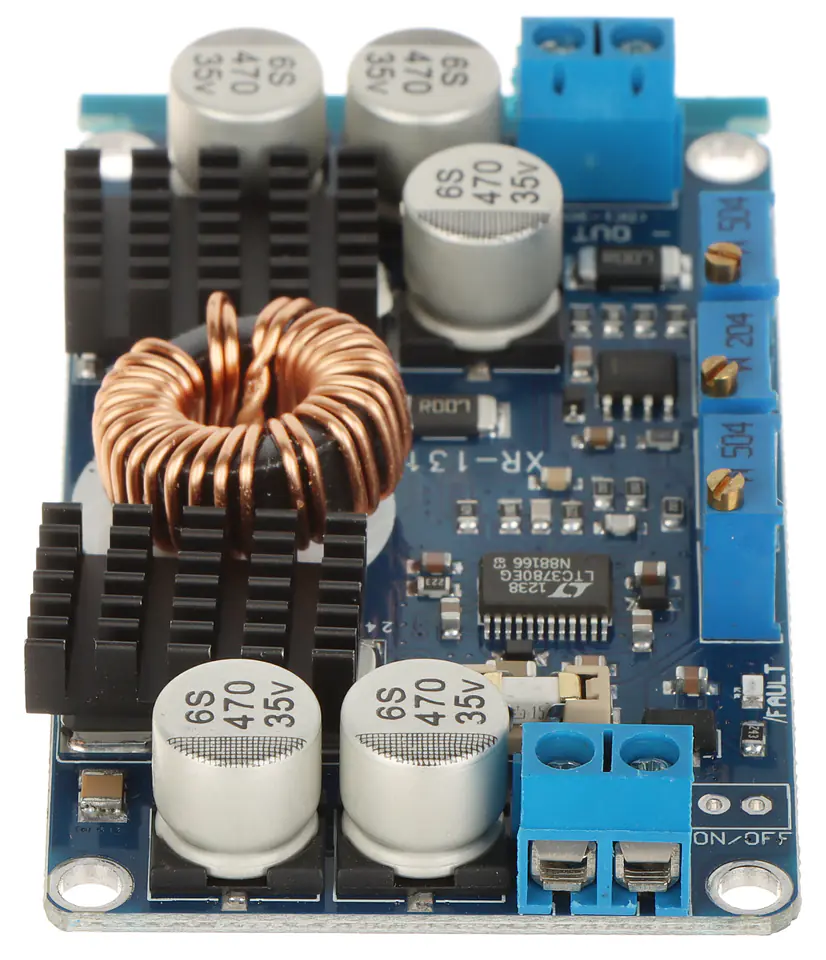

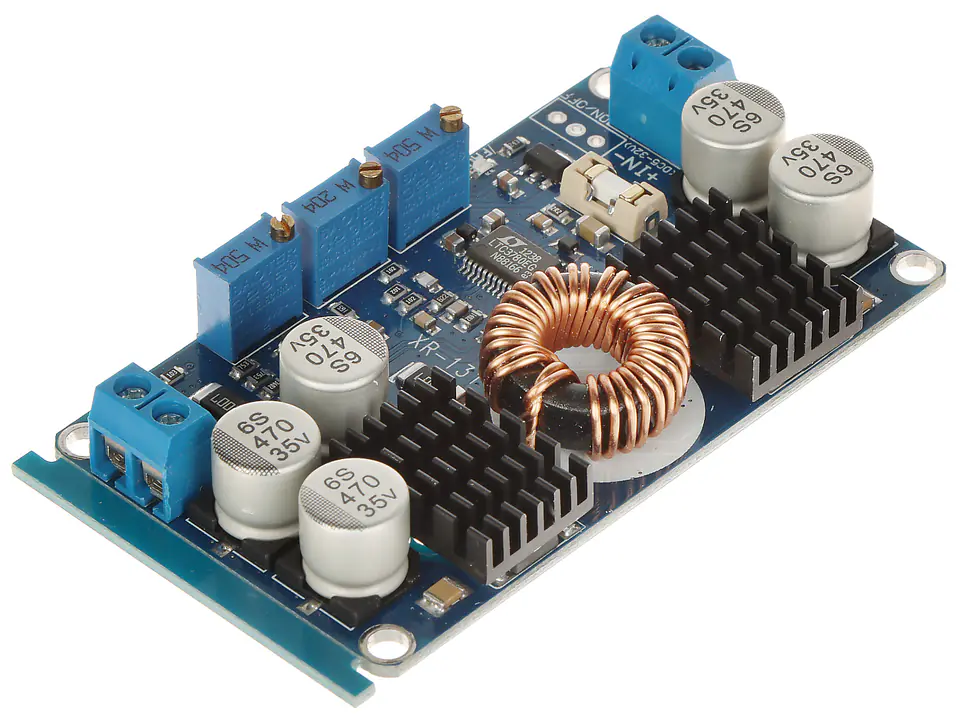

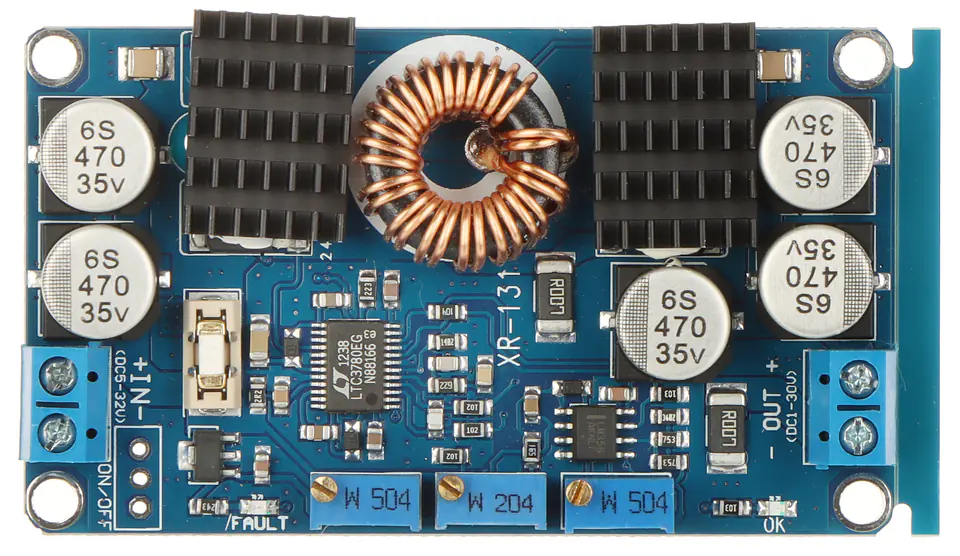

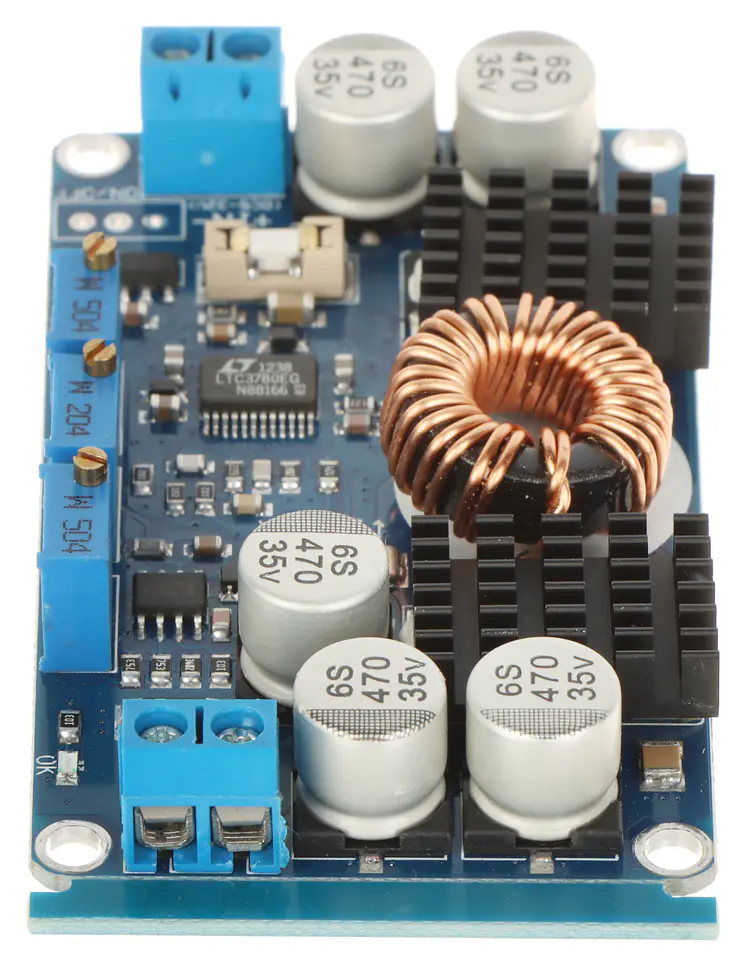

Step-up and step-up converter moduleThe LTC3780 converts input voltage in the range of 5 ... 32V DC to 1 ... 30V DC
It has 2 efficient heatsinks for long, trouble-free operation
Remark! When exceeding 80W, additional cooling should be provided due to the greater amount of heat emitted
