The PROTECT-LED-KL-1 control panel is used to monitor the operating status of the mobile recorder and acts as an IR extender
CONTROL PANEL PROTECT-LED-KL-1
PLN 165.04
Shipping from warehouse: D4
Estimated shipping: Fri, Nov 7 - Mon, Nov 10
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- PROTECT-LED-KL-1 / 5902887066344
Share this product:
Specification
| Communication interface:: | RS-485 |
|---|---|
| Description of the wires:: | CONTROL PANEL / RECORDER : White / RS485B Red / 12 V Output Green / RS485A Black / GNDFor connection, it is necessary to cut off the factory connector and manually make a connection to the corresponding connectors of the recorder |

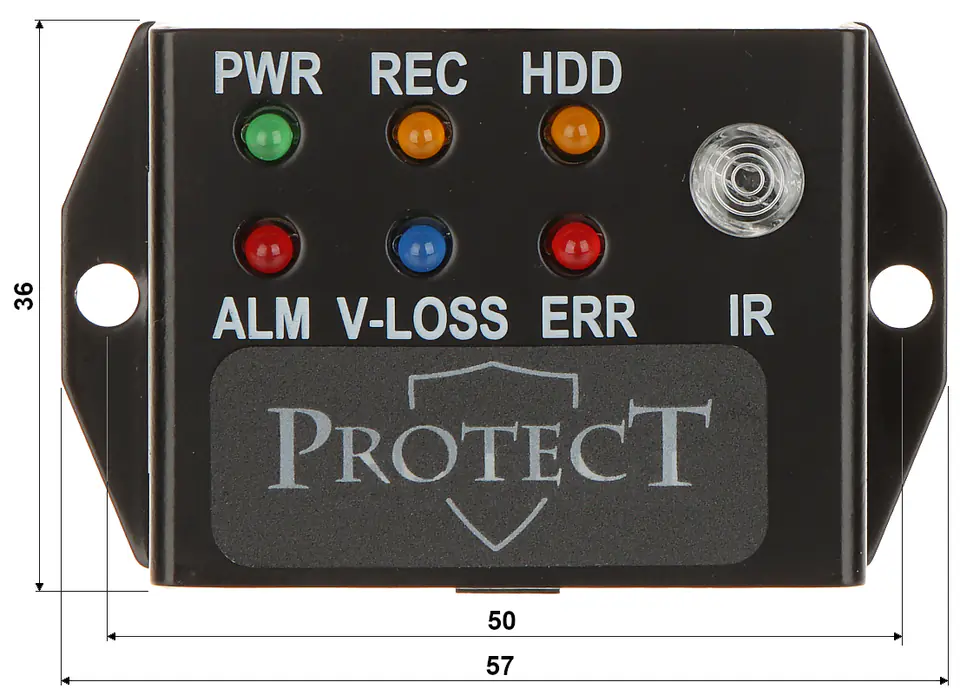

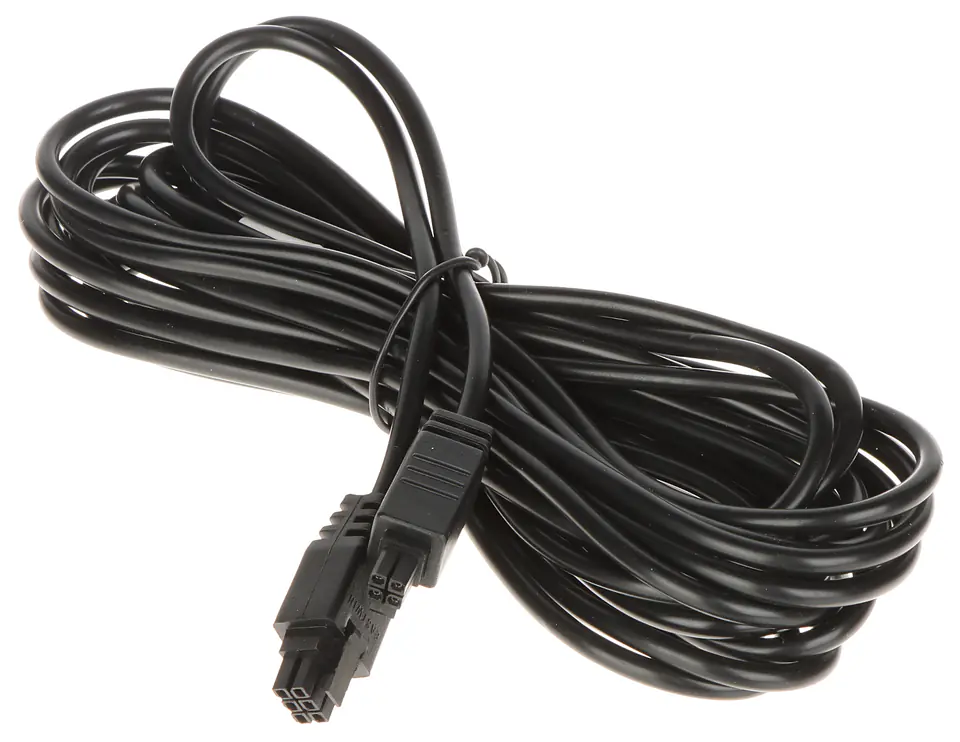

| Dimensions:: | 57 x 35 x 20 mm 4 m - Cable length |
| Leds indicating the operating status of the device:: | PWR - REC Power Supply - HDD Video Recording - Installed and Formatted SD ALM Memory Card - V-LOSS Alarm Output - VIDEO ERR Signal Loss Alarm - Error |
| Power:: | 12 VDC |
| Scales:: | 0.18 kg |
| Use:: | Mobile recorders PROTECT |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
