| Country of origin: | Canada |
|---|---|
| Dimensions: | 190 x 102 mm |
| Event memory: | 512 |
| Expansion modules: | 15 (max) - 4 wired communication bus |
| Grade: | 2 |
| Load capacity of low-current programmable outputs: | 100 mA |
| Maximum number of supported inputs: | 10 pcs. - ATZ function |
| Maximum number of supported outputs: | 16 pcs. |
| Motherboard inputs: | 5 pcs. |
| Motherboard outputs: | 4 pcs. - programmable, 2 master/slave serial outputs |
| Number of supported wireless detectors: | .max. 32 pcs. - Any combination of wired and wireless detectors possible |
| Operating temperature: | 0 °C ... 50 °C |
| Partitions: | 2 |
| Permissible relative ambient humidity: | 90 % |
| Power: | 16.5 V AC / 1.2 A (max) |
| Power consumption: | ≤ 40 VA |
| Power supply current efficiency: | 0.8 A |
| Producer / brand: | PARADOX |
| Scales: | 0.17 kg |

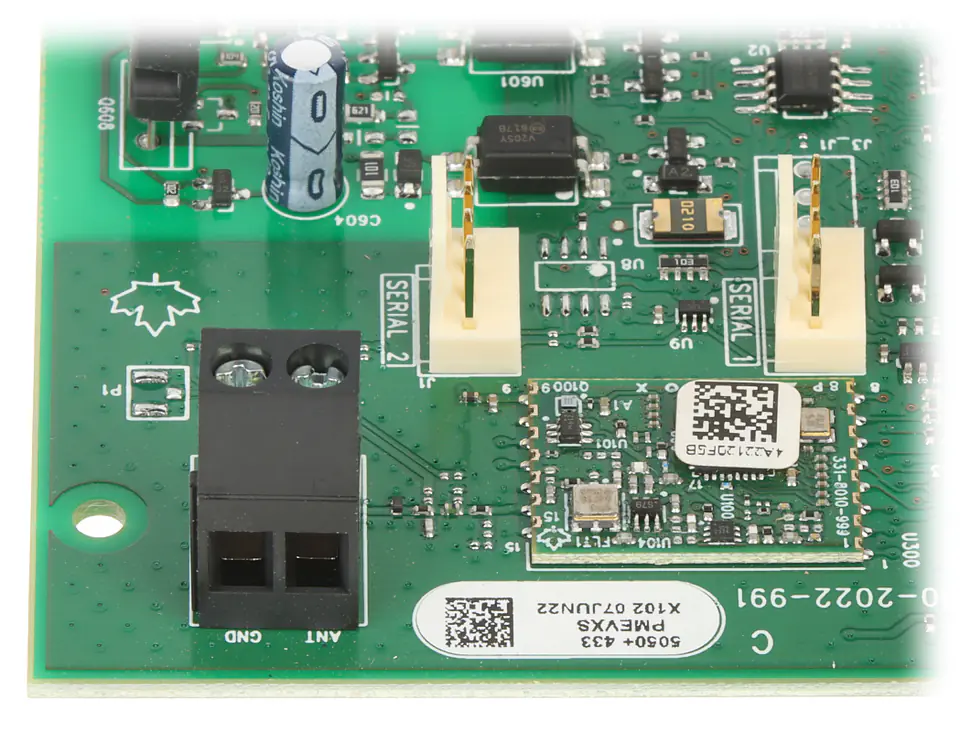

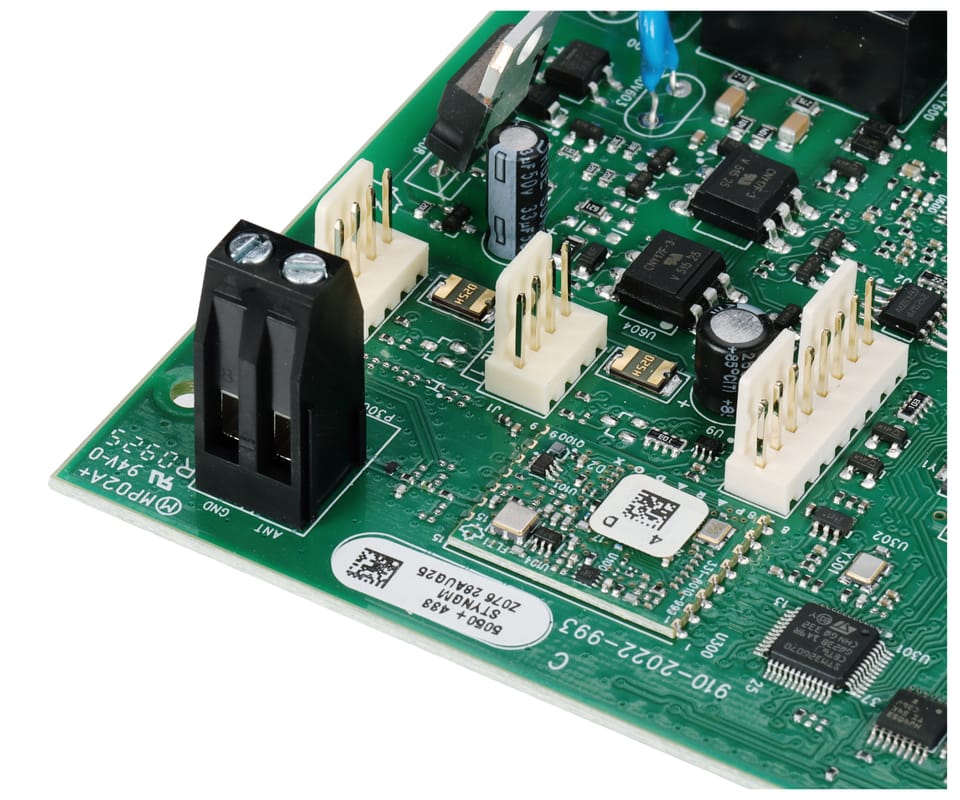

| Selected features: | Built-in 433 MHz radio signal transmitter and receiver StayD support Number of phone notification numbers: 5 - personal numbers, 3 - monitoring stations, 1 - pager Access control and home automation functions Ability to work with wireless device modules |
| Supported keyboards: | .max. 32 pcs. |
| Supported languages: | English |
| Timers: | 16 |
| Users + administrators: | 32 + 1 |
| Warranty: | 2 years |
| Zone: | 4 |

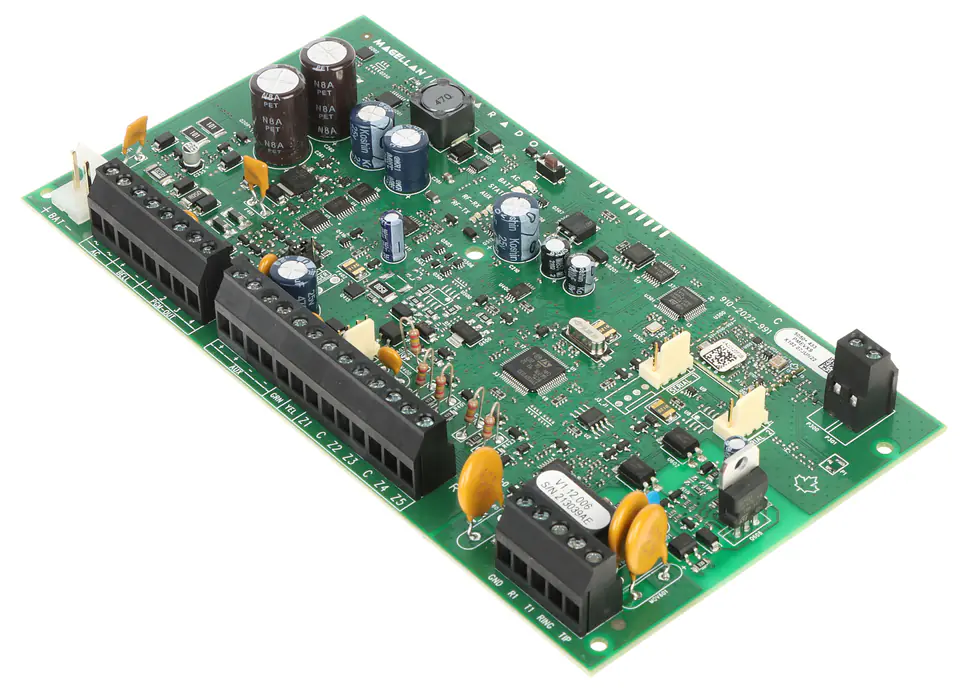

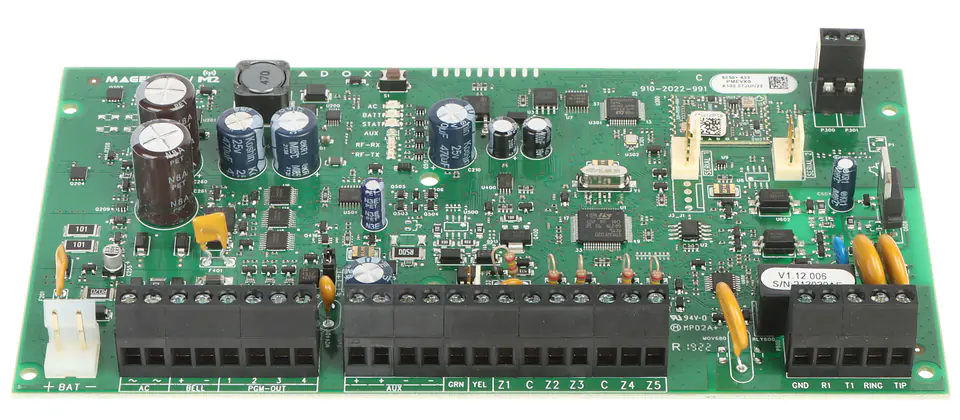

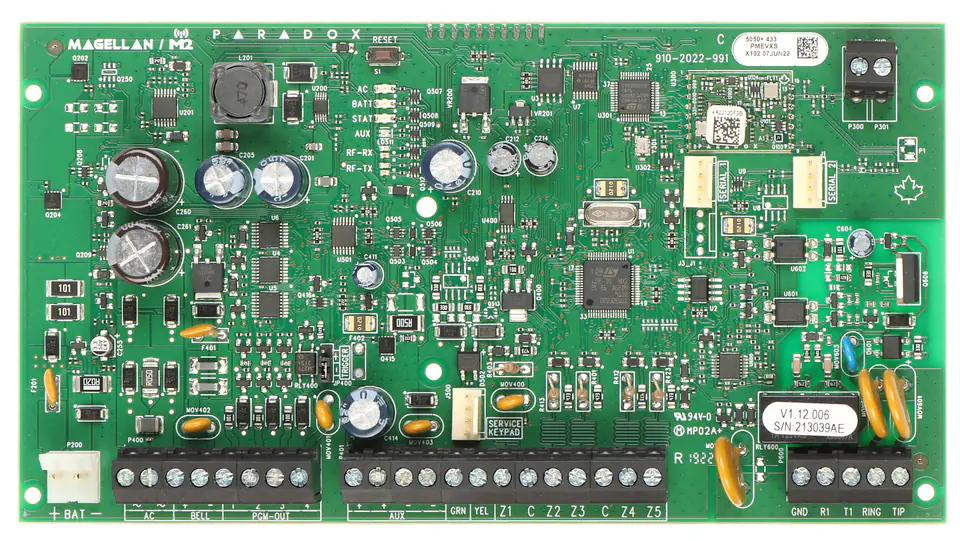

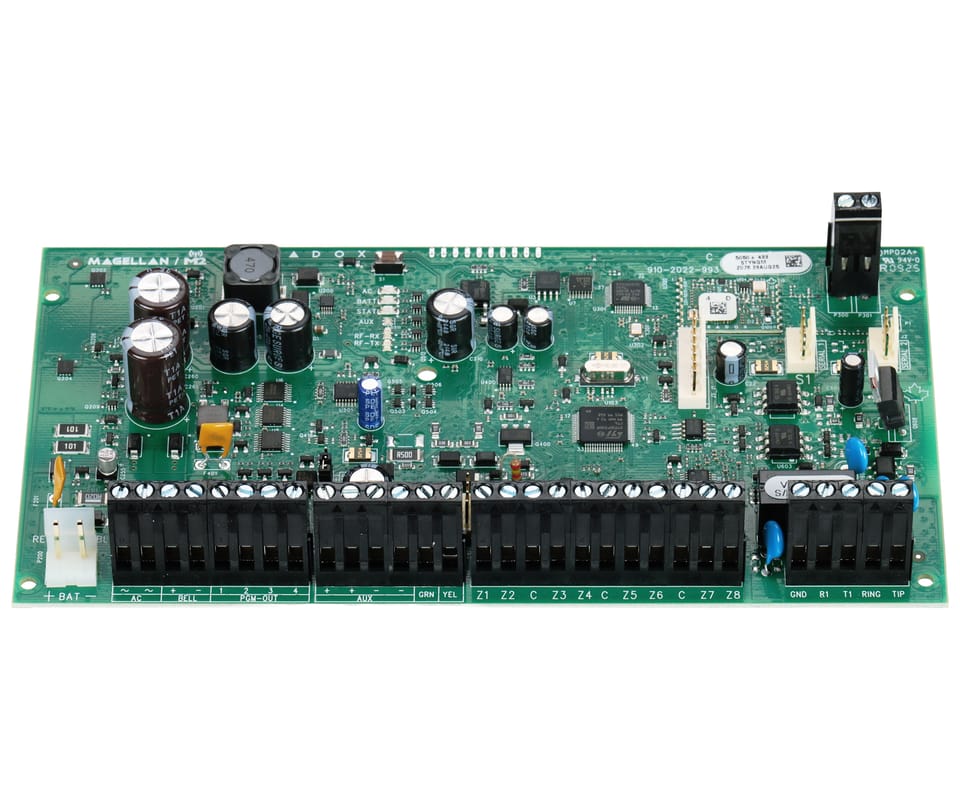

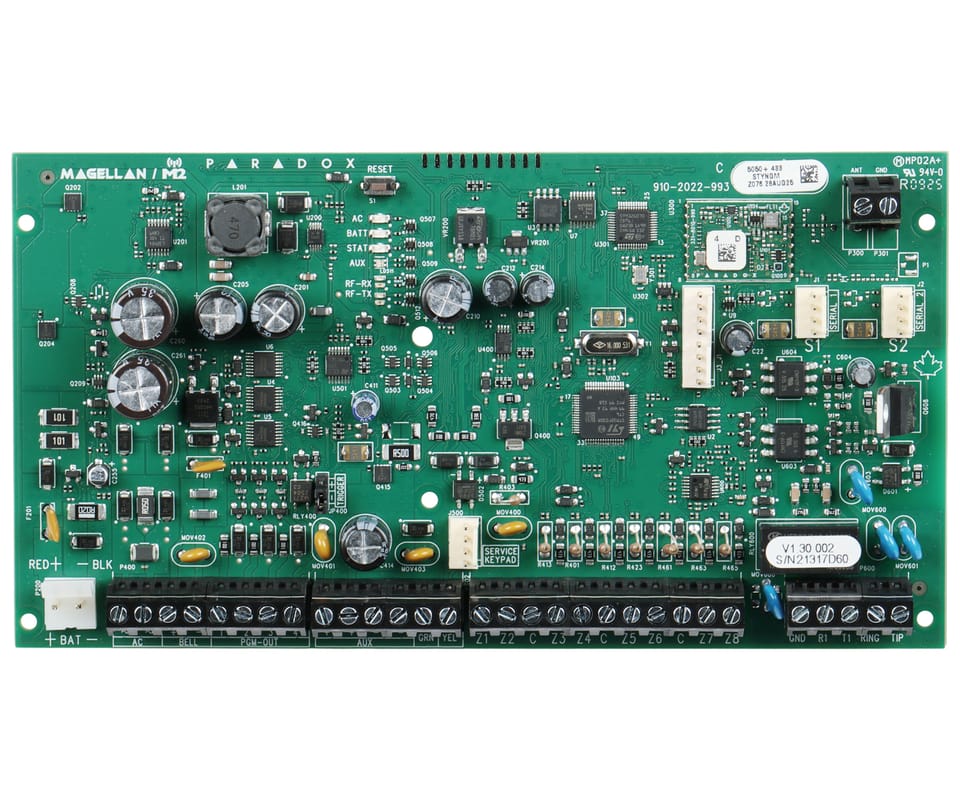

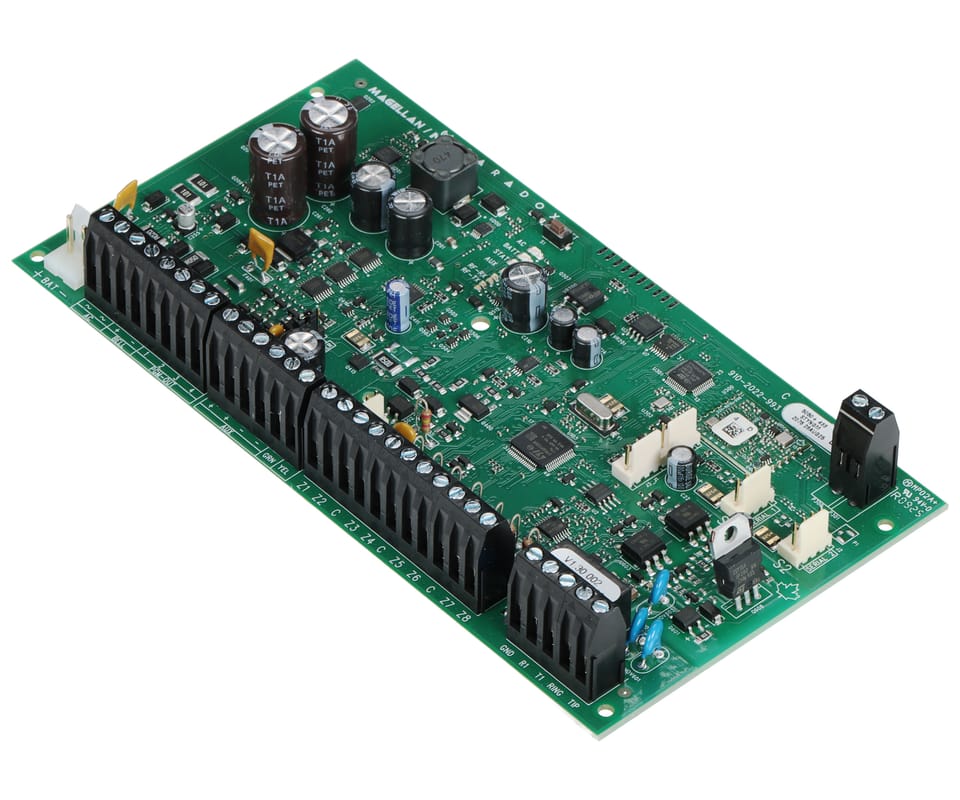

The MG-5050+ control panel offers advanced solutions and communication via the BUS bus, allowing the creation of a modular alarm systemThanks to the communication bus, the control panel can be expanded through a number of modules, both wired and wireless
You can update the software using a computer
