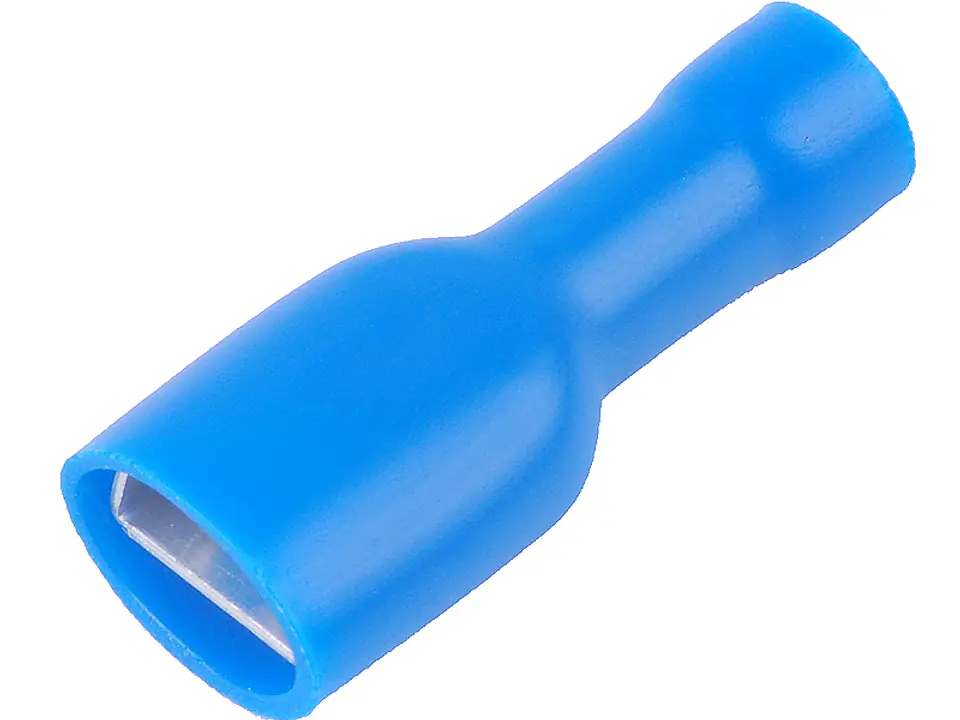

Female flat connectors fully insulated for multi-wire copper cables
More data in the GALLERY.
TECHNICAL DATA:
- Material: brass, tinned
- Insulation: PVC
- Operating temperature range: -55°C-105°C
- Vein [mm²]: 0.5-1.5
- Color: Blue
- Socket width [mm]: 6.6

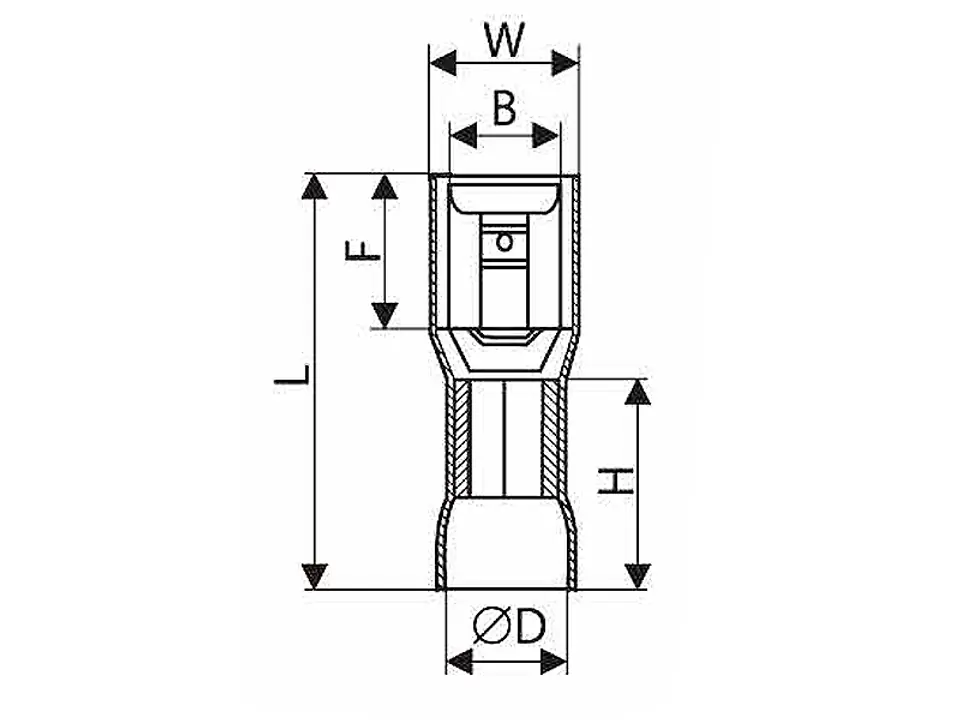

CONNECTOR DIMENSIONS (mm):
B: 6.6
F: 7.8
At: 10
L: 23
H: 10
D: 4.3
Plug: 0.8
