COMPACT SIDE CUTTING PLIERS X-CUT 160MM

Specifications:

Item no.: 73 05 160 T
EAN: 4003773080077
Pliers: chrome plated
Head: chrome plated
handles: with multi-component caps, integrated hook for attaching fall protection
Weight: 180 g
Dimensions: 160 x 55 x 23 mm
Standard: DIN ISO 5749
REACH: does not contain SVHC
RoHS: not applicable
Cutting range of soft wire (diameter): 4.8 mm
Cutting range of medium hardness wire (diameter): 3.8 mm
Hardcore cutting range (diameter): 2.7mm

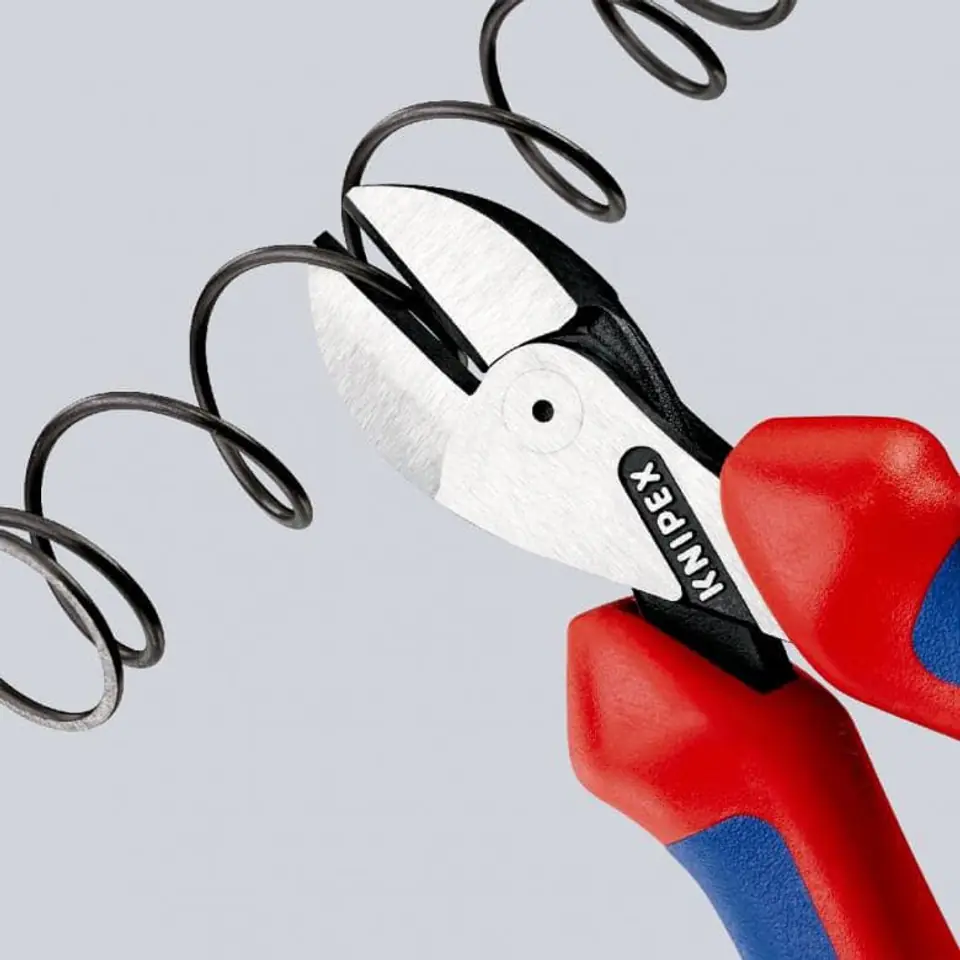

Piano wire cutting range (diameter): 2.2mm

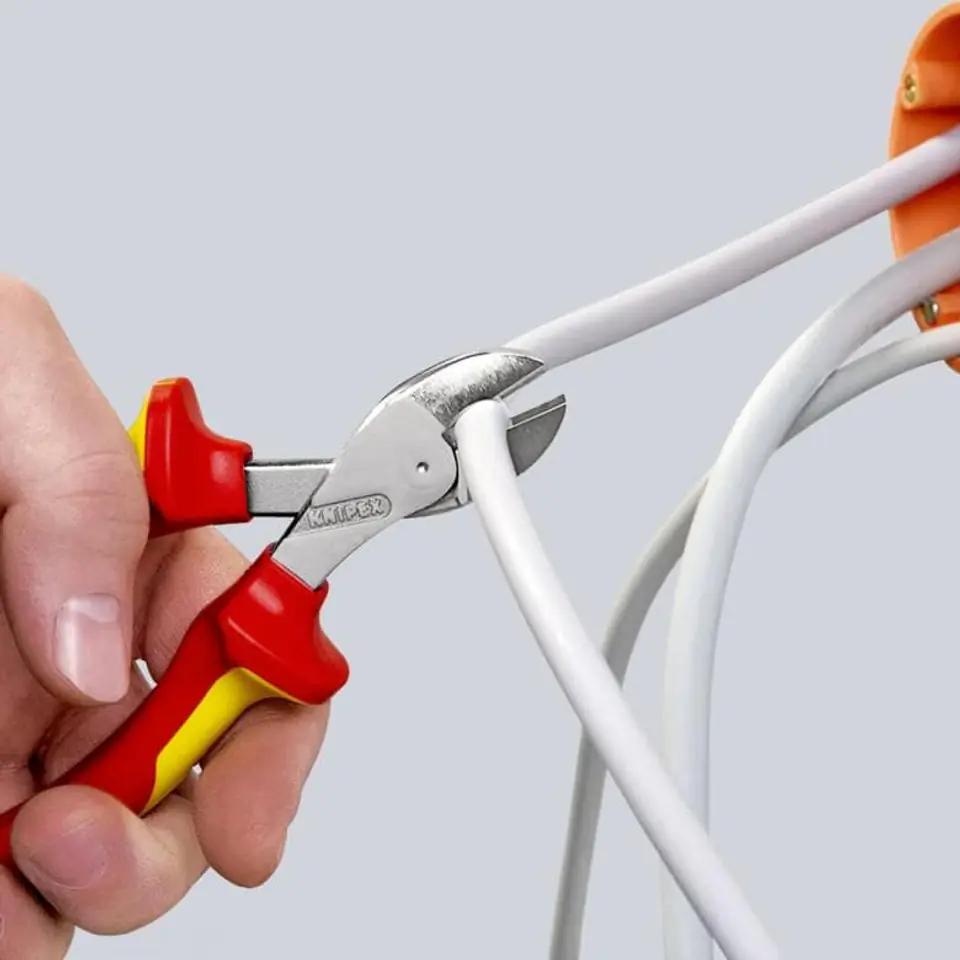

Cutting range of copper, multicore cable: 12.0 mm
Fall protection: yes





For cutting both fine wire and multicore cables and hard piano wire
Powerful, lightweight and versatile
Pliers with handle for attaching fall protection
The optimal combination of blade angle and lever ratio with a pivot point shifted to the side ensures high cutting performance with minimal effort
Slide connection: high stability and low weight
Double-routed connector for long-term heavy duty applications
Large opening range allows cutting cables with larger diameters

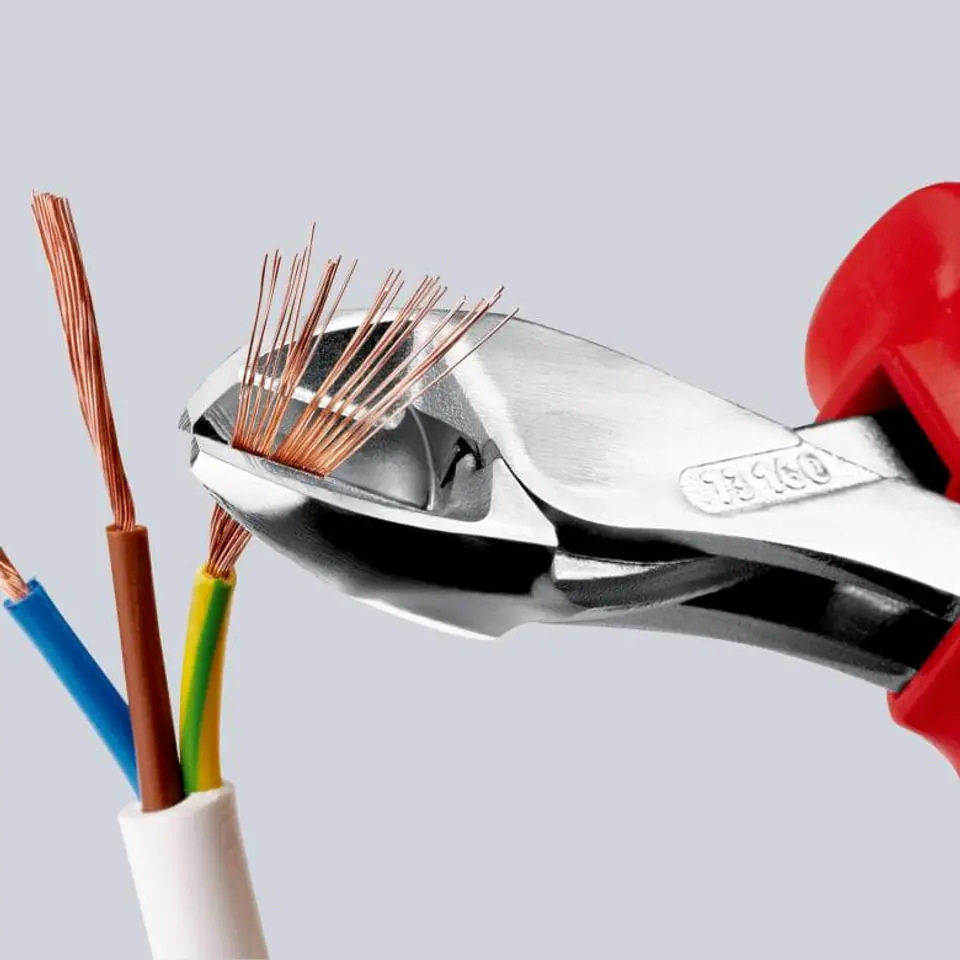

Precise cutting of even thin copper wires
Compact, lightweight design
Universal use in assembly, repair and production
They require 40 % less force compared to standard side cutting pliers of the same length
High strength chrome-vanadium steel, forged, repeatedly oil-hardened


**

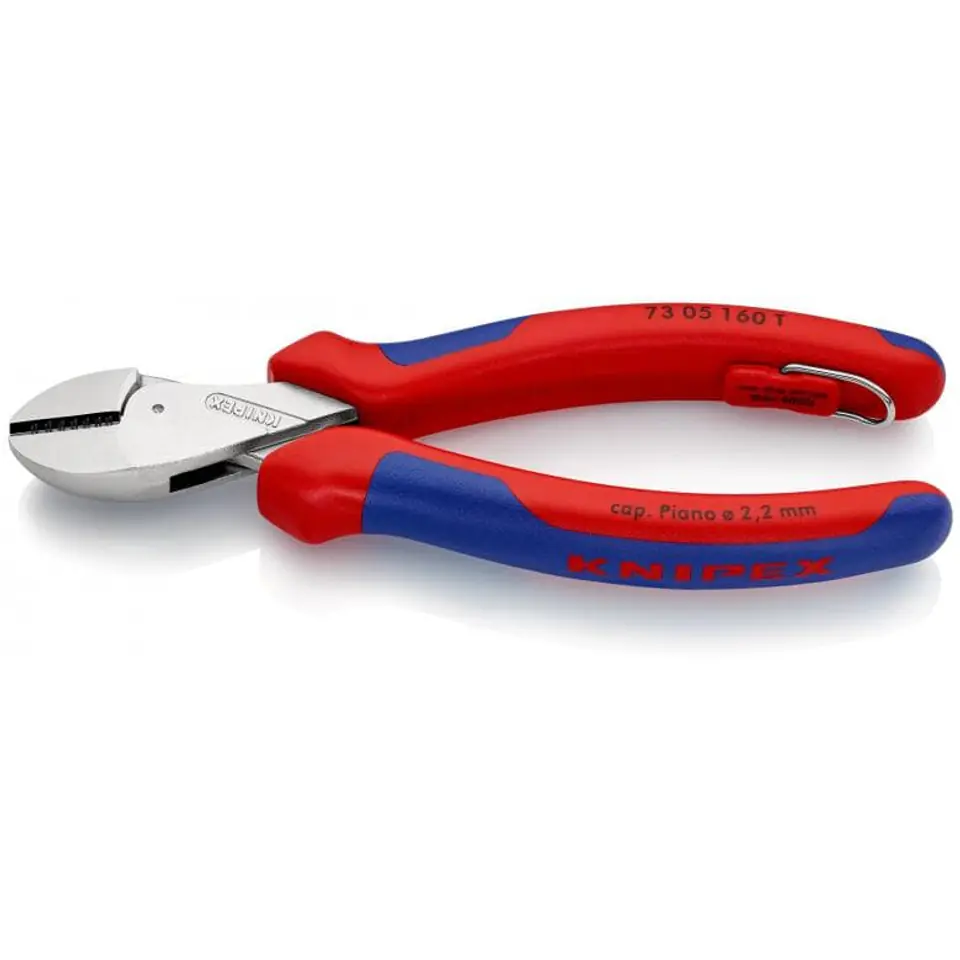

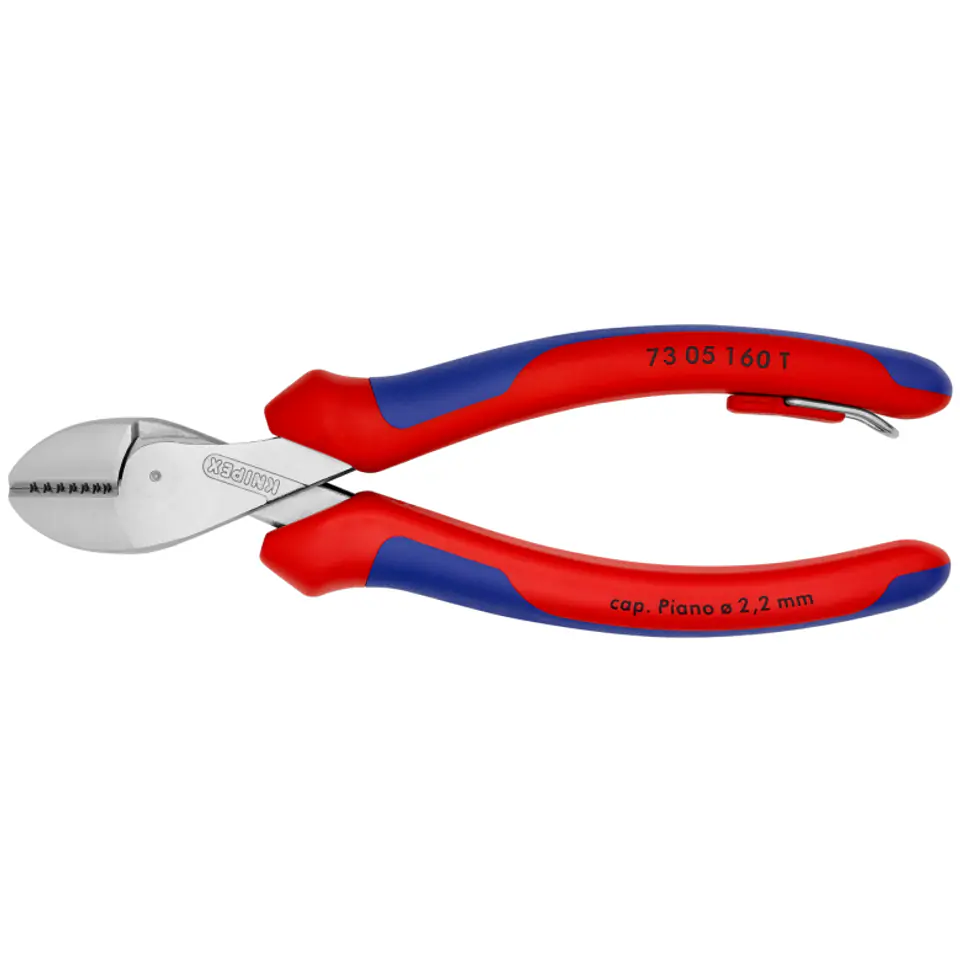

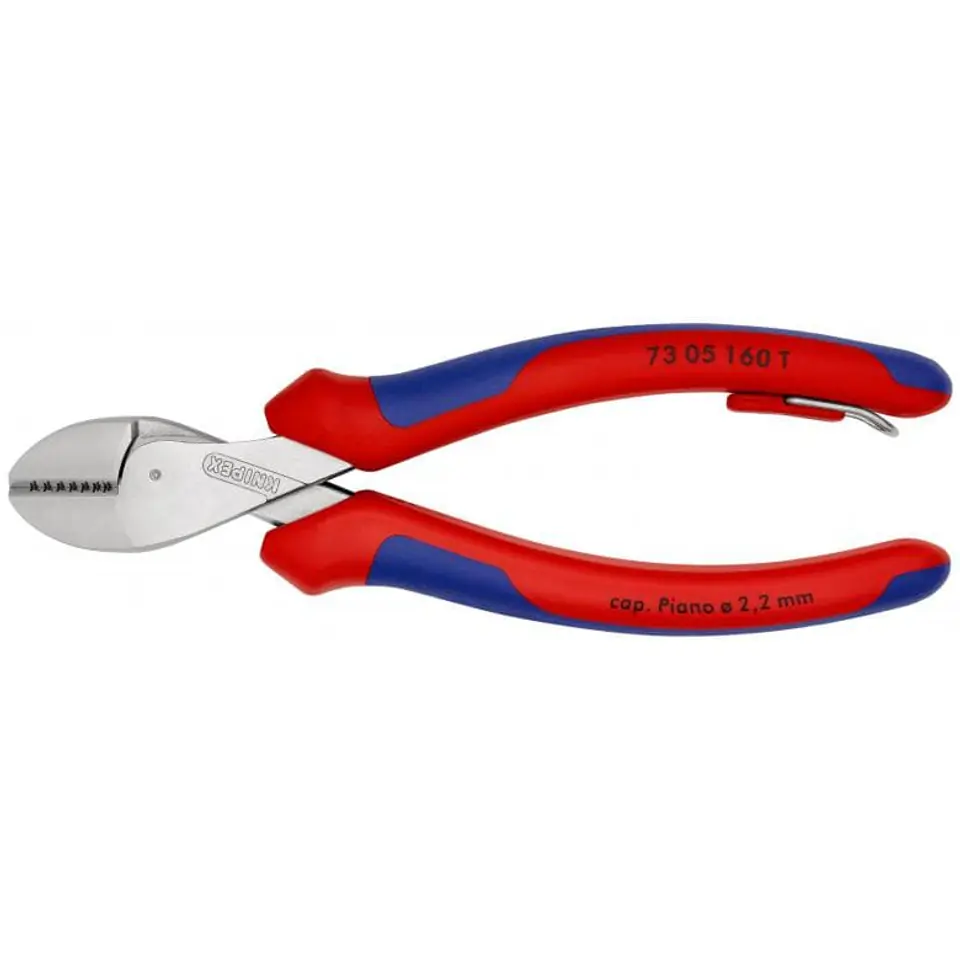

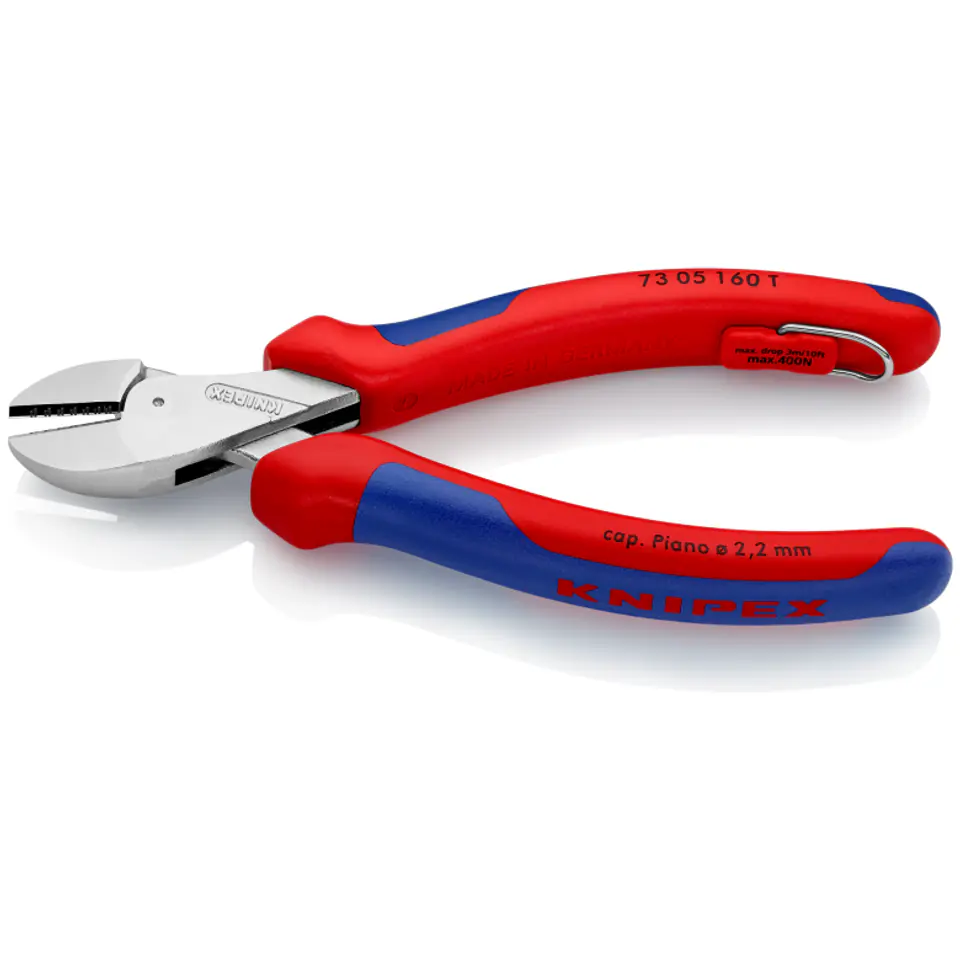

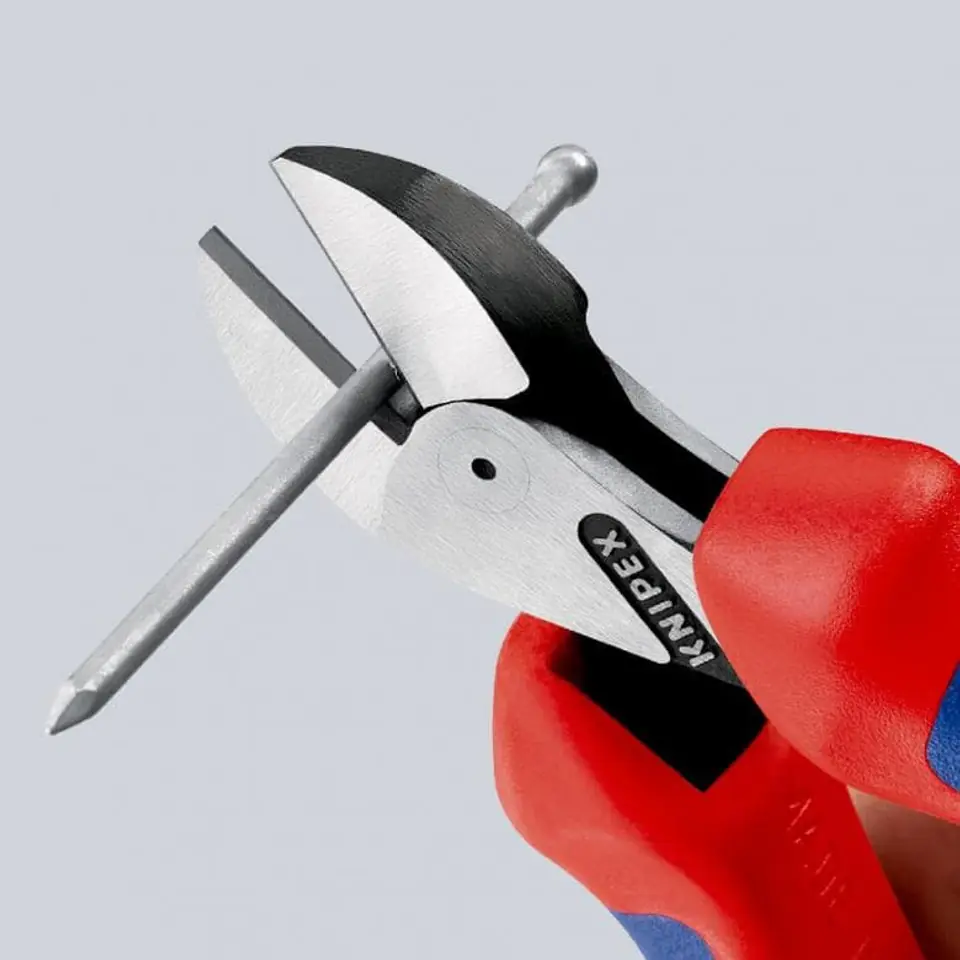

Illustrative photo.
