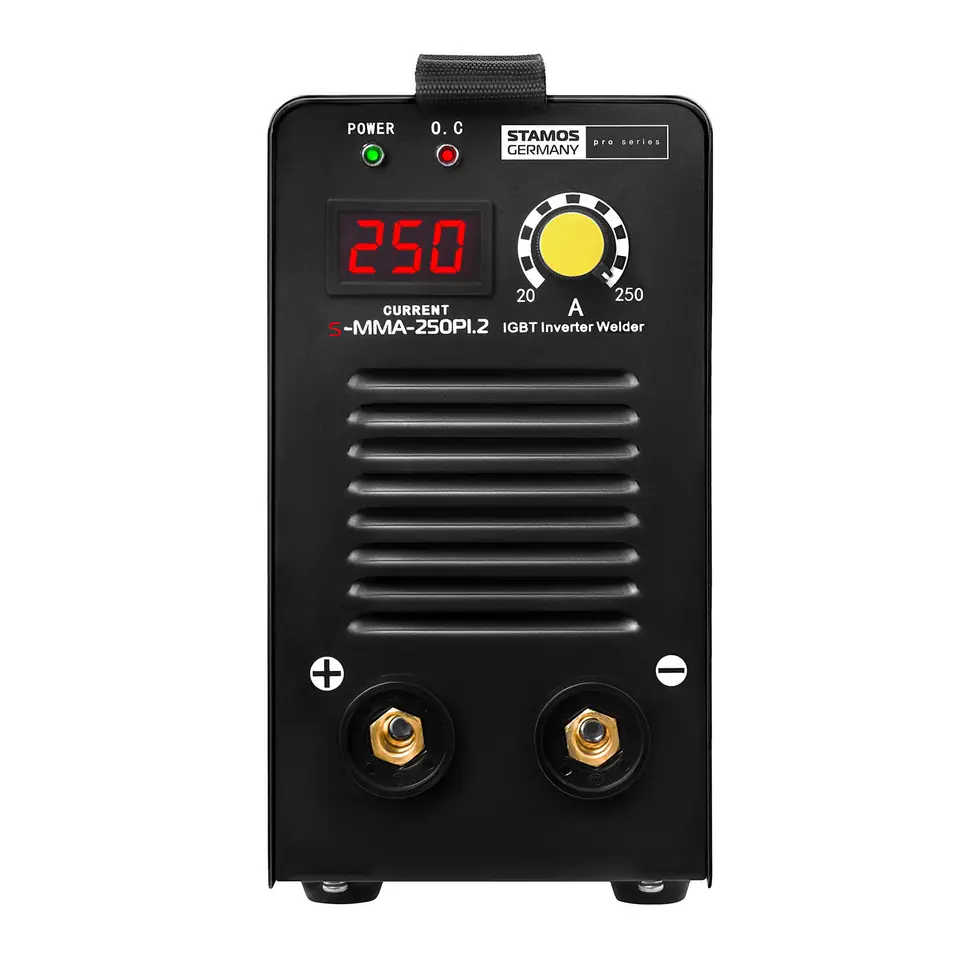

Compact Reliable MMA IGBT Welding Machine with LED Display 250A 230V S-MMA-250PI.2

This product is not available
Availability:
expected delivery
Brand:
Stamos Germany
Product code:
10020228 / 4250928647252

Specification

Sku:1007326
S-MMA-250PI.2 Efficient MM Welding MachineModern IGBT Inverter TechnologyHigh Degree of Trouble-Free Efficient Operation and Fast Switching Between Functions Is Short-Circuit ResistantCeditions:
  • Efficiency - modern IGBT technology helps to achieve a duty cycle of 60%,
  • Mobility - compact size, light weight and comfortable strap make it easy to carry the machine,
  • Convenience - additional functions and long cables have a positive effect on the comfort of work,
  • Versatility - the welding machine will cope with the processing of iron, nickel, cast iron and alloys of copper and steel with a total thickness of 1.5 mm,
  • Safety - indicator lights warn the user during irregularities, and the fan prevents the machine from overheating.
STAMOS devices have been made according to strict European standards and have passed tests for compliance with CE and RoHS. This guarantees a long service life and high quality of the device. Technical parameters:
  • - Model - S-MMA-250PI.2
  • - Catalogue number - 10020228
  • - Article status - New
  • - Voltage - 230 V / 50 Hz
  • - Rated input current - 34 A
  • - Maximum input current - 43 A
  • - Rated input power - 7,8 kVA
  • - Maximum input power - 9.9 kVA
  • - Idle voltage - 56 V
  • - Welding current MMA - 20-250 A
  • - Duty cycle - 60%
  • - Welding current in the duty cycle 60% - 250 A
  • - Welding current in the duty cycle 100% - 194 A
  • - Electrode diameter - 1.6-5 mm
  • - Welding thickness - 1.5-10 mm
  • - Hot Start - Yes
  • - Power factor - 0.93
  • - Efficiency - 80
  • - Cooling - Fan
  • - Insulation class - F
  • - Safety class - IP21
  • - Length cable with MMA holder - 8 m
  • - Length ground wire - 8 m
  • - Length power cord - 2 m
  • - Dimensions (LxWxH) - 35 x 12.5 x 22.5 cm
  • - Weight - 4.8 kg
  • - Shipping dimensions (LxWxH) - 44 x 26 x 29 cm
  • - Shipping weight - 9.7 kg
Device Features:
  • Hot Start consists in temporarily increasing the welding current during arc ignition,
Welding method :
  • MMA (coated electrode) – it will work indoors and outdoors. It does not require shielding gas and is suitable for welding thin materials (from a thickness of 1.5 mm), e.g. copper, iron, nickel, aluminum or alloys m.in steel and cast iron. The S-MMA-250PI.2 is resistant to voltage fluctuations, so that the welds made with it have good operating and mechanical values.
Included:

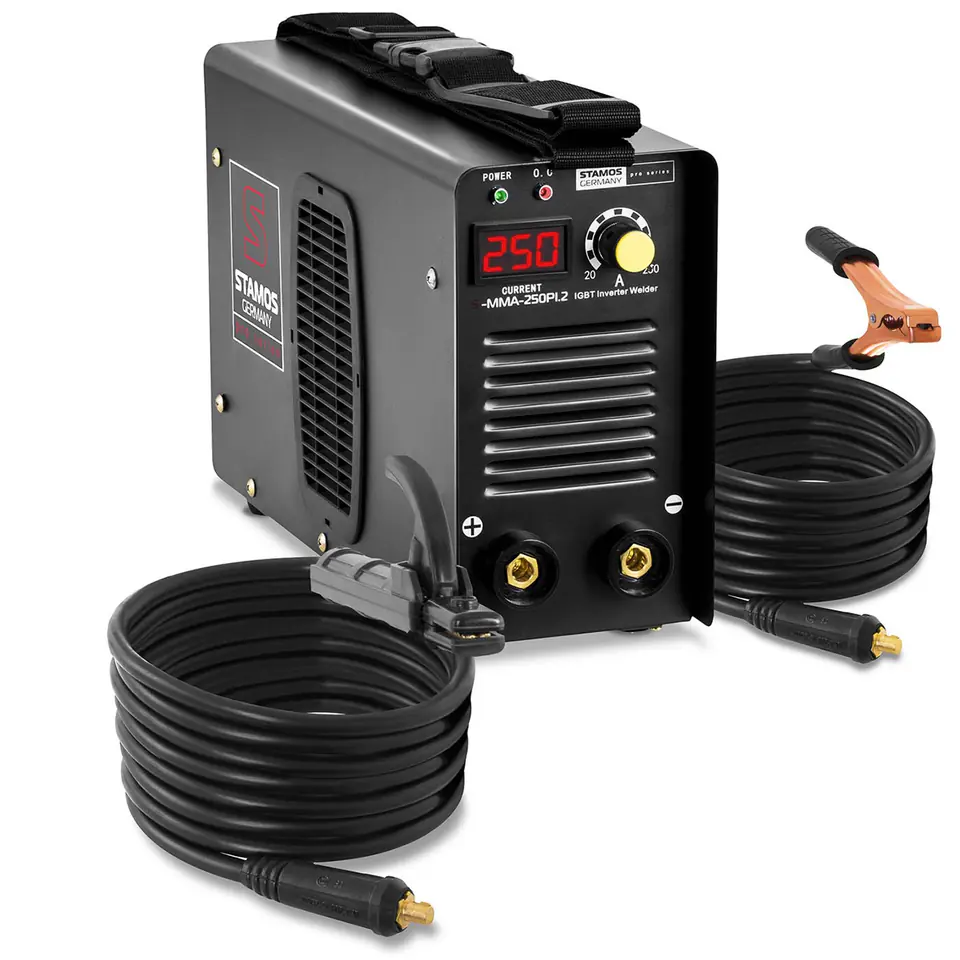

  • - MMA welding machine

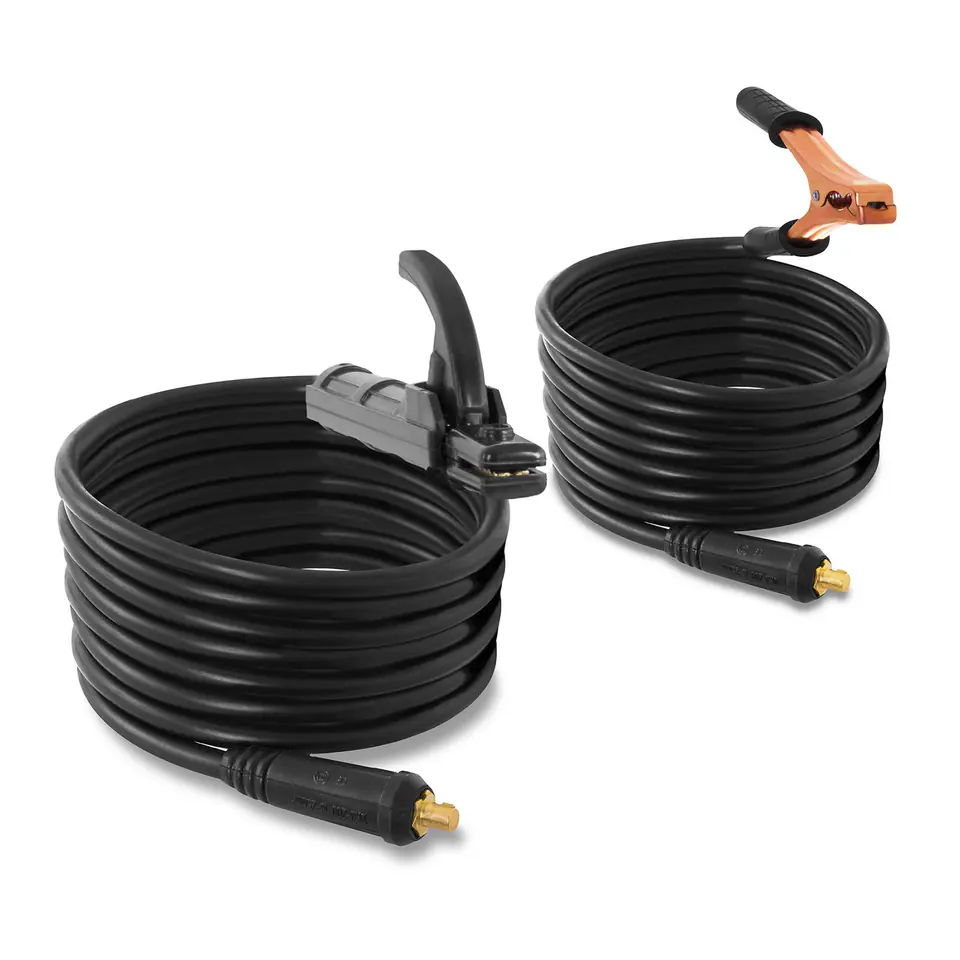

  • - Cable with MMA holder - 8 m
  • - Ground wire with clamp - 8 m
  • - Manual EN

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
