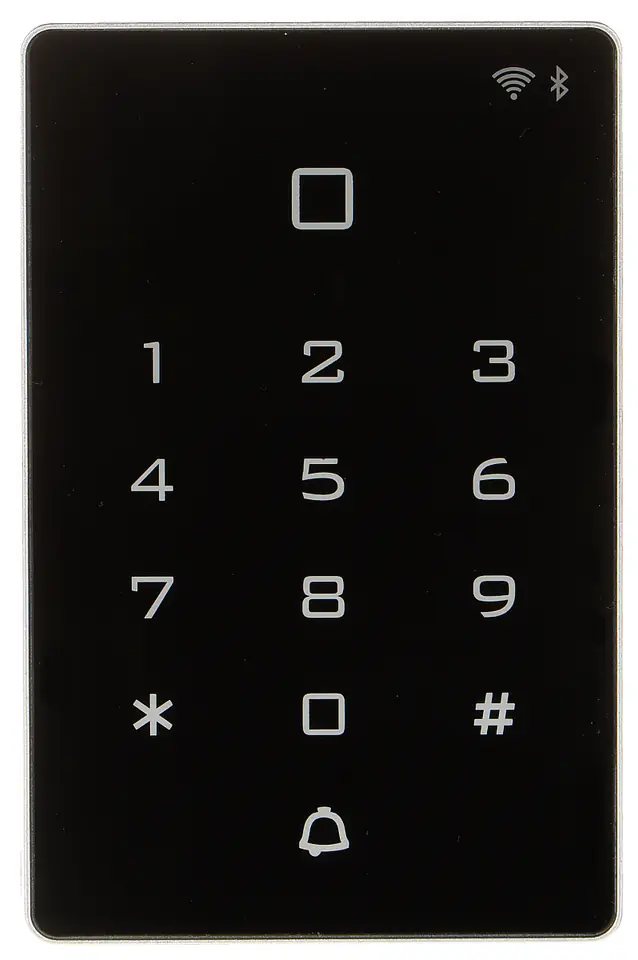

CODE LOCK ATLO-KRMW-555 Tuya Smart Wi-Fi

€29.20
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, May 21 - Fri, May 24
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
ATLO
Product code:
ATLO-KRMW-555 / 5902887063633

Specification

Card read range:.max. 3 cm
Card support:Unique EM 125kHz
Case:Self-extinguishing plastic ABS
Colour:Black + Silver
Communication:Wiegand 26, Wiegand 34
Dimensions:70 x 115 x 16 mm
Maximum current consumption:30 mA (standby), 60 mA (operating)
Mobile phone access:Possible operation via Wi-Fi using the mobile application for iOS, Android : Free Tuya Smart app for Android Free Tuya Smart app for iOS
Operating temperature:-40 °C ... 60 °C
Permissible relative ambient humidity:10  ... 90 % (non-condensing)
Power:12 VDC ± 10%
Producer / brand:ATLO
Relay contact load:3 A / 12 V
Scales:0.14 kg
Sealing:IP68
Selected features:Can be opened from the smartphone application - Wi-Fi module, Wiegand interface 26 / 34 bit, 2000 indexed users, Identification: Card and/or PIN Ability to use codes without associated cards Touch button control Works with opening sensor and output button NO/NC output Number of relay outputs : 1, Operation of electric strikes and electromagnetic locks Support for reversible bolts Possibility of connecting an additional reader of the ATLO-R series (two-way control of the passage) Blue backlight
Warranty:3 years

External, autonomous code lock with RFID reader

Autonomous operation of the device allows the user to:
Open with a card or PIN
Remember saved cards or PINs
Signaling of a door left open
Audible and optical signaling
Can be opened from the smartphone app


The administrator's capabilities are as follows:
Keyboard programming
Add a new tab using the keyboard
Add a new card and enter a PIN
Change a user's PIN
Delete a user's PIN
Lock release time setting
Restore default settings
Can be opened from the smartphone app

REMARK! The device can work outdoors, but under a roof

Tuya is an international home automation platform that allows you to integrate thousands of products from different manufacturers. The system can support all the most popular communication protocols, such as Wi-Fi, Zigbee, Bluetooth

Remark! Before adding the device to the Tuya Smart app, run the pairing procedure *Administrator PIN (factory PIN 999999)#73#Control of the device and schedule settings is possible if the device has access to the Internet

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
