| Card reading range:: | 3 ... 6 cm |
|---|---|
| Card support:: | Unique EM 125kHz |
| Case:: | ABS self-extinguishing plastic |
| Colour:: | white |
| Communication:: | Wiegand 26 |
| Dimensions:: | 72 x 96 x 21 mm |
| Load capacity of relay contacts:: | 1 A / 12 V |
| Manufacturer / brand:: | ATLO |
| Maximum current consumption:: | 25 mA (standby)60 mA (Operating) |
| Operating temperature:: | -45 °C ... 60 °C |
| Permissible relative humidity:: | 10 ... 90 % (non-condensing) |
| Power:: | 12 V DC ± 10% |
| Scales:: | 0.09 kg |
| Sealing:: | IP40 |
| Selected features:: | Number of relay outputs : 1, 2000 indexed users, Identification: Card and/or PIN Blue button backlight Cooperation with the opening sensor and exit button Support for electric strikes and solenoid valves Support for reversible bolts Tamper protection (detection of detachment from the ground and opening of the housing) Alarm output NO/NC output Possibility to attach an additional ATLO-R series reader (double-sided transition control) |
| Warranty:: | 3 years |

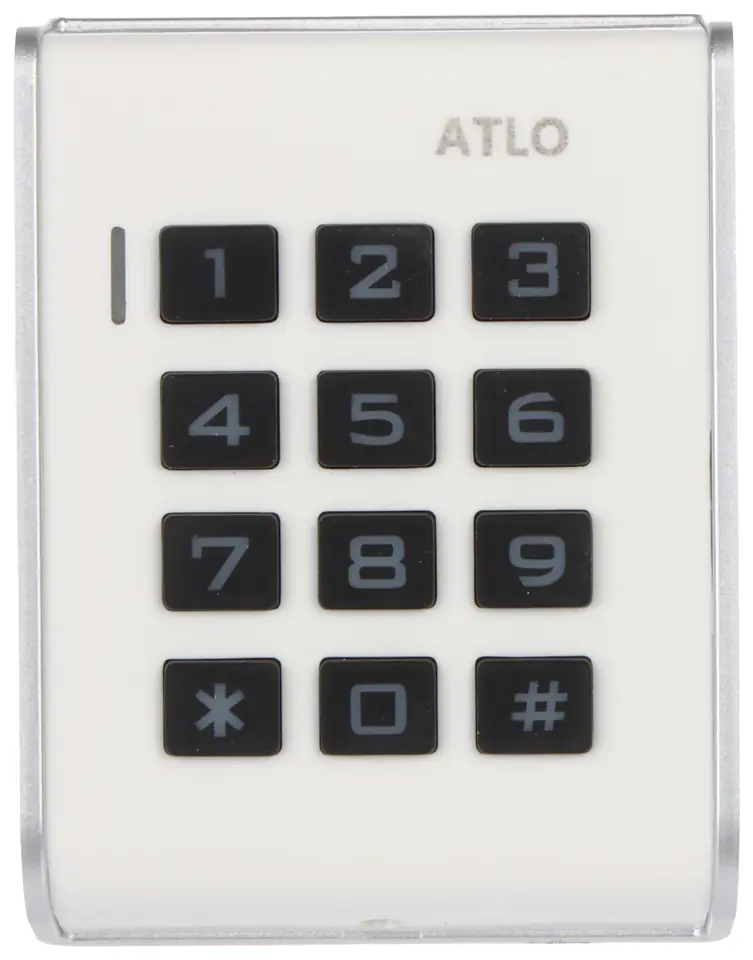

Internal, autonomous code lock with RFID reader
Autonomous operation of the device allows the user:
Opening with a card or PIN
Remembering saved cards or PINs
Indication of the door left open
Audible and optical signalling
The administrator's capabilities are as follows:
Keyboard programming
Add a new tab using the keyboard
