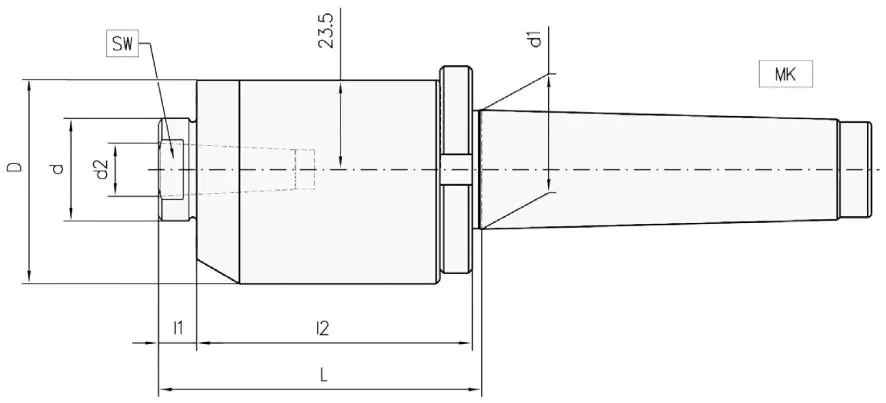

| D: | 27 mm |
|---|---|
| D1: | 31.27 mm |
| D2: | 14 mm |
| Key size: | 22 mm |
| L: | 85 mm |
| L1: | 10 mm |
| L2: | 74 mm |
| Max. radial runout tolerance: | 0.003 mm |
| Max. speed: | 10000 min-1 |
| Max. workpiece weight: | 300 kg |
| Mount: | 4 Morse cone |

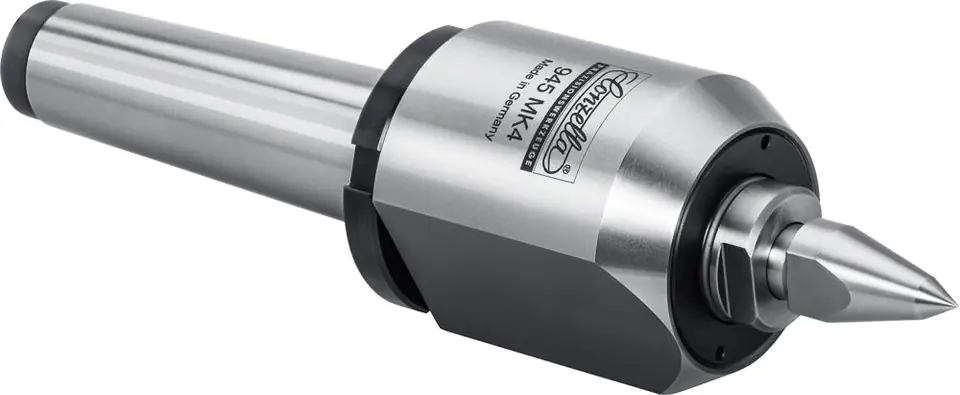

Rotating centering tusk – slim design
Execution: fully hardened and grinded. Ultra-slim design with single-sided flattening. The shaft seal ring prevents dirt from entering, a solid lubricant that lasts the entire service life. Replaceable inserts for maximum versatility.
Application: on CNC machines at high rotational speeds. Also suitable for grinding.
