Clamping bracket B210 3B 254mm Kitagawa

This product is not available
Availability:
expected delivery
Brand:
Kitagawa
Product code:
B210 / 4053569817202

Specification

Max. cable strength:43 kN
Max. clamping force:111 kN
Max. speed:4200 min-1
Mounting range:31-254 mm
Scales:34.5 kg
Transition:75 mm
Type:B 210

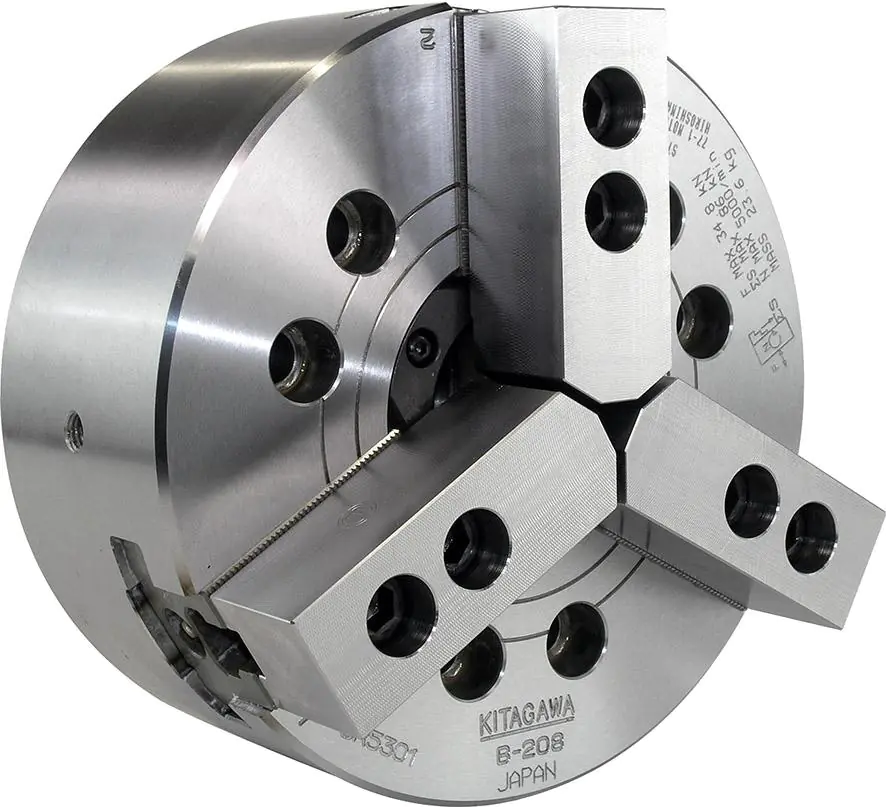

Three-jaw clamping chuck

Design: three-jaw chuck with wedge hook made of high-alloy steel, with hardened, ground guides and through hole. Slight radial runout. Lubrication sockets on each base jaw.
Application: for use on lathes where high clamping forces are required. Up to 20% higher performance than traditional clamping brackets.
Scope of delivery: handle with wedge hook without jaws.
