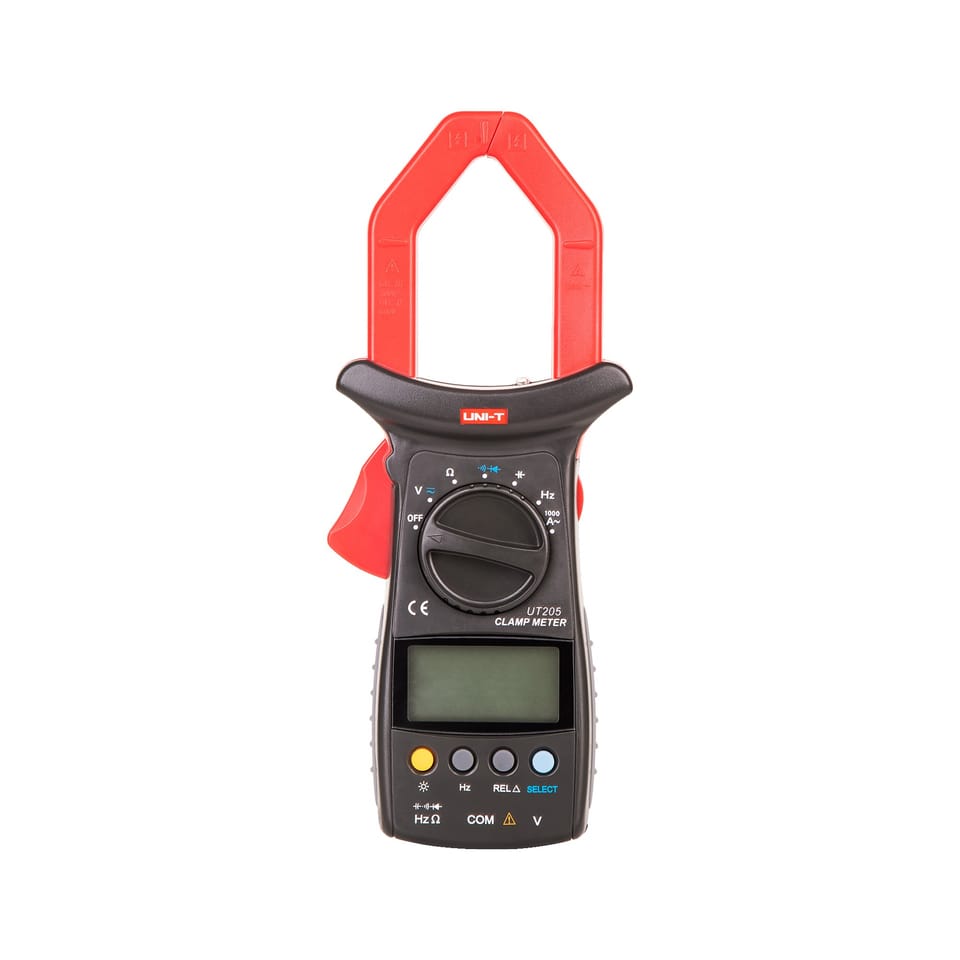

Clamp meter UT205 1LL

MEASURING RANGES
DC voltage: 400 mV / 4 V / 40 V /400 V /600 V ±(0.8%+1)
AC Voltage: 4V / 40V / 400V / 600V ±(1.2%+5)
AC current: 400 A / 1000 A ±(2%+5)
Resistance: 400 Ohm / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm / 40 MOhm ±(1%+2)
Capacitance: 40 nF / 400 nF / 4 μF / 40 μF / 100 μF; ± (3%+5)
Frequency: 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz / 10 MHz ±(0.1%+3)
Fill Rate: 0.1%-99.9%
Checking the continuity of the circuit
Diode Test
ADDITIONAL FEATURES
Automatic change of measuring ranges
Freezing the last reading
Relative measurement function
Automatic shutdown
Backlit LCD screen
Jaw lighting
Low battery indicator
Maximum reading: 4000
GENERAL FEATURES
Jaw Spacing: 40mm
DC voltage input impedance: approx. 10 MOhm
Power supply: 9V battery (6F22)
Jaw opening: 40 mm
Display size: 52 x 27mm
Dimensions: 106.4 x 257 x 52 mm
Weight: 522 g

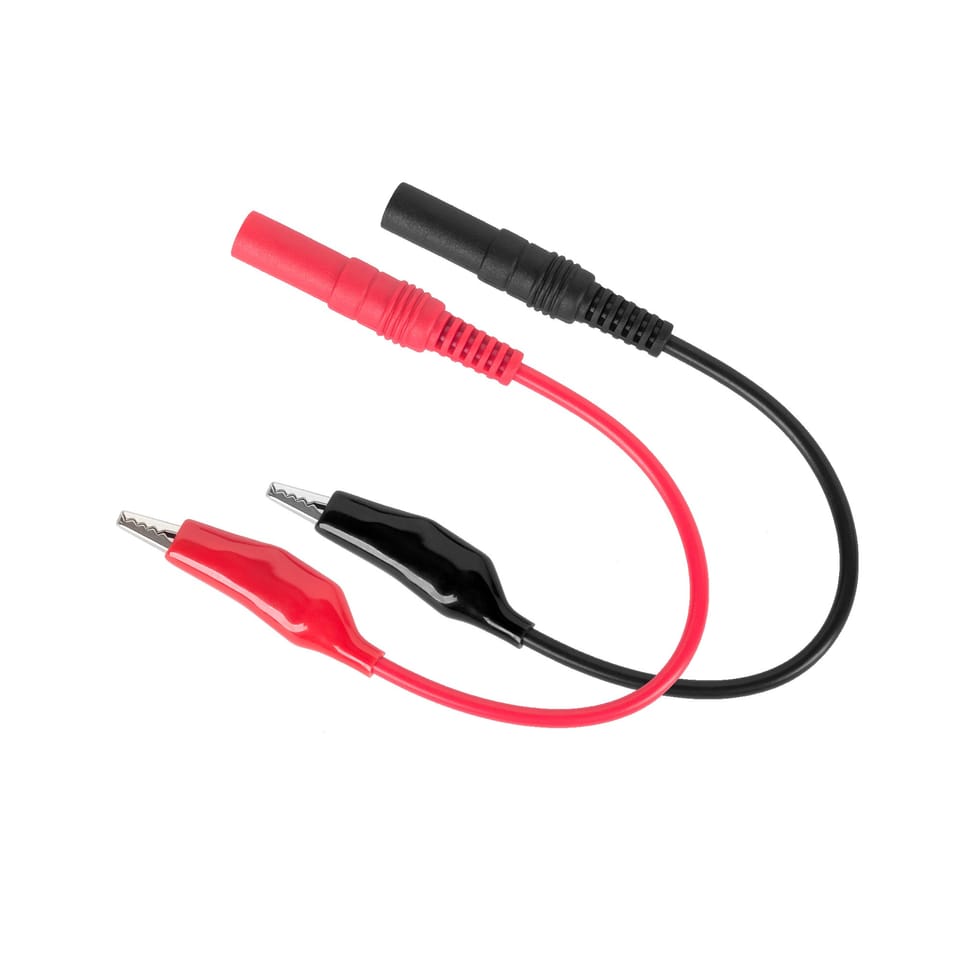

Accessories: battery, test leads, crocodile clips
