For measuring DC and AC voltage, DC and AC current, resistance, frequency.
In addition, it has the following functions: diode test, circuit continuity test with acoustic indication, "Hold" indication memory, low battery indication.
Supplied with measuring cables, carrying case, battery and user manual.
Scale length 3999. CAT II 600 V / CAT III 300 V insulation according to IEC 61010.
Catalogue number14487-0102
SummaryTANGAMPEREMETER LIMIT 21
Resistance accuracy± 1%+ 2 digits
Współcz. pulse filling0.1%-99.9%
Scope of pom. current (DC), max. 400 A
Scope of pom. current (DC), min.40 A
Scope of pom. current (AC), min.40 A
Scope of pom. current (AC), max. 400 A
Resolution pom. current (AC)0.01 A
Thickness30 mm
Scope of pom. resistance, min.400 ?
Scope of pom. resistance, max. 40 M?
Resolution pom. resistance0.1 ?
Accuracy pom. Current (DC)± 2% (+3 digits)
Resolution pom. voltage (DC)0.01 A
Voltage range (AC), min.4 V
Battery quantity1 pc
Scope of pom. frequency, min.10 Hz
Scope of pom. frequencies, max. 1 MHz
Resolution pom. frequency0.001 Hz
Accuracy pom. frequency±0.1 (+3 siffror)
Security classCAT II 600 V
CAT III 300 V
Resolution pom. voltage (DC)0.1 mV
Weight200 g
Resolution pom. voltage (AC)1 mV
Voltage range (DC), min.4 mV
Width76 mm
Accuracy pom. current (AC)± 2.5% (+5 digits)
Length210 mm
Voltage range (AC), max.600 V
Accuracy pom. voltage (AC)± 1% (+5 digits)
Accuracy pom. voltage (DC)± 0.8% (+1 digit)
Battery size6F22 (9 V)
Battery TypeAlkal.
Manufacturer part number21
Voltage range (DC), max.600 V
Quantity/package.1
Packaging1

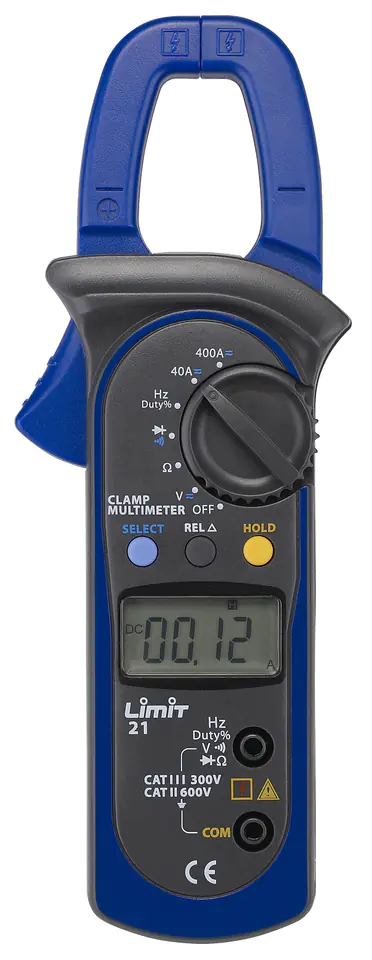

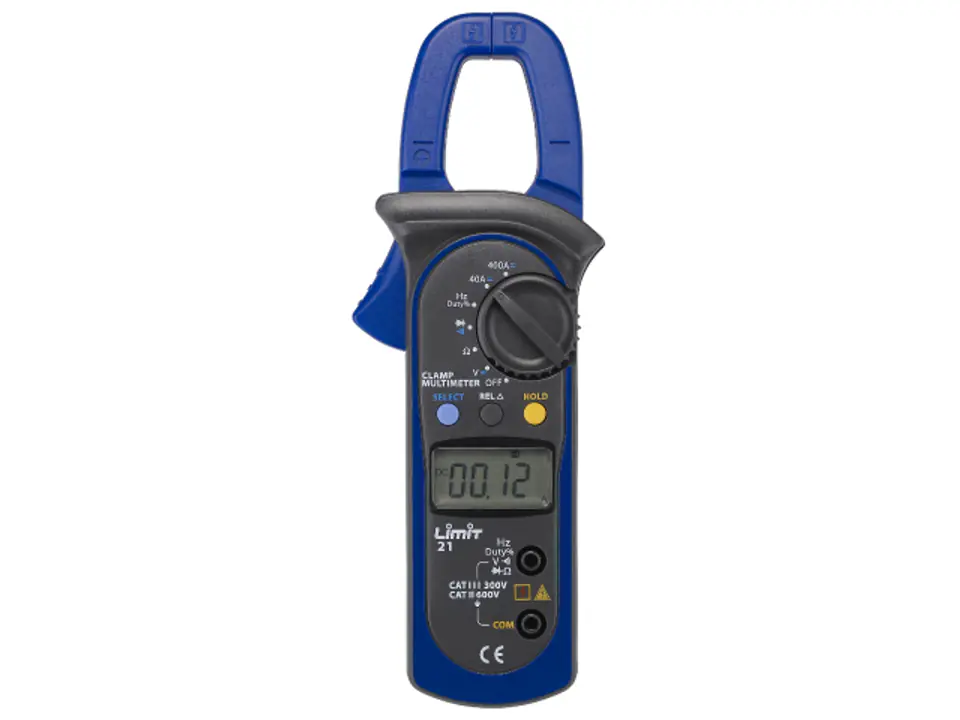

CLAMP AMMETER 21
This product is not available
- Availability:
- expected delivery
- Brand:
- UN
- Product code:
- 144870102 / 7311661448708
Share this product:
Specification
| Ac current measurement accuracy: | ± 2.5% (+5 digits) |
|---|---|
| Ac current measurement resolution: | 0.01 A |
| Ac voltage measurement accuracy: | ± 1% (+ 5 digits) |
| Ac voltage measurement resolution (v): | 0.00 |
| Battery type: | 6F22 (9 volts) |
| Dc voltage measurement resolution: | 0.1 mV |
| Frequency measurement accuracy: | ±0.1 (+3 digits) |
| Frequency measurement resolution (hz): | 0.0010 |
| Frequency measuring range: | 10 Hz - 1 MHz |
| Item number: | 144870102 |
| Length (mm): | 210.00 |
| Number of batteries (pcs): | 1 |
| Package dimensions (mm): | 45x150x245 |
| Package quantity (pcs): | 1 |
| Pulse duty factor: | 0.1%-99.9% |
| Resistance measurement resolution: | 0.1 Ω |
| Thickness (mm): | 30.00 |
| Weight (kg): | 0.000000 |
| Width (mm): | 76.00 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
