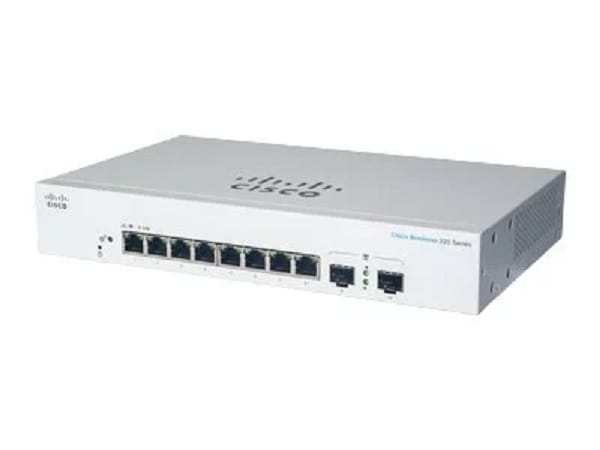

Cisco CBS220-8T-E-2G Managed L2 Gigabit Ethernet (10/100/1000) 1U White
€132.09
Shipping from warehouse: M7
Estimated shipping: Mon, Oct 27 - Thu, Oct 30
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Cisco
- Product code:
- CBS220-8T-E-2G-EU / 0889728344234
Share this product:
Specification
| 10g support: | Yes |
|---|---|
| Ac input frequency: | 50/60 Hz |
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Authentication type: | IEEE 802.1x, RADIUS |
| Auto mdi/mdi-x: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 8 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Yes |
| Broadcast storm control: | Yes |
| Built-in processor: | Yes |
| Depth: | 170 mm |
| Dhcp features: | DHCP client |
| Ethernet lan data rates: | 10,100,1000 Mbit/s |
| Firmware upgradeable: | Yes |
| Flash memory: | 64 MB |
| Flow control support: | Yes |
| Form factor: | 1U |
| Forwarding rate: | 14.88 Mpps |
| Head-of-line (hol) blocking: | Yes |
| Heat dissipation: | 20.13 BTU/h |
| Height: | 44 mm |
| Igmp snooping: | Yes |
| Installed sfp modules quantity: | 2 |
| Internal memory: | 256 MB |
| Ip routing: | Yes |
| Jumbo frames: | 9216 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Loop protection: | Yes |
| Mac address filtering: | Yes |
| Mac address table: | 8192 entries |
| Management protocols: | SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP |
| Multicast mac address table: | 8192 entries |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.3at, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1x, IEEE 802.1w, IEEE 802.3u, IEEE 802.1D, IEEE 802.3z, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af |
| Number of queues: | 8 |
| Number of vlans: | 256 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 50 °C |
| Packet buffer memory: | 4.1 MB |
| Port mirroring: | Yes |
| Power over ethernet (poe): | No |
| Product colour: | White |
| Quality of service (qos) support: | Yes |
| Queue scheduling algorithms: | Weighted Round Robin (WRR) |
| Rack mounting: | Yes |
| Reset button: | Yes |
| Security algorithms: | SNMPv2, SNMP, SNMPv3 |
| Spanning tree protocol: | Yes |
| Ssh/ssl support: | Yes |
| Storage relative humidity (h-h): | 10 - 90% |
| Storage temperature (t-t): | -20 - 70 °C |
| Switch layer: | L2 |
| Switch type: | Managed |
| Switching capacity: | 20 Gbit/s |
| System event log: | Yes |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Weight: | 1.16 kg |
| Width: | 279 mm |
