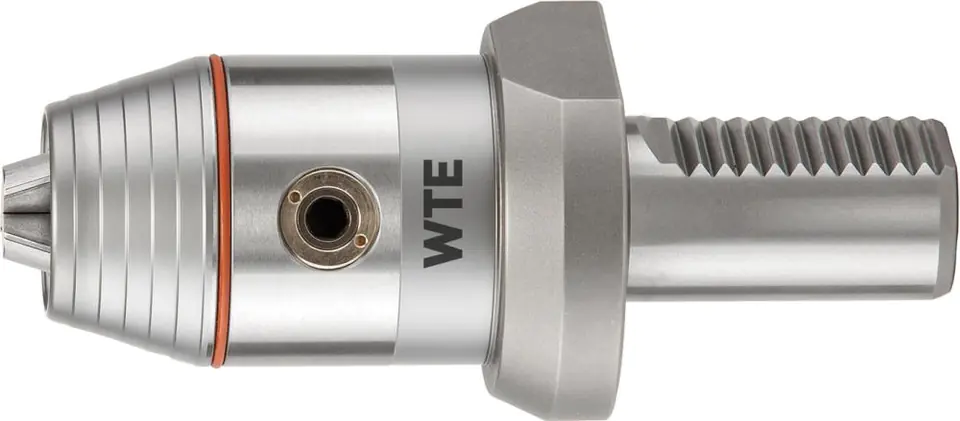

VDI CNC chuck
General tip: VDI tool holders for CNC lathes made of heat-treated steel with a strength of min. 900 N/mm2, hardened to 56 ± 2 HRC and surface hardened min. 0.5 mm. In addition, all VDI tool holders are equipped with an h6 cylindrical shank with internal coolant supply and adjustable spherical nozzles.
The grip and the contact surface are hardened and ground, with a coolant supply hole.
Other versions available on request.

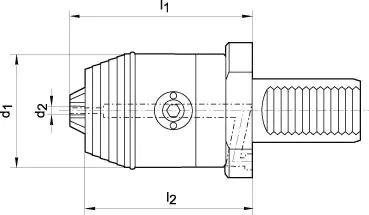

All photographs, technical drawings and dimensions are also given in the technical annex at www.format-quality.com.
Design: with cylindrical shank and central coolant supply. Modular design. Fastening with a hexagonal wrench allows for a significant increase in clamping force compared to traditional chucks.
Scope of delivery: CNC chuck with sealing washer for drills with a cooling channel with a diameter of 3-6 mm.
