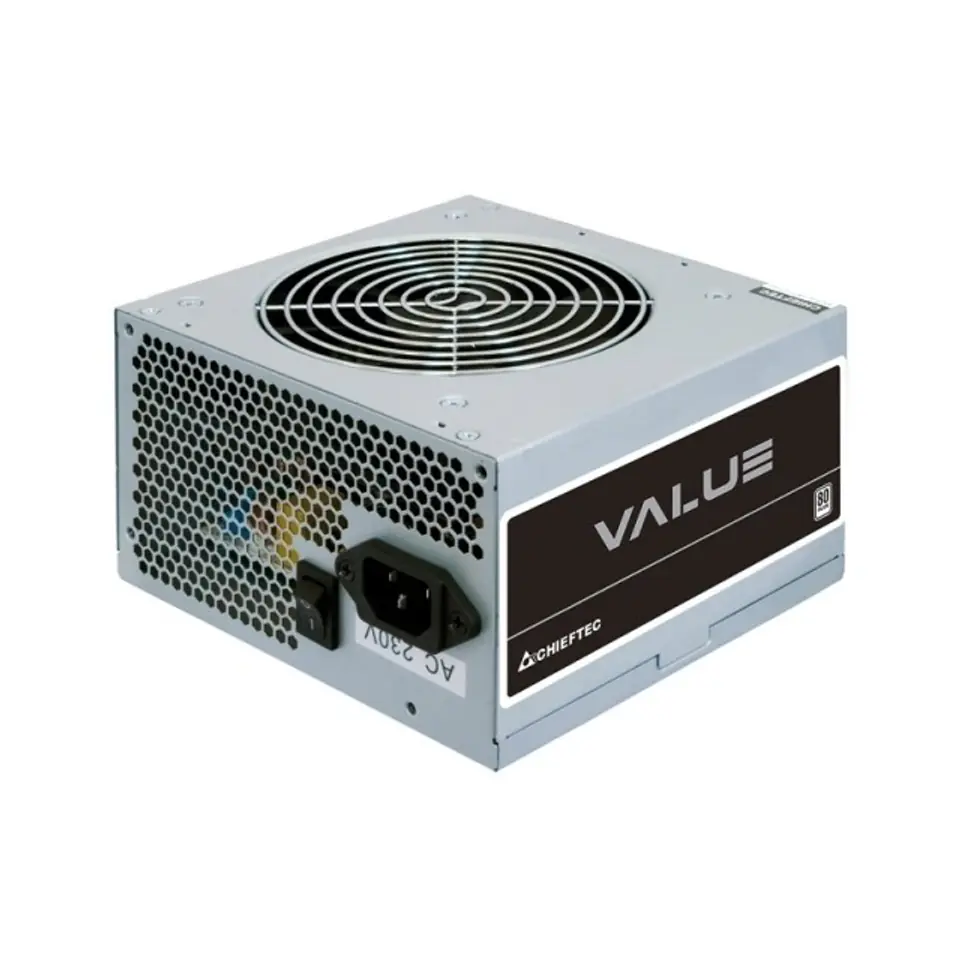

Chieftec Value APB-600B8 power supply unit 600 W 20+4 pin ATX ATX Steel
€54.43
Shipping from warehouse: M7
Estimated shipping: Mon, Apr 29 - Thu, May 2
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Chieftec
- Product code:
- APB-600B8 / 0753263077813
Share this product:
Specification
80 plus certification: | 80 PLUS |
---|---|
Ac input frequency: | 47 - 63 Hz |
Ac input voltage: | 200 - 240 V |
Atx version: | 2.3 |
Cabling type: | Non-Modular |
Combined power (-12v): | 3.6 W |
Combined power (+12v): | 552 W |
Combined power (+3.3v): | 120 W |
Combined power (+5v): | 120 W |
Combined power (+5vsb): | 12.5 W |
Cooling type: | Active |
Depth: | 140 mm |
Eps power connector (4+4 pin): | Yes |
Eps power connector (8-pin): | No |
Fan diameter: | 12 cm |
Fan location: | Top |
Floppy disk drive cable length: | 15 cm |
Floppy disk drive connector: | Yes |
Harmonized system (hs) code: | 84733020 |
Height: | 87 mm |
Max output current (-12v): | 0.3 A |
Max output current (+12v1): | 46 A |
Max output current (+3.3v): | 20 A |
Max output current (+5v): | 20 A |
Max output current (+5vsb): | 2.5 A |
Maximum input current (@220v): | 4.5 A |
Motherboard power cable length: | 55 cm |
Motherboard power connector: | 20+4 pin ATX |
Number of fans: | 1 fan(s) |
Number of sata power connectors: | 4 |
On/off switch: | Yes |
Package weight: | 1.56 kg |
Pci express power connectors (6+2 pin): | 2 |
Peak power: | 600 W |
Peripheral (molex) power cable length: | 500 mm, 150 |
Peripheral (molex) power connectors (4-pin): | 2 |
Power supply unit (psu) form factor: | ATX |
Product colour: | Steel |
Purpose: | PC |
Sata power cable length: | 150, 500 |
Sustainability certificates: | RoHS, CE |
Total power: | 600 W |
Weight: | 1.42 kg |
Width: | 150 mm |
