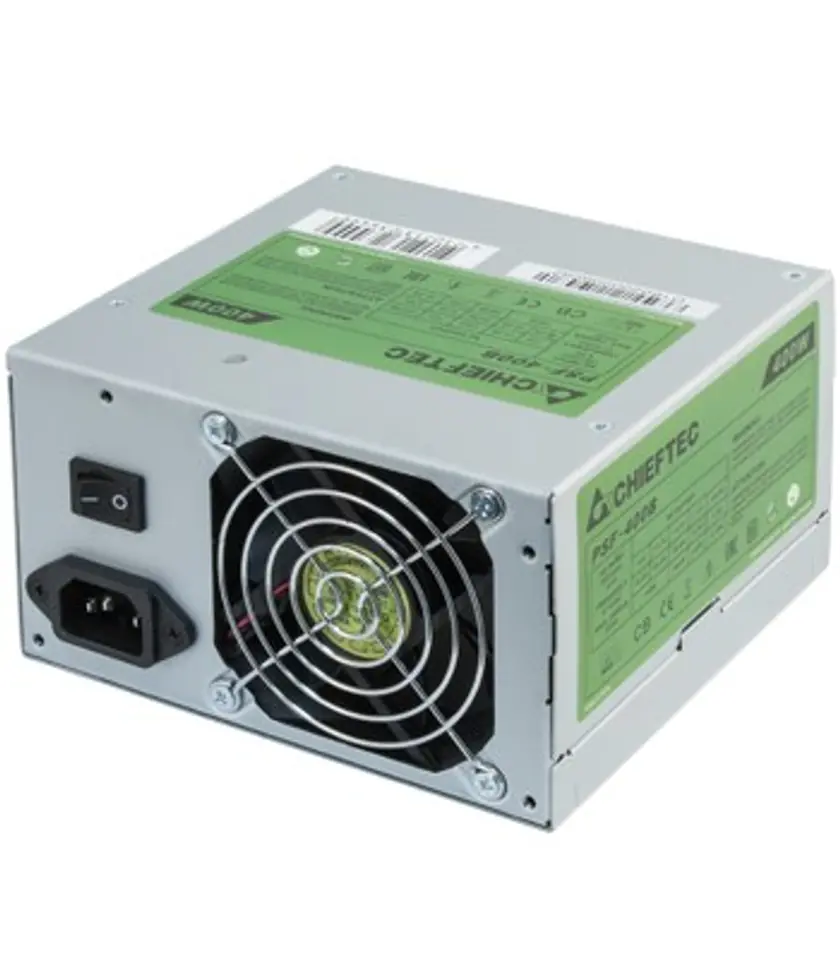

Chieftec PSF-400B power supply unit 400 W 24-pin ATX ATX Metallic
PLN 240.31
Shipping from warehouse: A3
Estimated shipping: Mon, Apr 28 - Thu, May 1
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- Chieftec
- Product code:
- PSF-400B / 4710713234499
Share this product:
Specification
| 80 plus certification: | 80 PLUS Bronze |
|---|---|
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx version: | 2.3 |
| Cabling type: | Non-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 360 W |
| Combined power (+3.3v): | 100 W |
| Combined power (+5v): | 100 W |
| Combined power (+5vsb): | 12.5 W |
| Cooling type: | Active |
| Depth: | 140 mm |
| Efficiency: | 87% |
| Eps power connector (8-pin): | Yes |
| Fan diameter: | 8 cm |
| Fan location: | Side |
| Floppy drive power connector: | 1 |
| Harmonized system (hs) code: | 84733020 |
| Height: | 87 mm |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v1): | 30 A |
| Max output current (+3.3v): | 16 A |
| Max output current (+5v): | 15 A |
| Max output current (+5vsb): | 2.5 A |
| Motherboard power cable length: | 45 cm |
| Motherboard power connector: | 24-pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 4 |
| Pci express power connectors (6-pin): | 1 |
| Peripheral (molex) power connectors (4-pin): | 3 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Overload, Short circuit |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Metallic |
| Purpose: | PC |
| Sustainability certificates: | RoHS, ENERGY STAR |
| Total power: | 400 W |
| Width: | 150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
