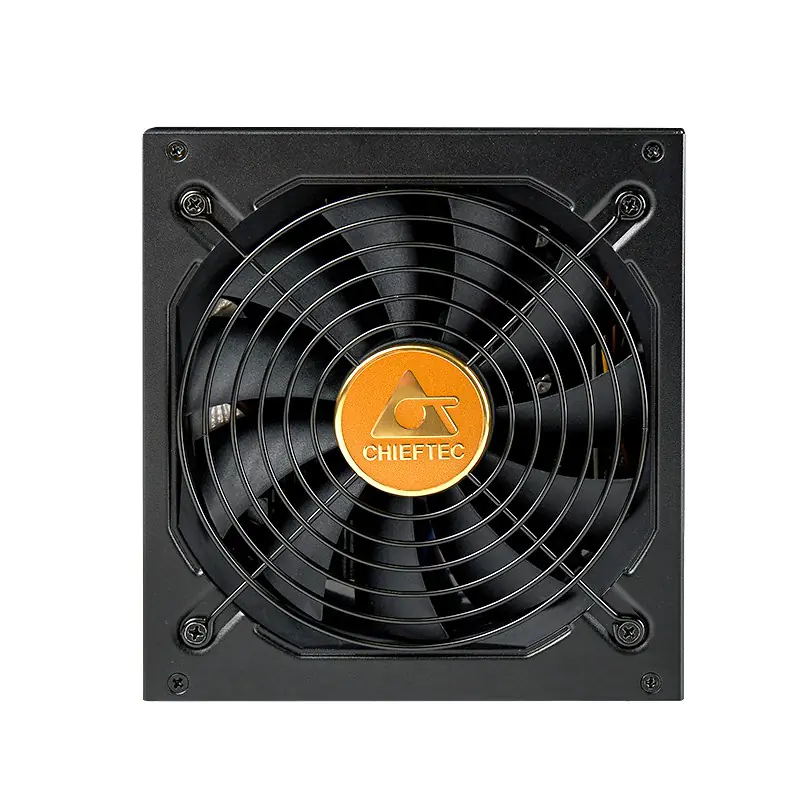

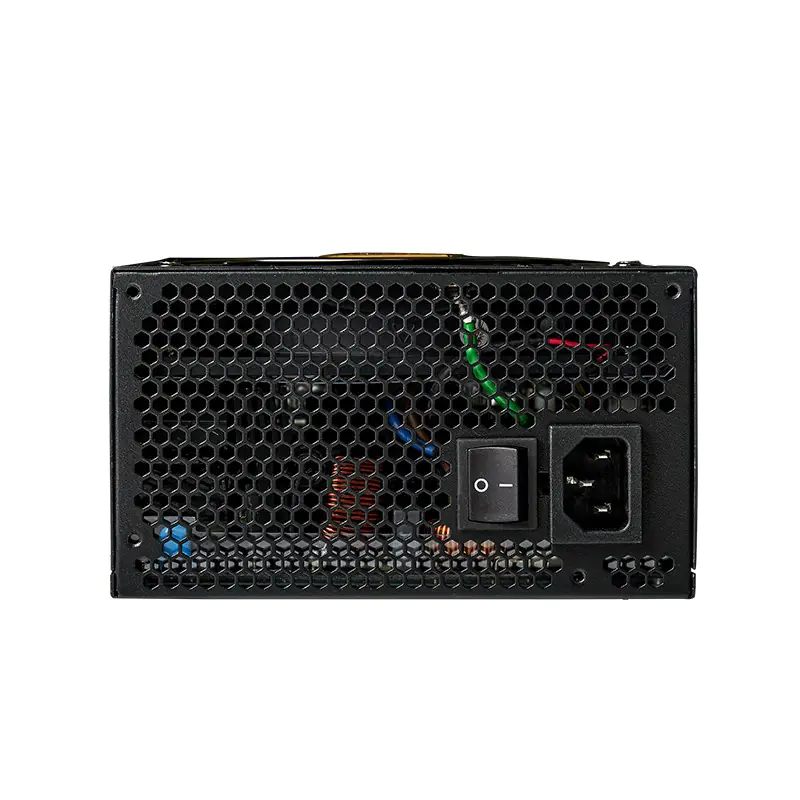

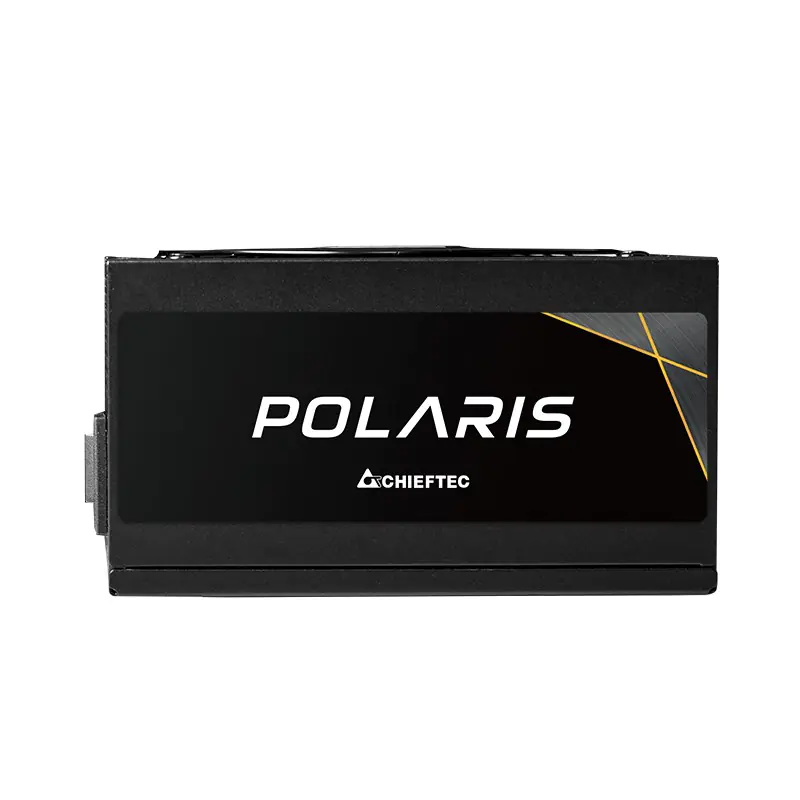

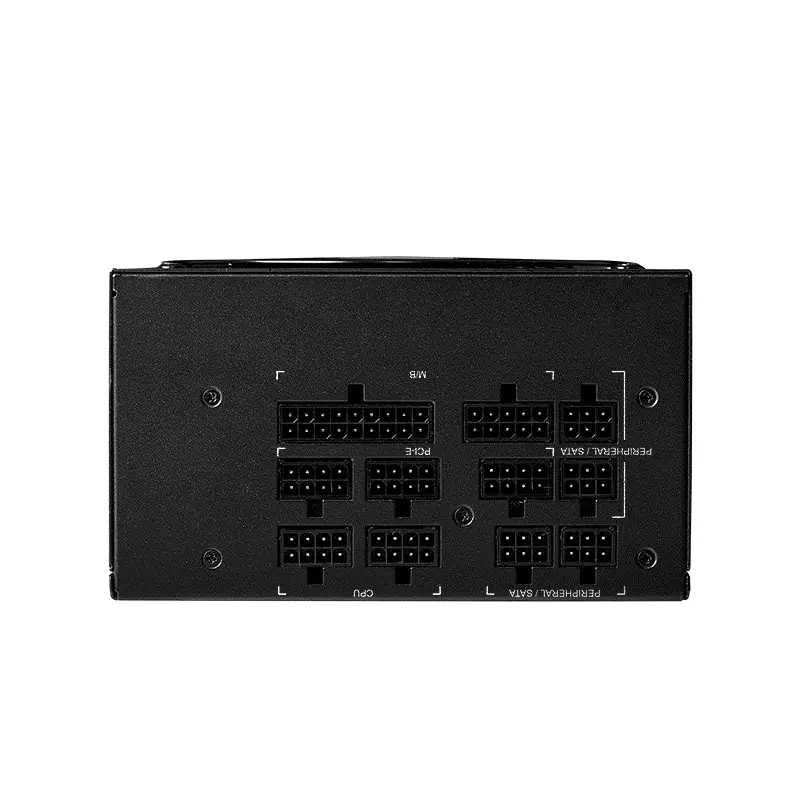

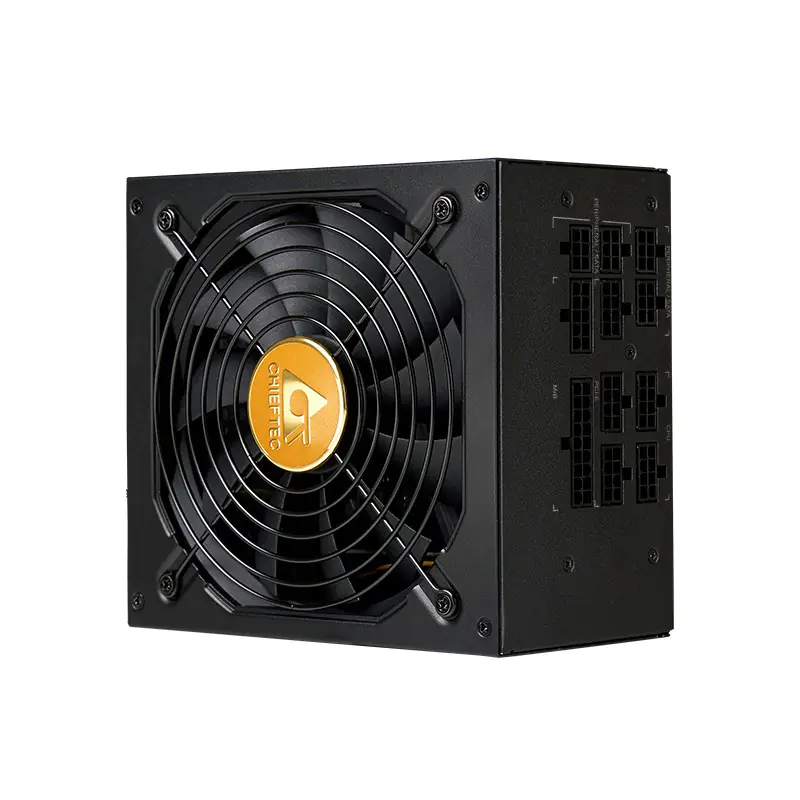

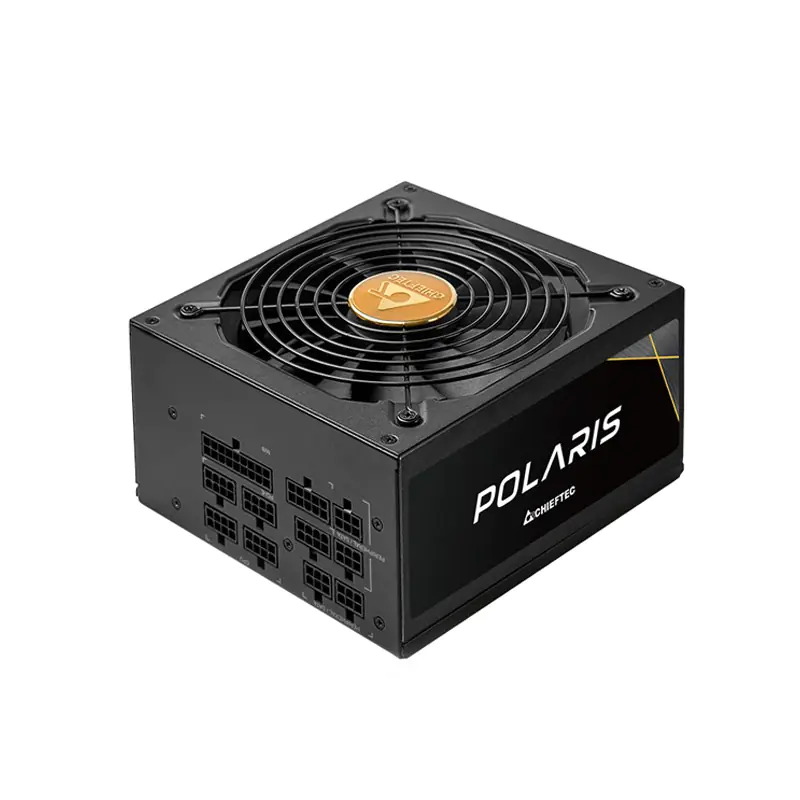

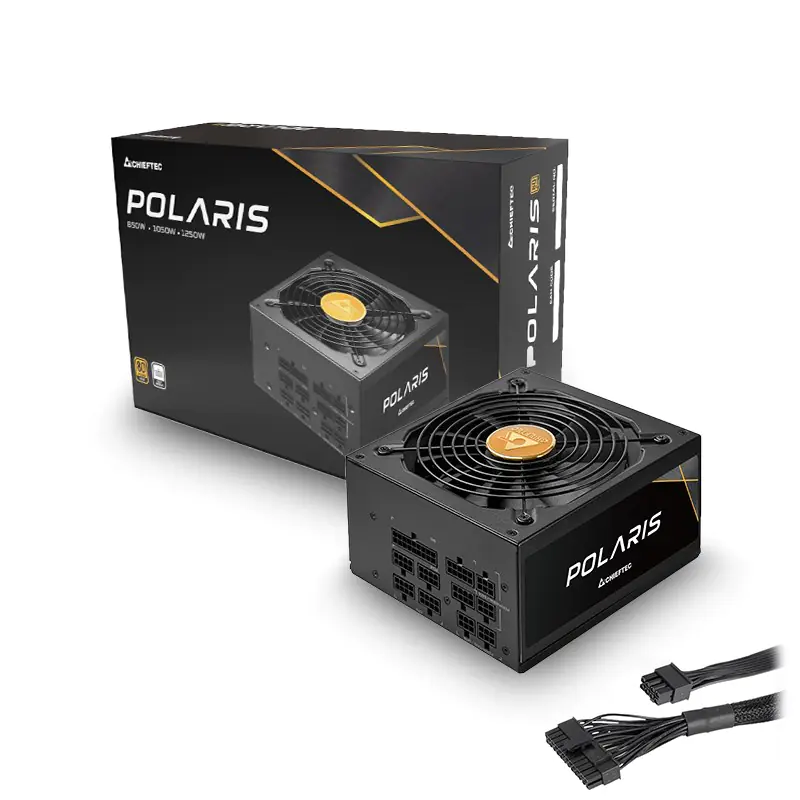

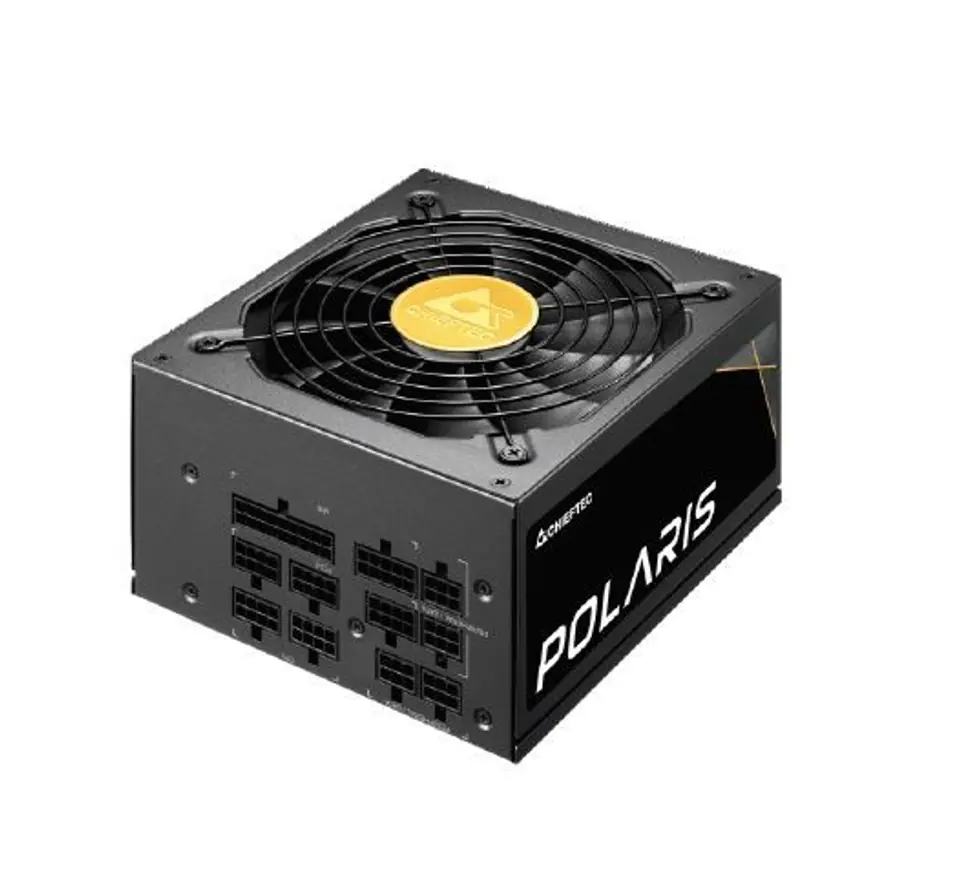

Chieftec PPS-1050FC power supply unit 1050 W 20+4 pin ATX ATX Black
€137.54
Shipping from warehouse: A3
Estimated shipping: Fri, May 10 - Mon, May 13
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Chieftec
- Product code:
- PPS-1050FC / 0753263077363
Share this product:
Specification
| 80 plus certification: | 80 PLUS Gold |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx version: | 2.3 |
| Cabling type: | Fully-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 1050 W |
| Combined power (+3.3v): | 120 W |
| Combined power (+5v): | 120 W |
| Combined power (+5vsb): | 15 W |
| Cooling type: | Active |
| Depth: | 160 mm |
| Eps power connector (4+4 pin): | Yes |
| Fan diameter: | 14 cm |
| Fan location: | Top |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 87.5 A |
| Max output current (+3.3v): | 22 A |
| Max output current (+5v): | 22 A |
| Max output current (+5vsb): | 3 A |
| Motherboard power cable length: | 65 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 12 |
| On/off switch: | Yes |
| Package weight: | 3.4 kg |
| Pci express power cable length: | 60 cm |
| Pci express power connectors (6+2 pin): | 6 |
| Peripheral (molex) power cable length: | 100, 550 |
| Peripheral (molex) power connectors (4-pin): | 4 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Overheating, Over power, Under voltage, Over current, Short circuit, Over voltage |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Sata power cable length: | 550, 100 |
| Total power: | 1050 W |
| Weight: | 2.6 kg |
| Width: | 150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
