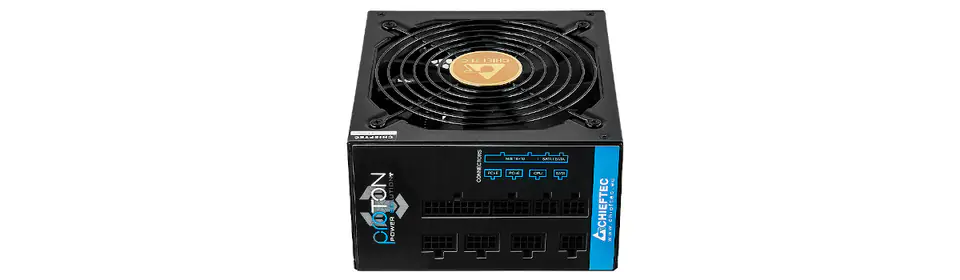

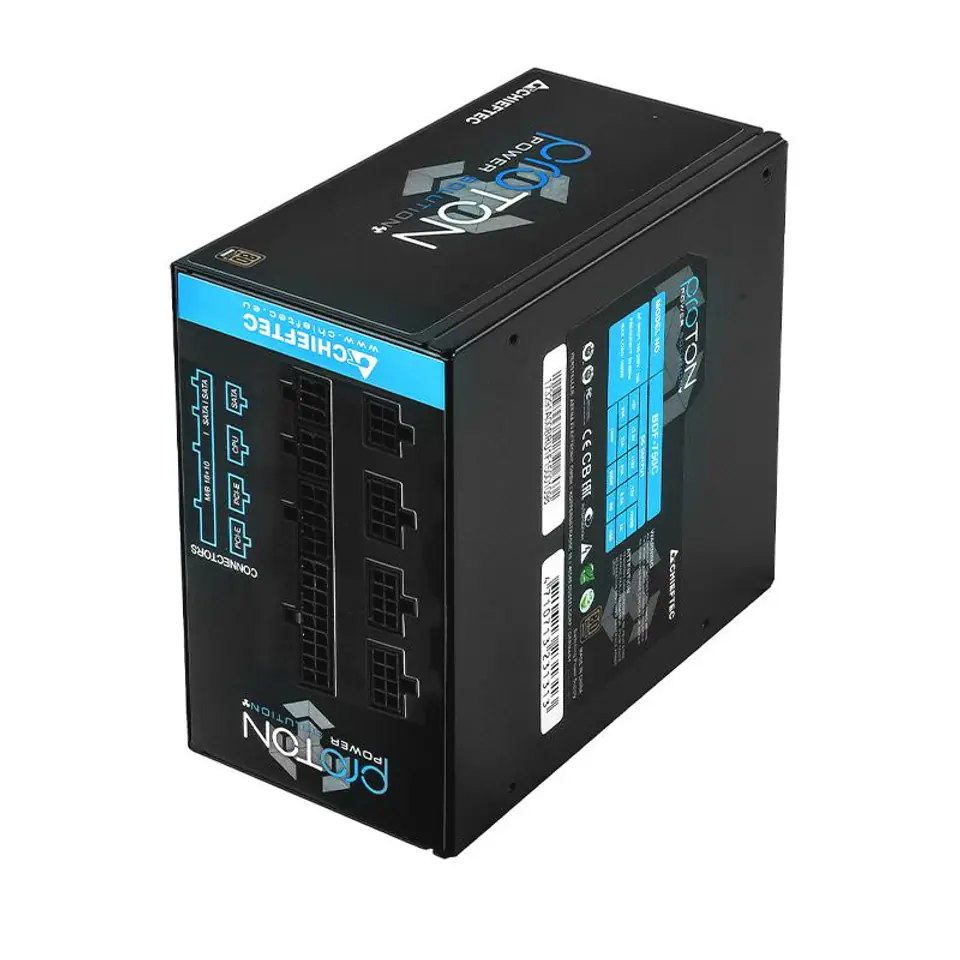

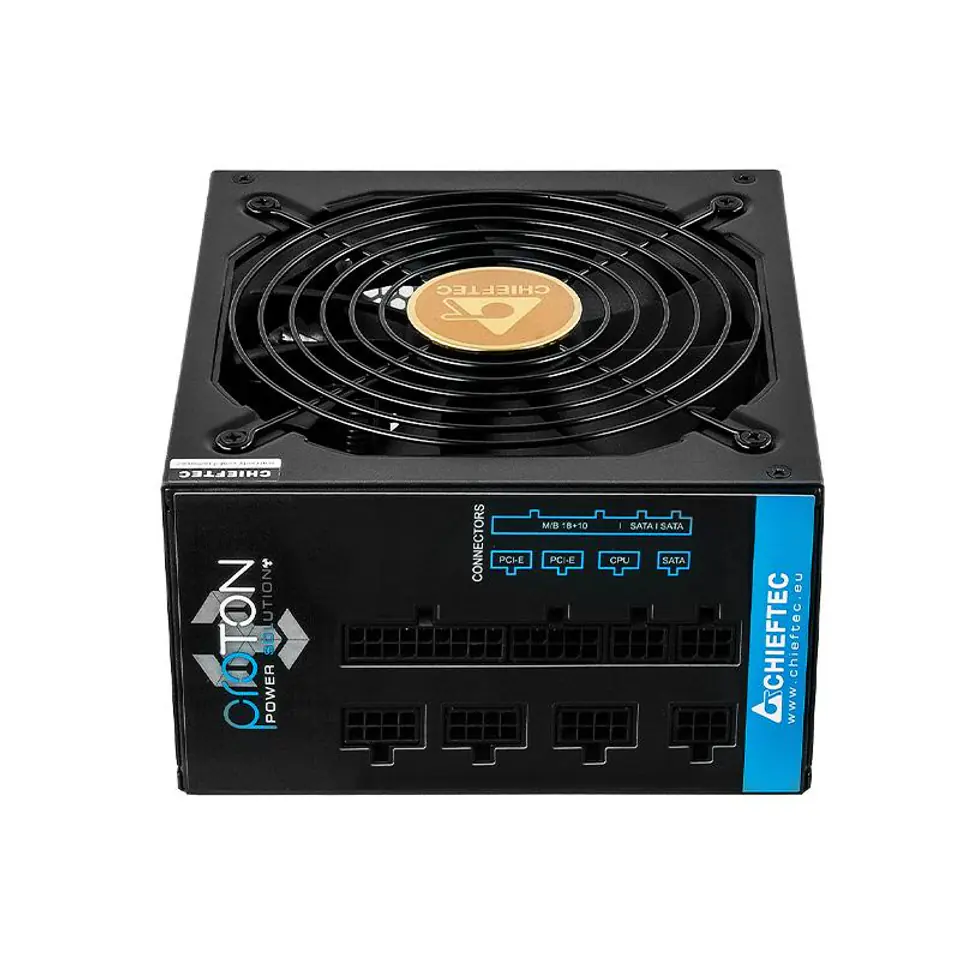

Chieftec BDF-750C power supply unit 750 W PS/2 Black
This product is not available
- Availability:
- expected delivery
- Brand:
- Chieftec
- Product code:
- BDF-750C / 4710713231290
Share this product:
Specification
| 80 plus certification: | 80 PLUS Bronze |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 115 - 230 V |
| Atx version: | 2.3 |
| Combined power (+3.3v): | 120 W |
| Combined power (+5v): | 120 W |
| Cooling type: | Active |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 140 mm |
| Efficiency: | 85% |
| Fan diameter: | 14 cm |
| Fan location: | Top |
| Floppy disk drive connector: | Yes |
| Height: | 87 mm |
| Manual: | Yes |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 62.5 A |
| Max output current (+3.3v): | 22 A |
| Max output current (+5v): | 22 A |
| Max output current (+5vsb): | 2.5 A |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 6 |
| On/off switch: | Yes |
| Pci express power connectors (6+2 pin): | 4 |
| Peripheral (molex) power connectors (4-pin): | 3 |
| Power factor: | 0.9 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Overload, Under voltage, Over current, Overheating, Short circuit, Over voltage |
| Power supply unit (psu) form factor: | PS/2 |
| Product colour: | Black |
| Total power: | 750 W |
| Warranty card: | Yes |
| Width: | 150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
