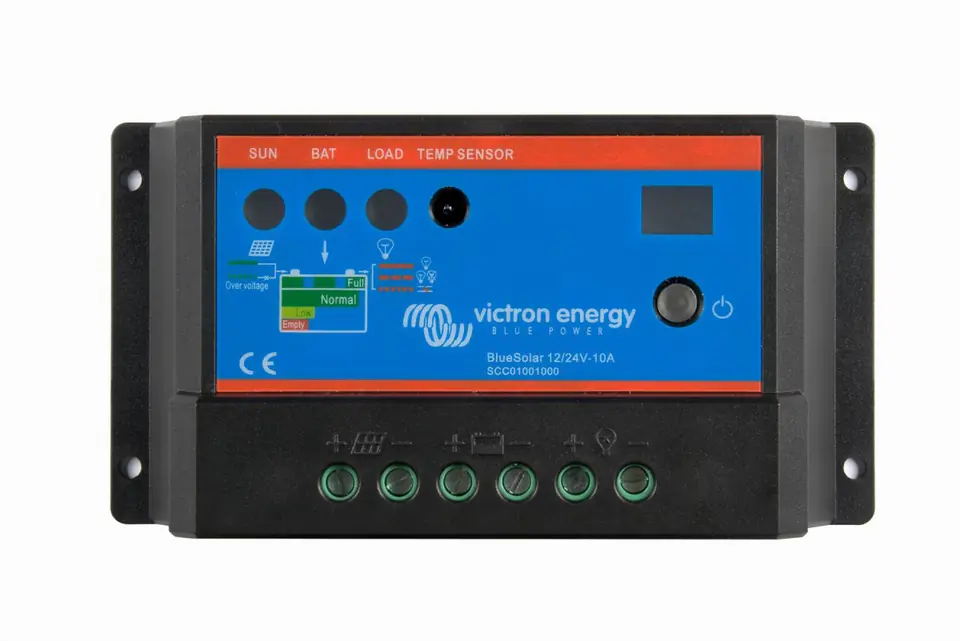

Charging regulator VICTRON ENERGY BlueSolar PWM Light 12/24V-10A (SCC010010000)
€30.42
Shipping from warehouse: A3
Estimated shipping: Thu, May 16 - Mon, May 20
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Victron Energy
- Product code:
- SCC010010000 / 8719076025276
Share this product:
Specification
| Awg wire size: | 10 |
|---|---|
| Brand compatibility: | Victron Energy |
| Built-in display: | LCD |
| Dc battery voltage: | 12 / 24 V |
| Depth: | 70 mm |
| Efficiency: | 95% |
| Height: | 33.5 mm |
| International protection (ip) code: | IP20 |
| Led indicators: | Yes |
| Operating temperature (t-t): | -20 - 50 °C |
| Overcurrent protection: | Yes |
| Polarity reverse circuit protection: | Yes |
| Product colour: | Blue, Black |
| Product type: | Charging regulator |
| Rated current: | 10 A |
| Re-energising when voltage rises to: | 13.1 / 26.2 V |
| Short circuit protection: | Yes |
| Shutdown when voltage drops to: | 11.2 / 22.4 V |
| Storage relative humidity (h-h): | 0 - 95% |
| Suitable for: | Photovoltaic system |
| Temperature sensor: | Yes |
| Terminal size: | 5 mm² |
| Voltage monitoring: | Yes |
| Weight: | 150 g |
| Width: | 133 mm |
