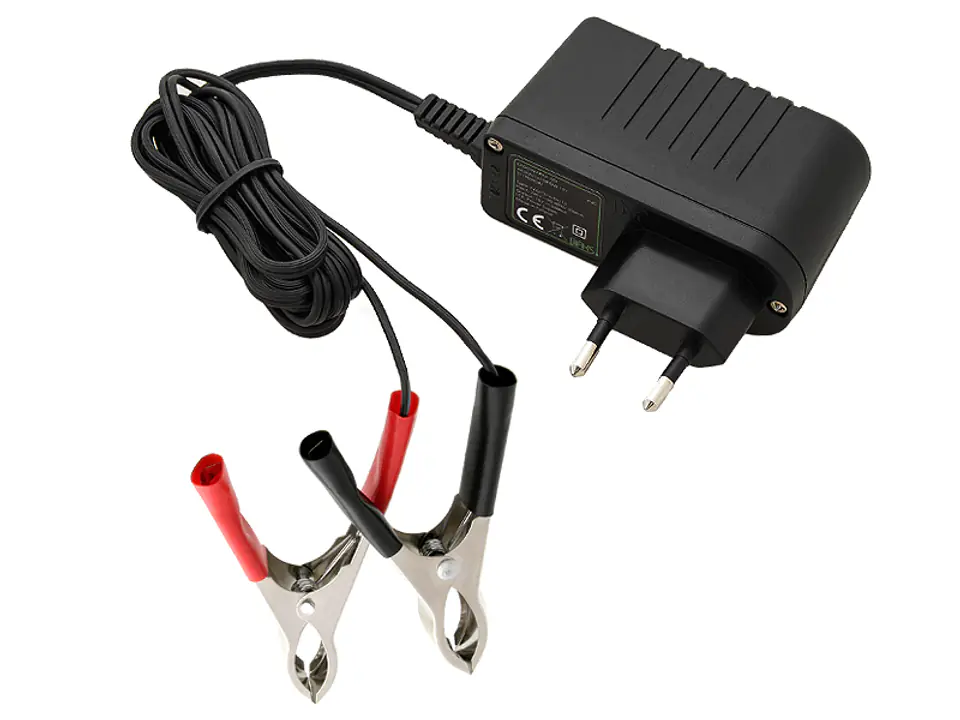

The presented device is a more powerful equivalent of the v0.7 LED model. Designed to charge batteries whose capacity ranges from 10Ah to 50Ah. Thanks to larger clamps than in other models, connecting larger batteries (including car batteries) is trouble-free.
Technical data:
- Type: Pulse converter, LED signaling
- Output voltage: 7.2V DC
- Maximum output current: 1550mA
- Rated output current: 1500mA
- Input voltages: 230 AC
- Maximum input current: 200mA
- Max power: 11W
- Current limit: Yes (1550mA)
- Overload protection
- Short circuit protection
- Overvoltage protection
- Protection: II class (double insulation)
- MTBF 30,000 h
- Operating temperature: 0~40*C
- Storage temperature: -20~85*C
- Wire length: 1.5m
- Total dimension: 77x30x90mm
- Weight: 160g
