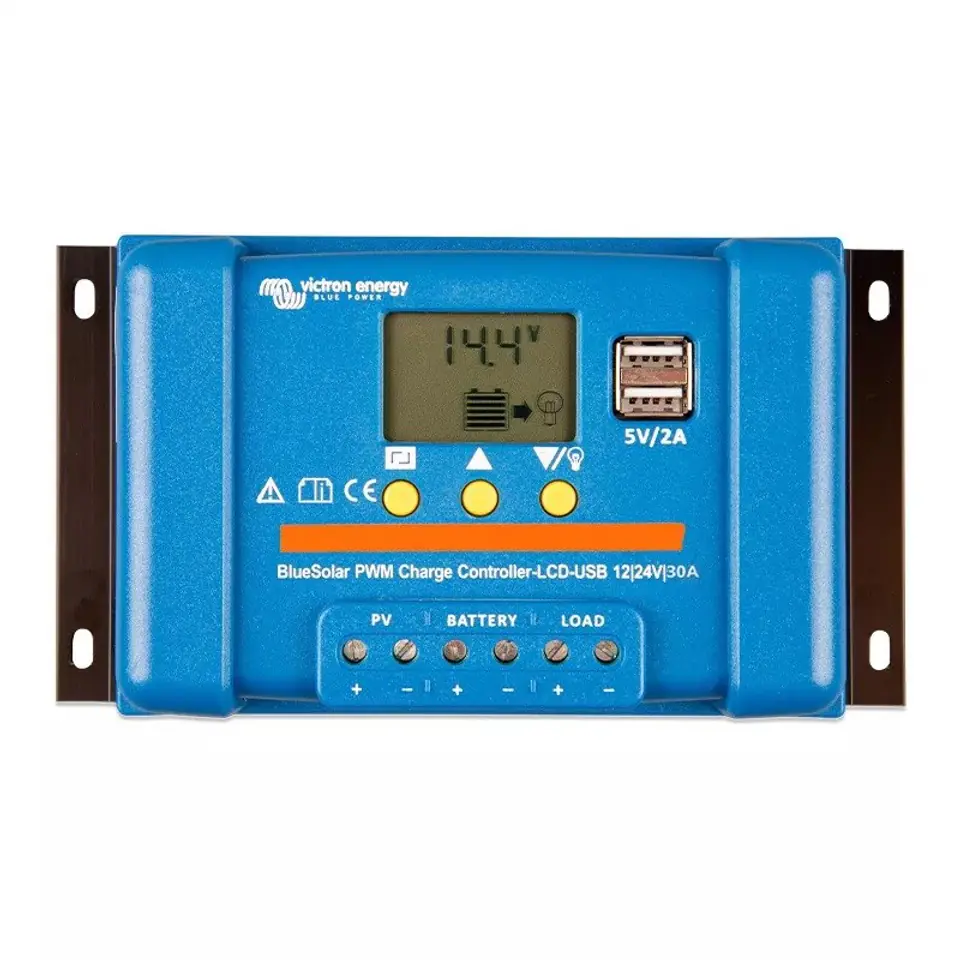

Charge controller VICTRON ENERGY BlueSolar PWM-LCD&USB 12/24V - 30A (SCC010030050)
€59.33
Shipping from warehouse: A3
Estimated shipping: Thu, May 16 - Mon, May 20
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Victron Energy
- Product code:
- SCC010030050 / 8719076046226
Share this product:
Specification
| Awg wire size: | 6 |
|---|---|
| Brand compatibility: | Victron Energy |
| Built-in display: | LCD |
| Charging voltage (absorption): | 14,4 V / 28,8 V |
| Charging voltage (liquid): | 13,7 V / 27,4 V |
| Dc battery voltage: | 12 / 24 V |
| Depth: | 47 mm |
| Efficiency: | 95% |
| Height: | 101 mm |
| International protection (ip) code: | IP20 |
| Led indicators: | Yes |
| Number of usb type a ports: | 2 |
| Operating temperature (t-t): | -35 - 60 °C |
| Overcurrent protection: | Yes |
| Polarity reverse circuit protection: | Yes |
| Product colour: | Blue, Black |
| Product type: | Charging regulator |
| Rated current: | 30 A |
| Re-energising when voltage rises to: | 12.6 / 25.2 V |
| Short circuit protection: | Yes |
| Shutdown when voltage drops to: | 11.2 / 22.4 V |
| Suitable for: | Photovoltaic system |
| Temperature sensor: | Yes |
| Terminal size: | 16 mm² |
| Voltage monitoring: | Yes |
| Weight: | 300 g |
| Width: | 184 mm |
