CHARACTER GENERATOR OSD-50HD

€106.95

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Apr 30 - Fri, May 3

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: OSD-50HD / 5902887048425

Specification

Communication using optional devices::	PORT-22
Communication::	UART 3.3 V
Cooperation::	SG-1 mode – protocol of the SG-1 device operating in symbol display mode, the possibility of implementing its own protocols, character terminal mode and hexadecimal display It is possible to adapt the software to the customer's needs, e.g. adding a new communication protocol supporting other devices than those specified
Current consumption::	240 mA (both inputs: 3V3A and 3V3D)

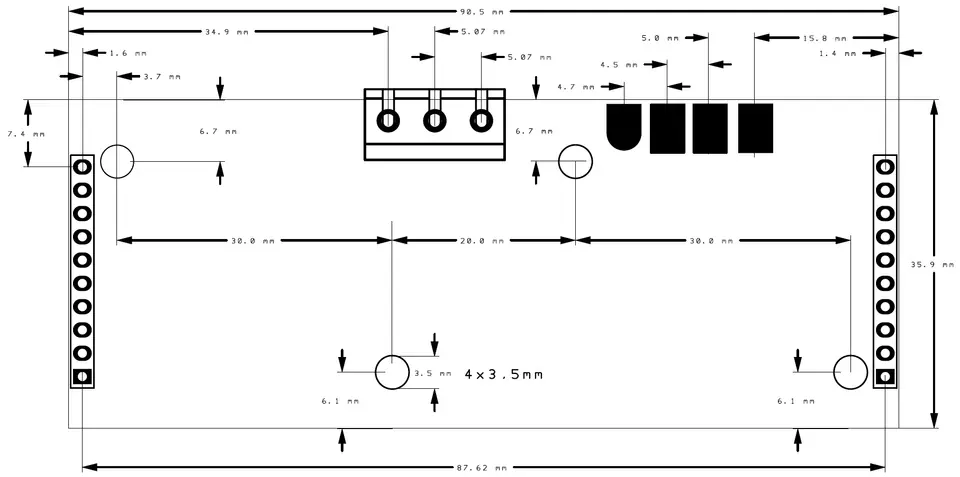

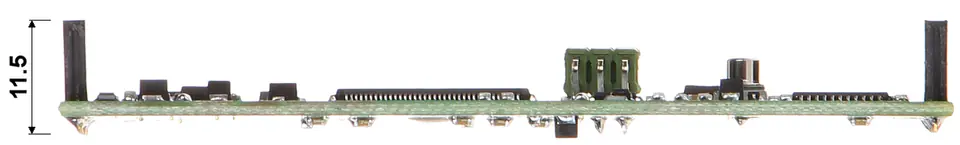

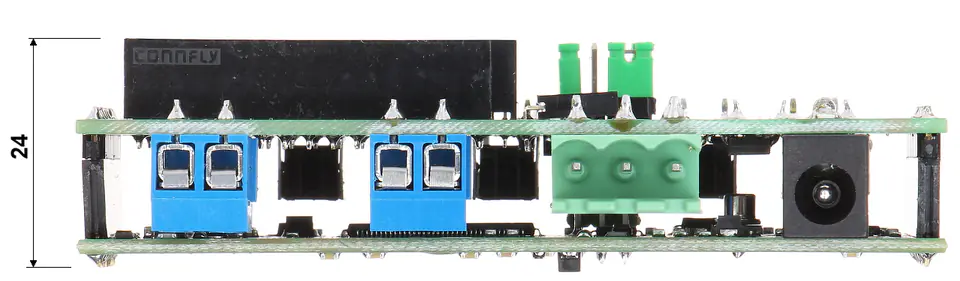

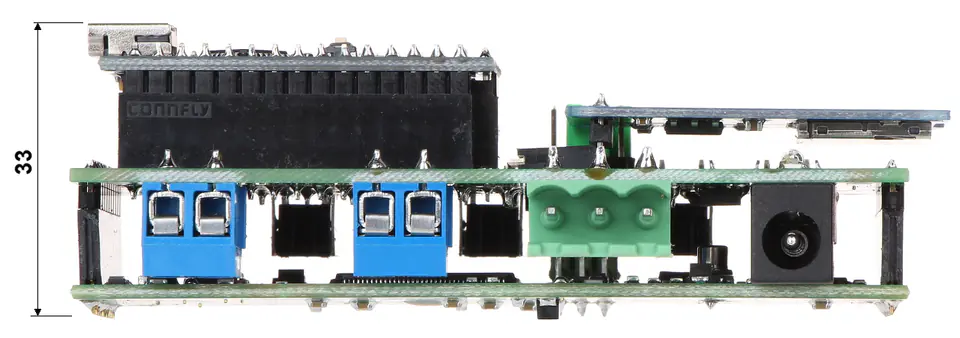

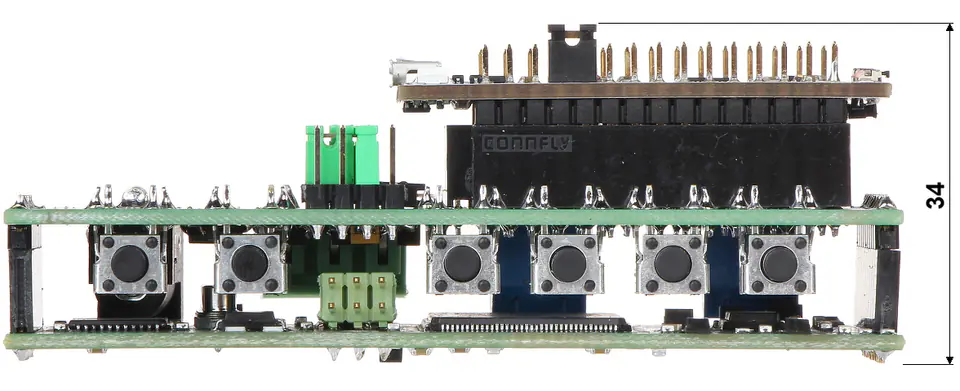

Dimensions::	91 x 36 x 11 mm
Manufacturer / brand::	DELTA
Maximum number of characters per line::	50
Maximum number of characters per screen::	2000
Maximum number of lines::	40
Power::	3.3 V DC Power supply via PORT-22
Scales::	0.02 kg
Supported standards::	AHD, HD-CVI, HD-TVI
Video signal amplification::	0 dB
Warranty::	3 years

The device is used to overlay alphanumeric characters, raster graphics and vector graphics on the image from the camera

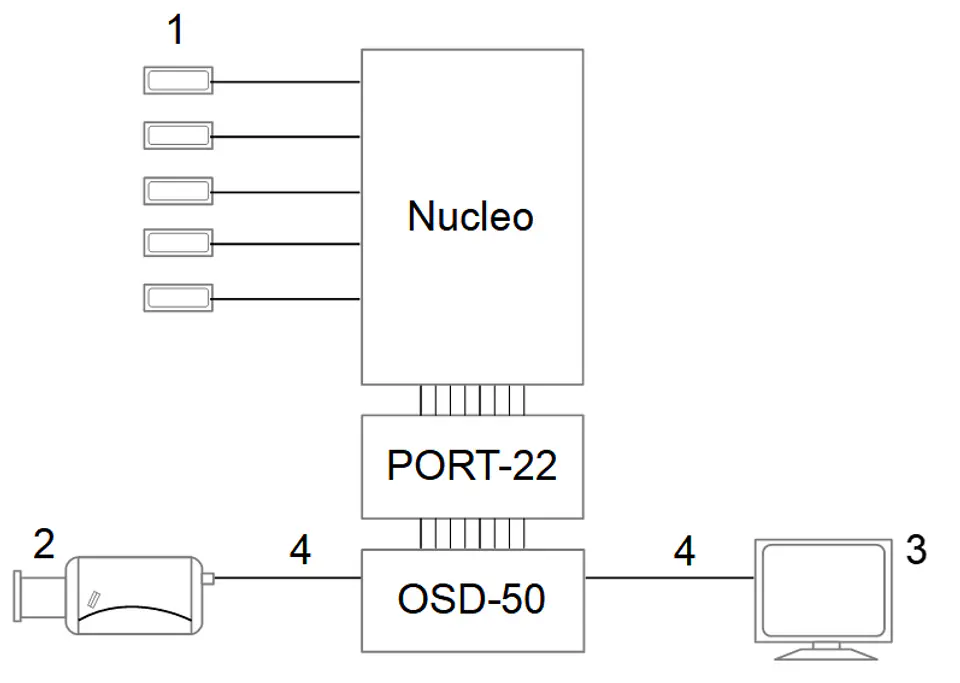

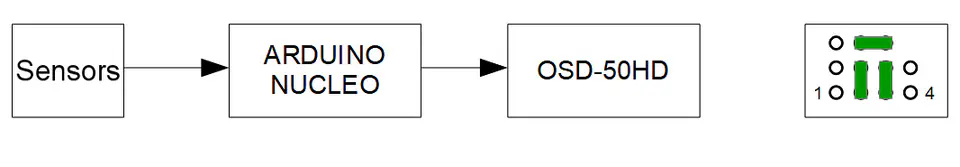

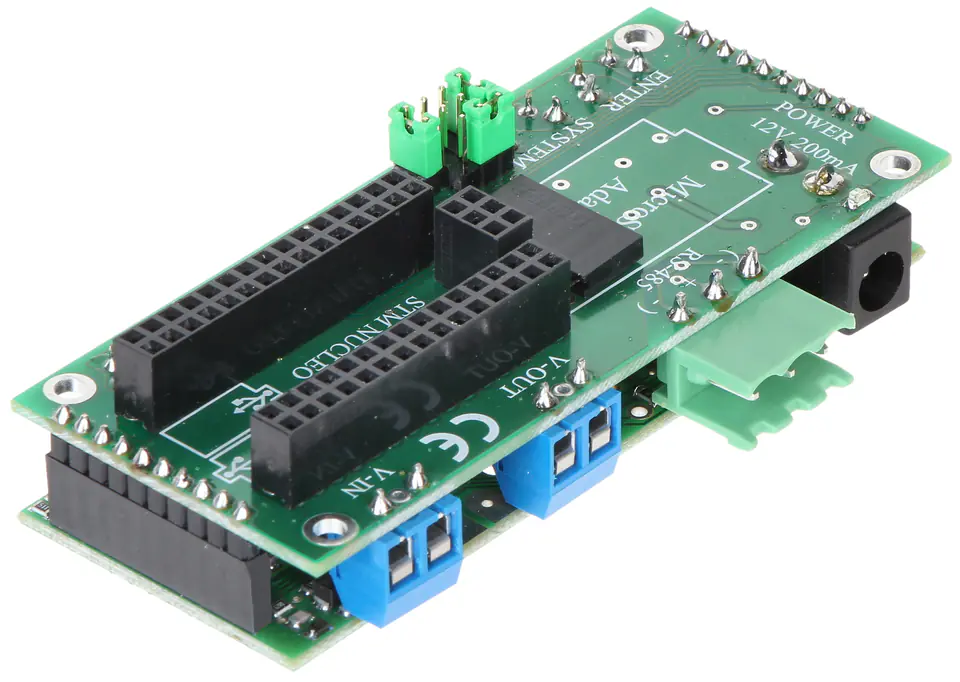

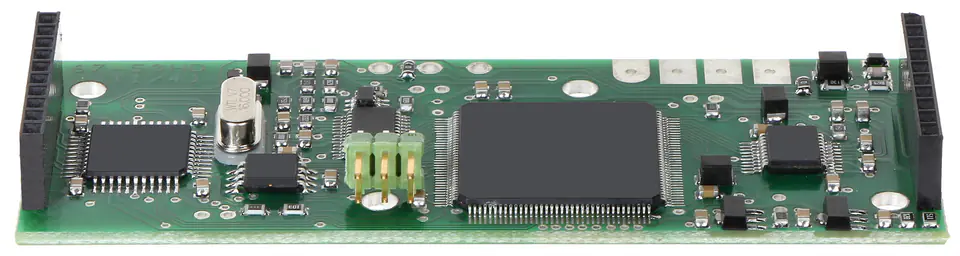

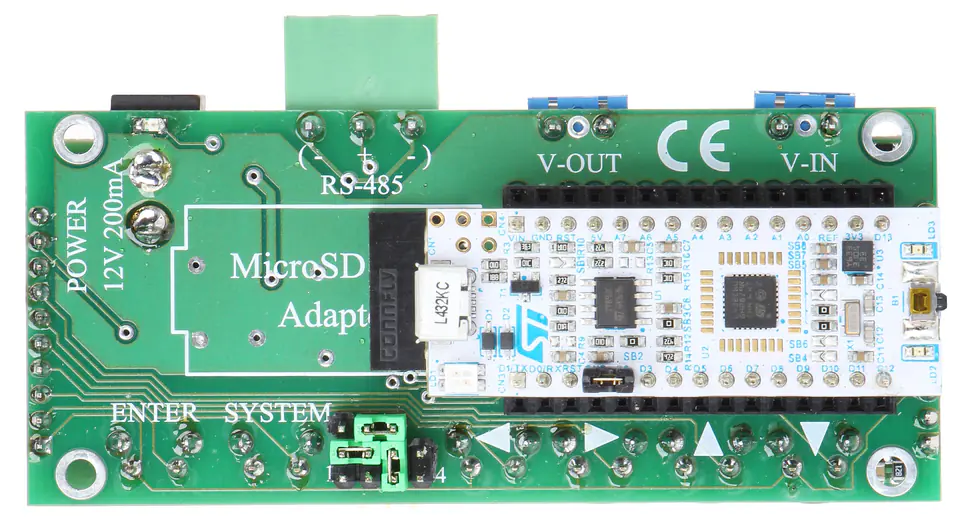

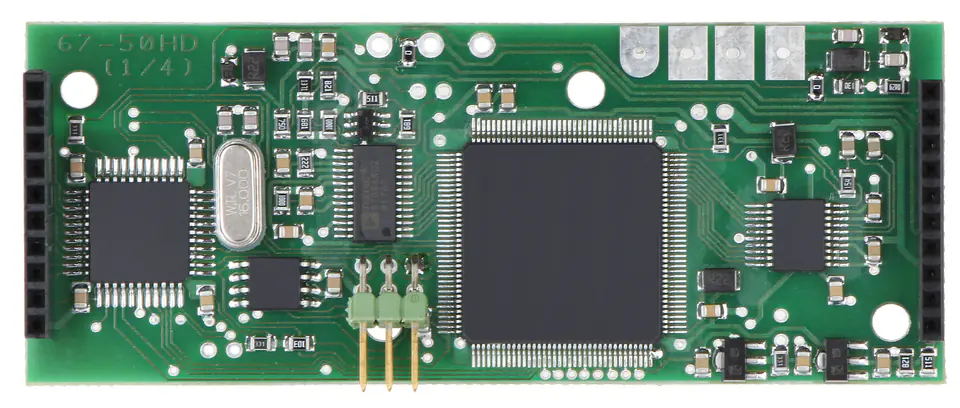

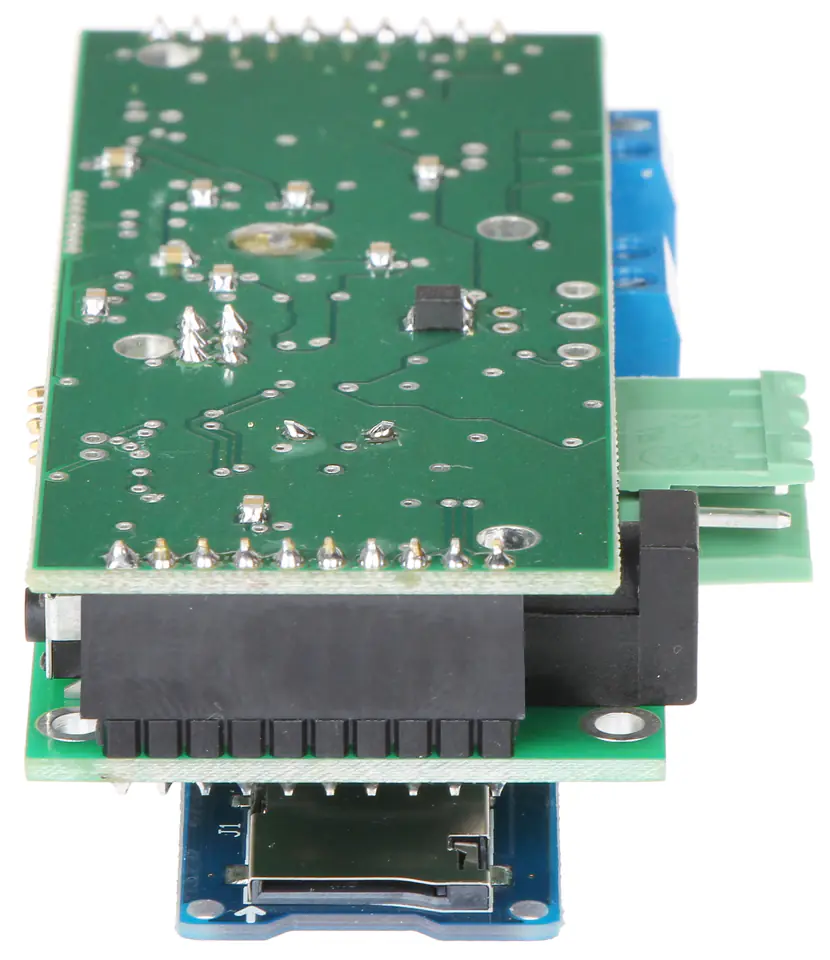

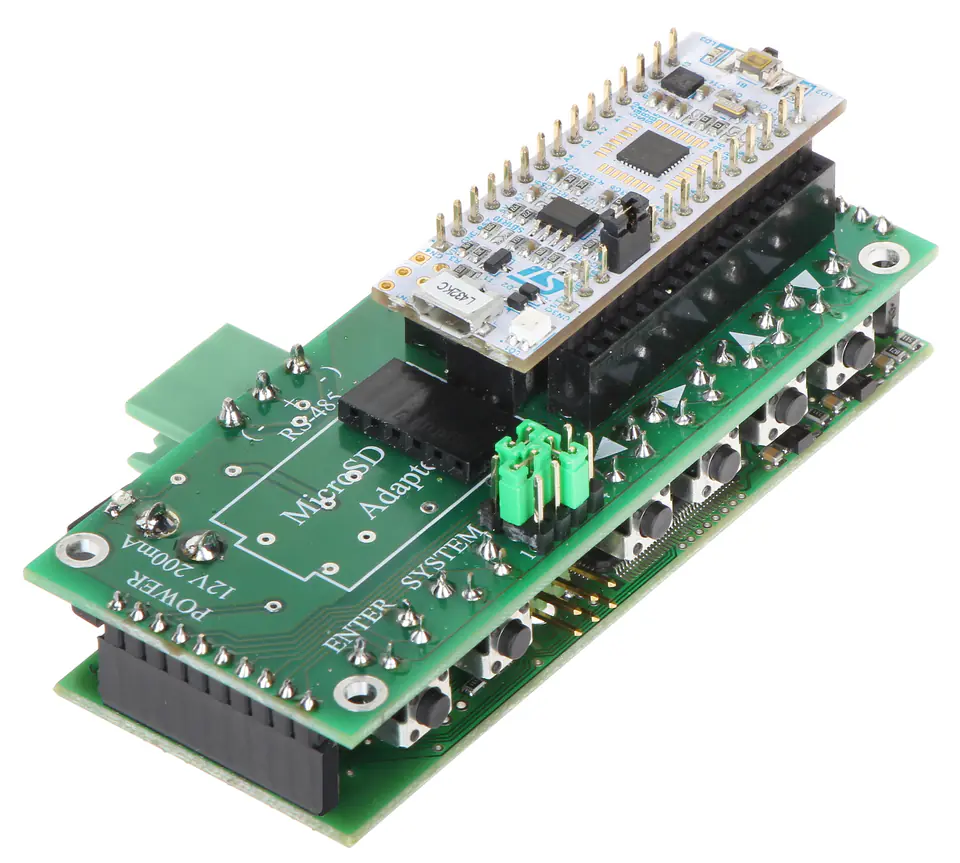

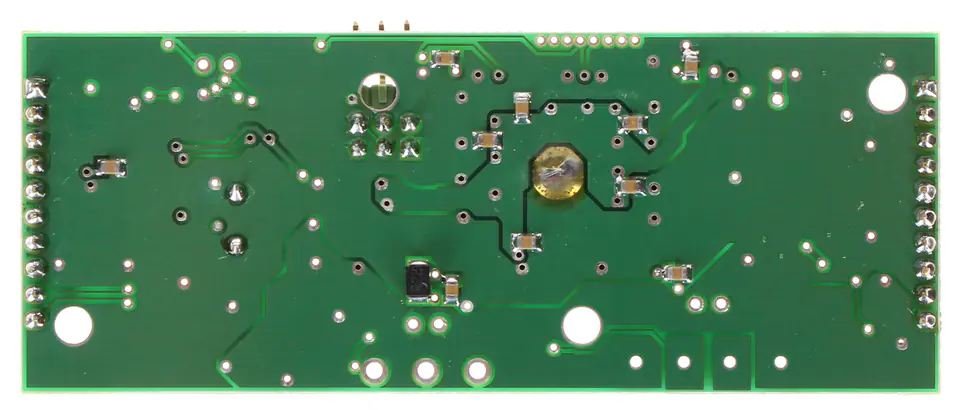

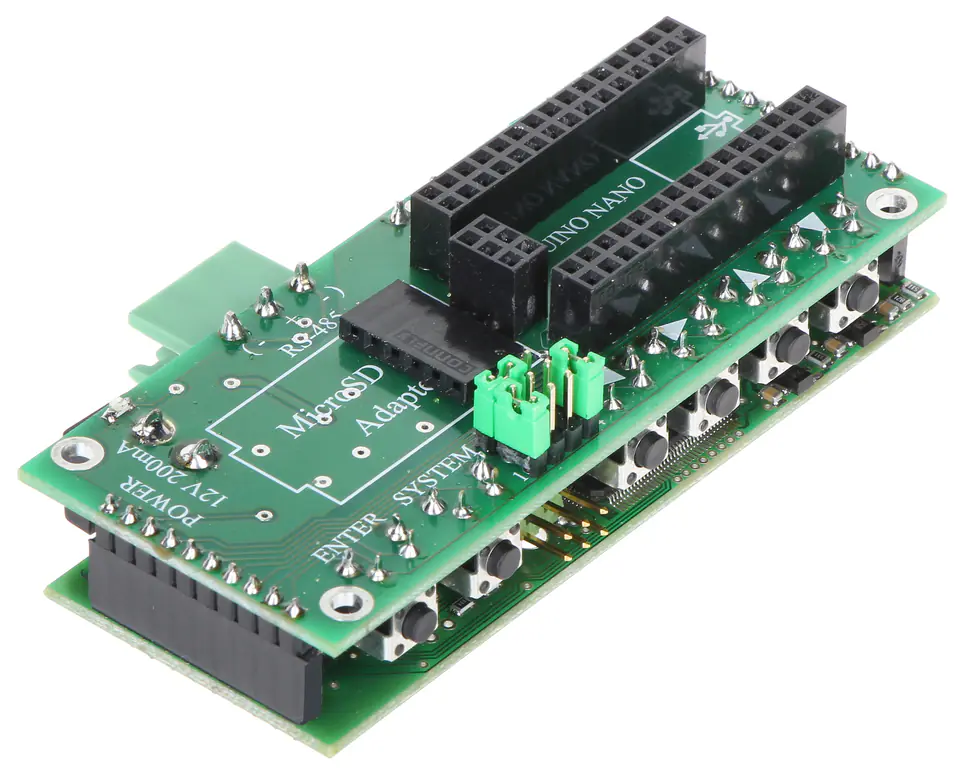

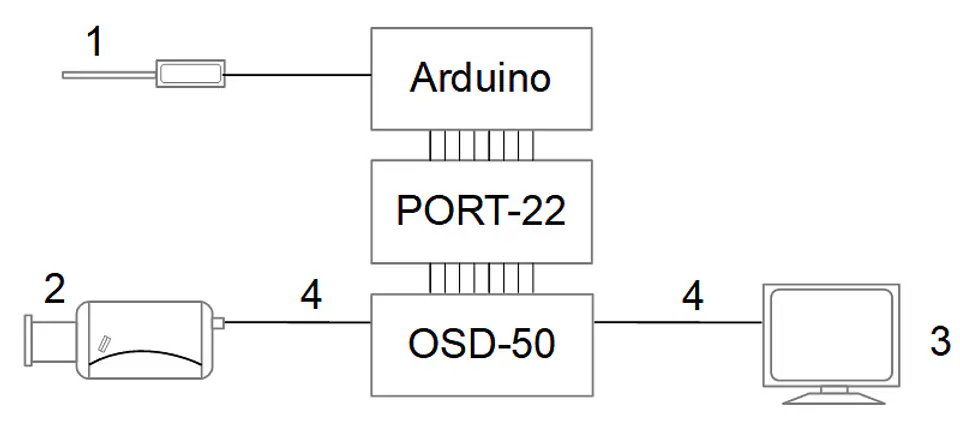

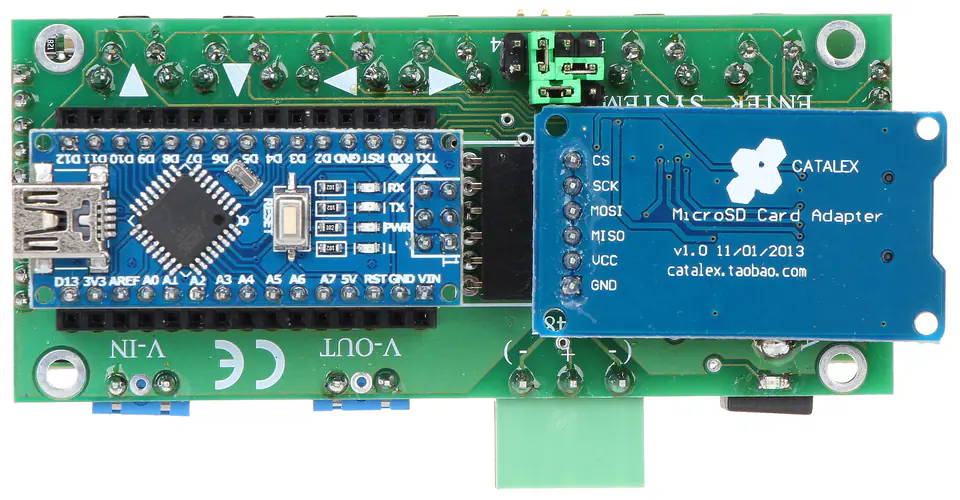

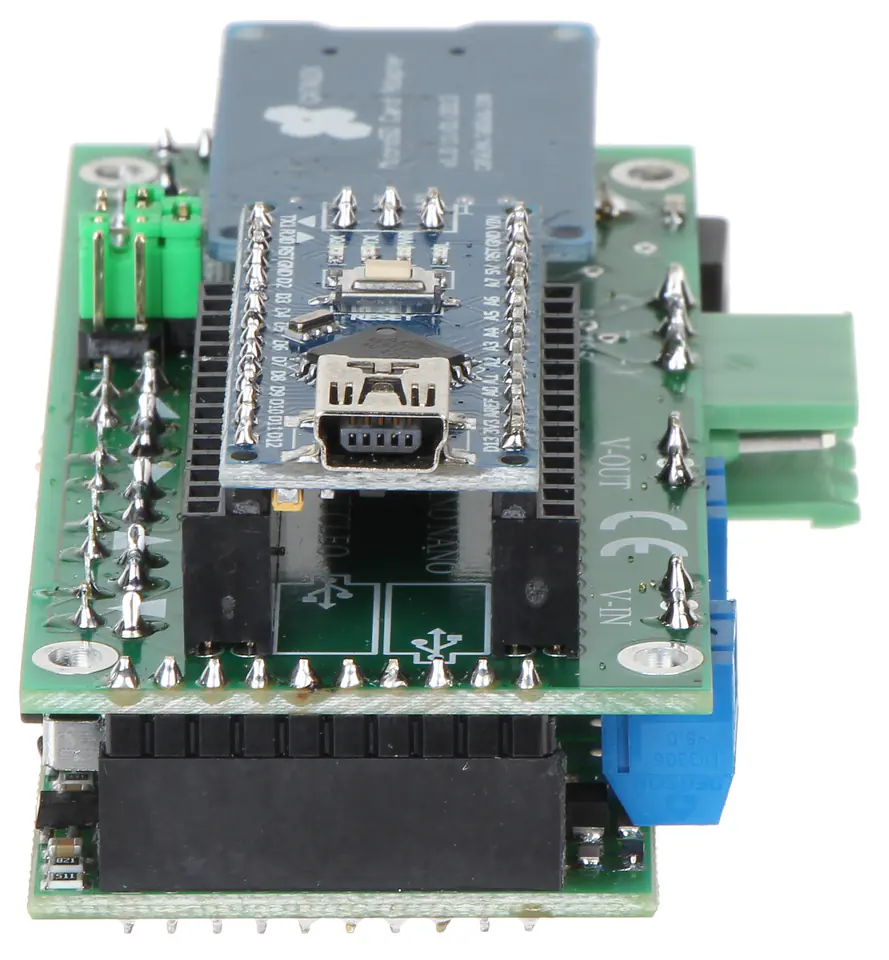

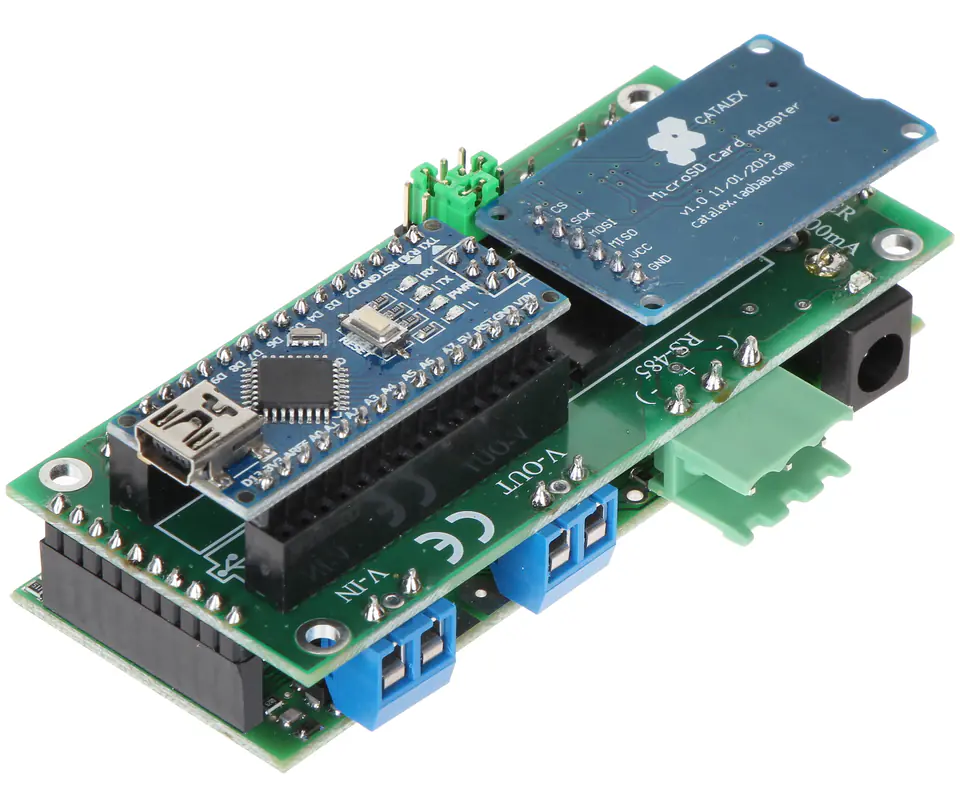

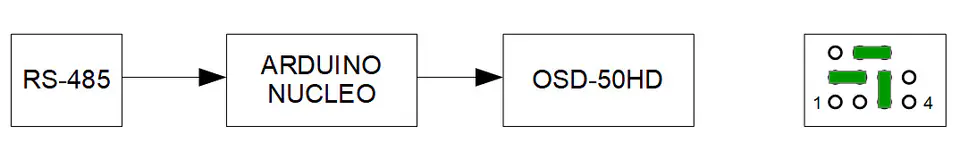

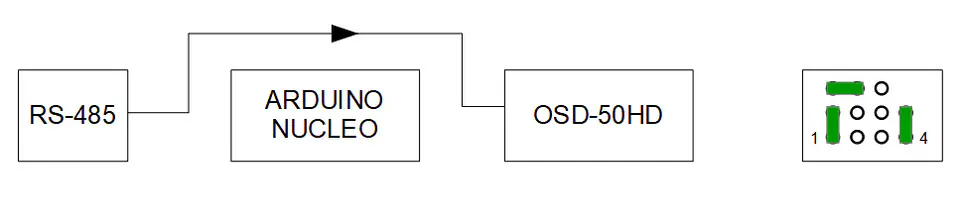

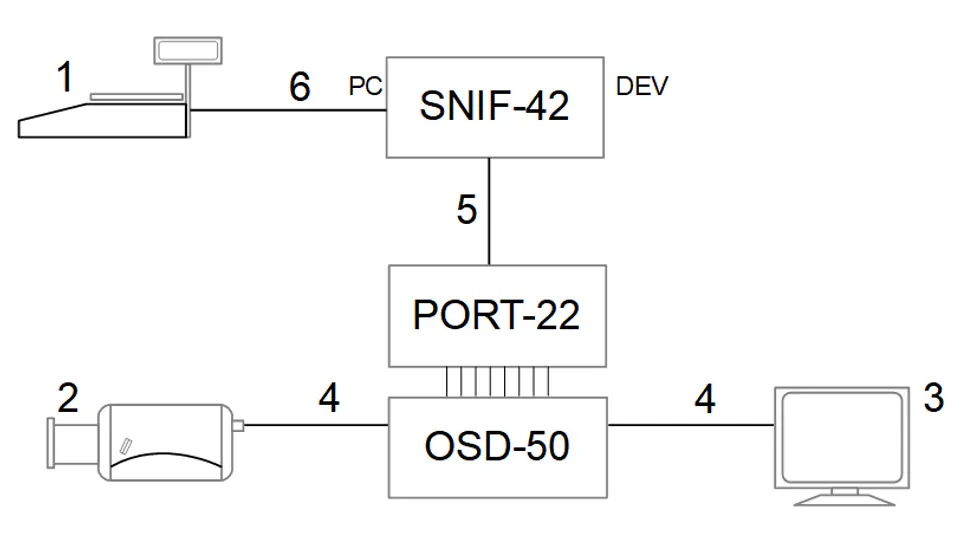

OSD-50HD is produced as a PCB and dedicated to devices where simultaneous image observation is required, as well as reading data sent from sensors placed in the device. Assuming the cooperation of OSD-50HD with such solutions as Arduino or Nucleo, we also offer the use of the PORT-22 converter.

From the side of the video signal, the OSD-50HD acts as a pass-through device, having a signal input and outputThe control protocol of the device is included in the technical documentation.

More information about DSOs at www.osd.systems

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
