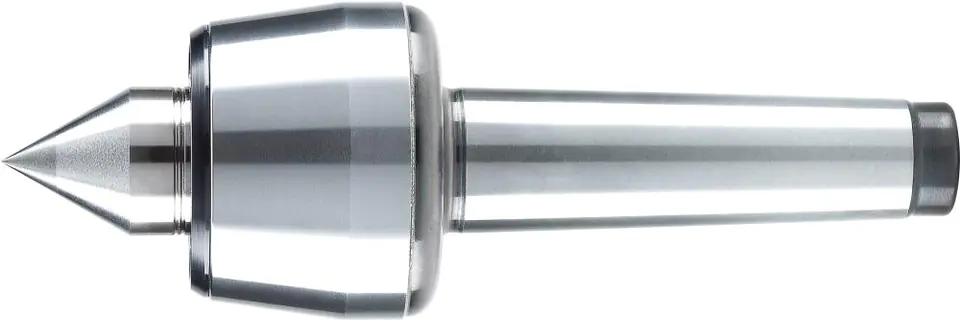

Rotating centering tusk – PRO HM
Made of hardened and ground body, with an apical angle of 60°. Top with wear-resistant carbide cartridge. Triple bearing for high axial and radial loads. Solid lubricant for the entire service life.
Centring rotary tusk, carbide insert, wlk.104 MK 3 Röhm
€631.10
Shipping from warehouse: B6
Estimated shipping: Thu, Apr 9 - Mon, Apr 13
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Röhm
- Product code:
- 90089 / 4019208021676
Share this product:

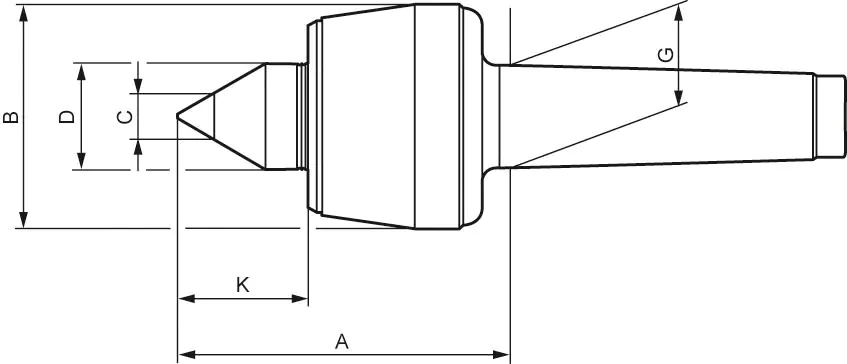

Specification
| Dimension a: | 70.5 mm |
|---|---|
| Dimension b: | 48.5 mm |
| Dimension c: | 11 mm |
| Dimension d: | 22 mm |
| Dimension g: | 23.825 mm |
| Dimension k: | 27 mm |
| Max. radial runout tolerance: | 0.005 mm |
| Max. speed: | 6300 min-1 |
| Max. workpiece weight: | 240 kg |
| Mount: | 3 Morse cone |
| Size: | 104 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
