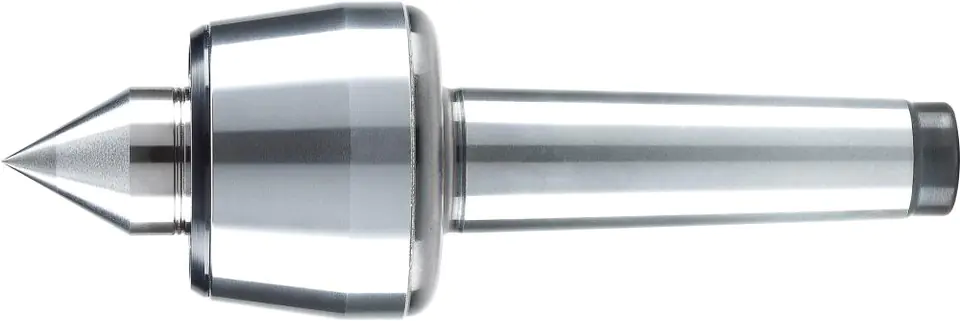

Rotating centering tusk – PRO HM
Made of hardened and ground body, with an apical angle of 60°. Top with wear-resistant carbide cartridge. Triple bearing for high axial and radial loads. Solid lubricant for the entire service life.
Centring rotary tusk, carbide cartridge, wlk.108 MK 4 Röhm
€838.15
Shipping from warehouse: B6
Estimated shipping: Fri, Apr 10 - Mon, Apr 13
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- Röhm
- Product code:
- 93306 / 4019208022659
Share this product:

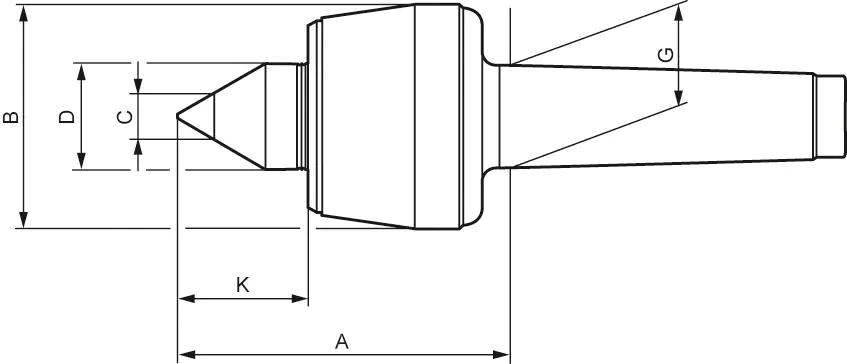

Specification
| Dimension a: | 102.5 mm |
|---|---|
| Dimension b: | 68.5 mm |
| Dimension c: | 14 mm |
| Dimension d: | 32 mm |
| Dimension g: | 31.267 mm |
| Dimension k: | 40 mm |
| Max. radial runout tolerance: | 0.005 mm |
| Max. speed: | 3800 min-1 |
| Max. workpiece weight: | 500 kg |
| Mount: | 4 Morse cone |
| Size: | 108 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
