Rotating centering tusk – PRO HM
Made of hardened and ground body, with an apical angle of 60°. Top with wear-resistant carbide cartridge. Triple bearing for high axial and radial loads. Solid lubricant for the entire service life.

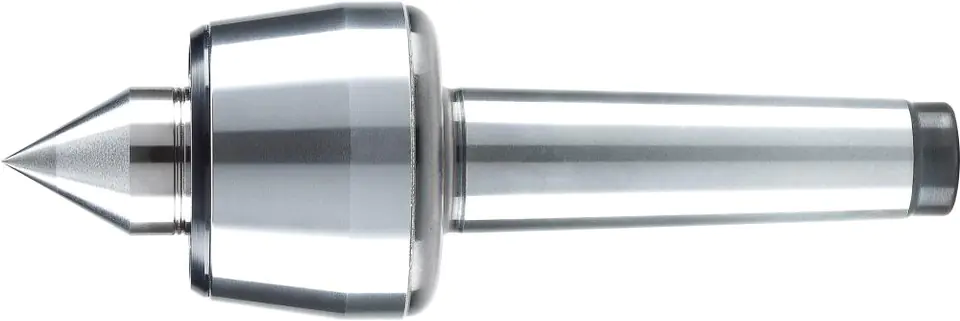

Centring rotary tusk, carbide cartridge, wlk.102 MK 2 Röhm
€601.51
Shipping from warehouse: B6
Estimated shipping: Wed, Jan 28 - Mon, Feb 2
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Röhm
- Product code:
- 32140 / 4019208013862
Share this product:

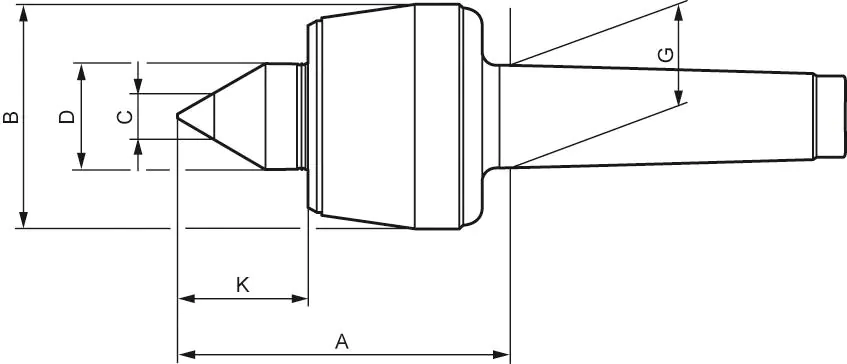

Specification
| Dimension a: | 65 mm |
|---|---|
| Dimension b: | 43 mm |
| Dimension c: | 11 mm |
| Dimension d: | 20 mm |
| Dimension g: | 17.78 mm |
| Dimension k: | 24 mm |
| Max. radial runout tolerance: | 0.005 mm |
| Max. speed: | 7000 min-1 |
| Max. workpiece weight: | 120 kg |
| Mount: | 2 Morse cone |
| Size: | 102 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
