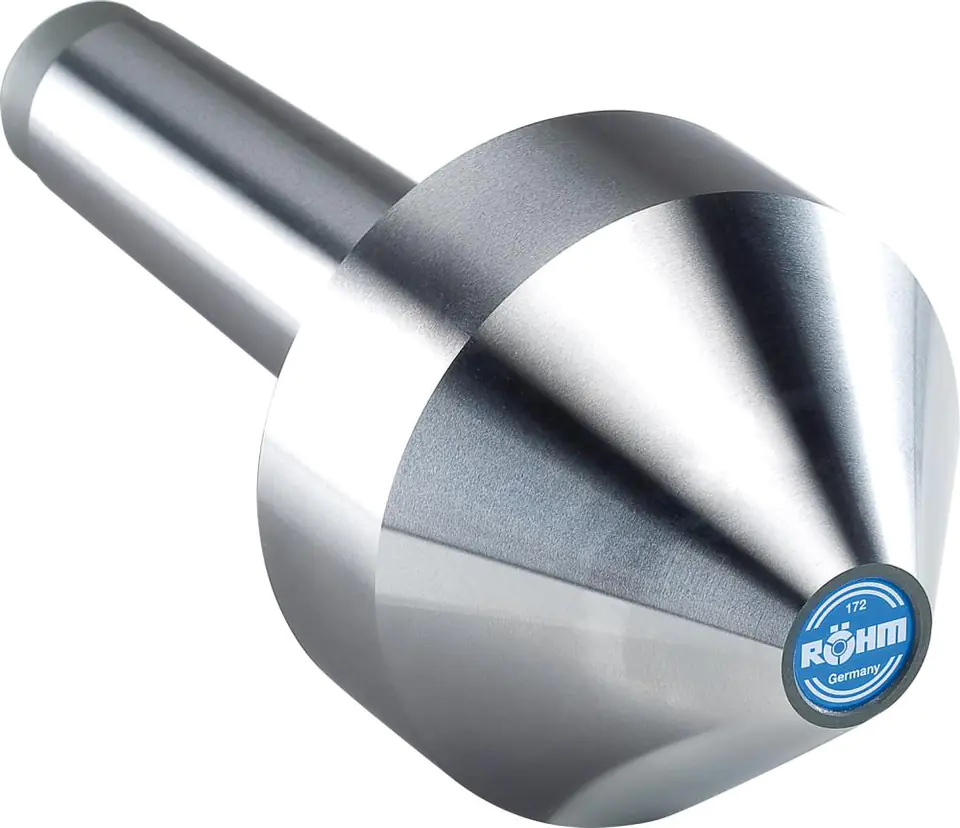

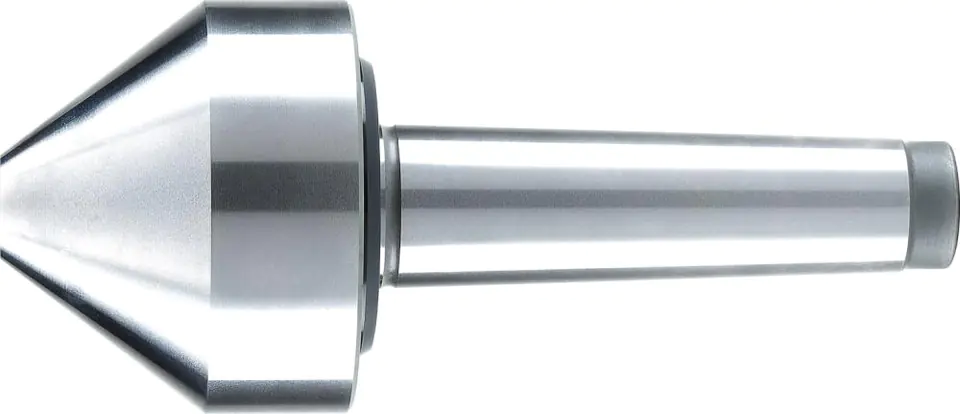

Centering tusk rotary, bluntly tipped
Design: mounting grip, body and hardened cone. Blunt-tipped cone, 75°, stable bearing.
Application: for processing pipes and other hollow elements.
Centering taper, 618-75,Wlk174A MK5 RÖHM
€1,552.01
Shipping from warehouse: B6
Estimated shipping: Fri, Apr 10 - Mon, Apr 13
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- Röhm
- Product code:
- 63614 / 4019208017426
Share this product:

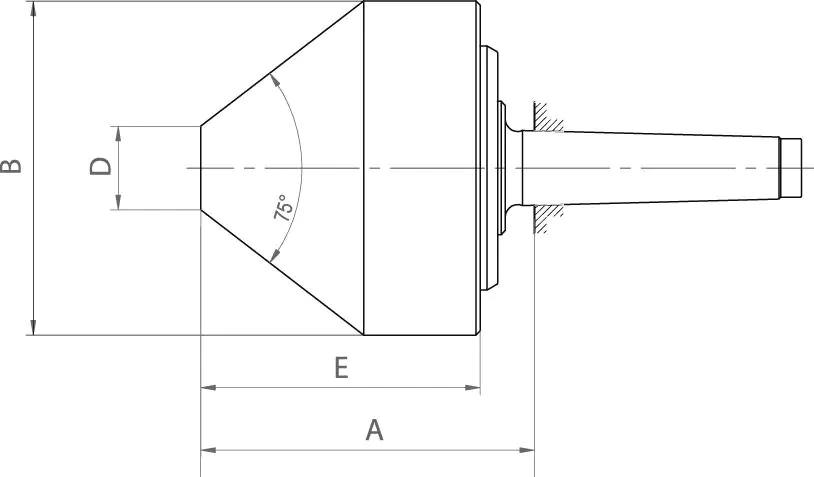

Specification
| Dimension a: | 106 mm |
|---|---|
| Dimension b: | 170 mm |
| Dimension d: | 50 mm |
| Dimension e: | 90 mm |
| Dimension g: | 44.399 mm |
| Max. radial runout tolerance: | 0.01 mm |
| Max. workpiece weight: | 1600 kg |
| Mount: | 5 Morse cone |
| Size: | 174a |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
