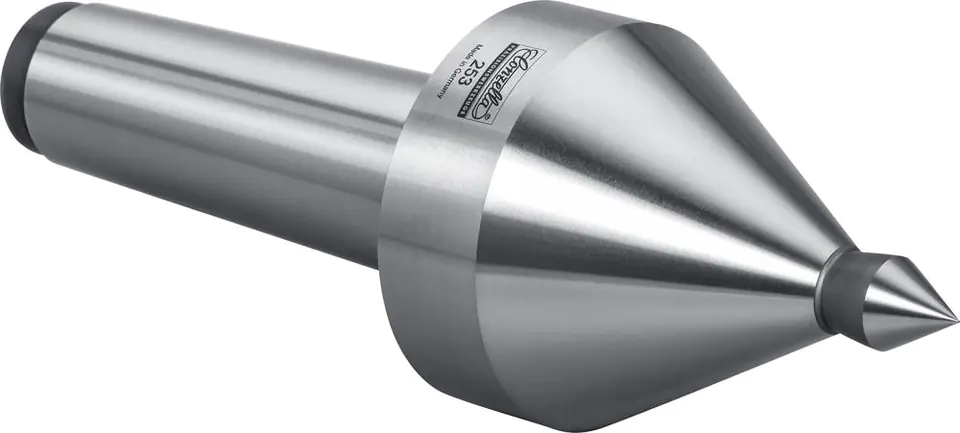

Centering cone, MK2,with elongated CONZELLA tip

€468.73
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Thu, Nov 13 - Mon, Nov 17
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
CONZELLA
Product code:
221 / 4260141241632

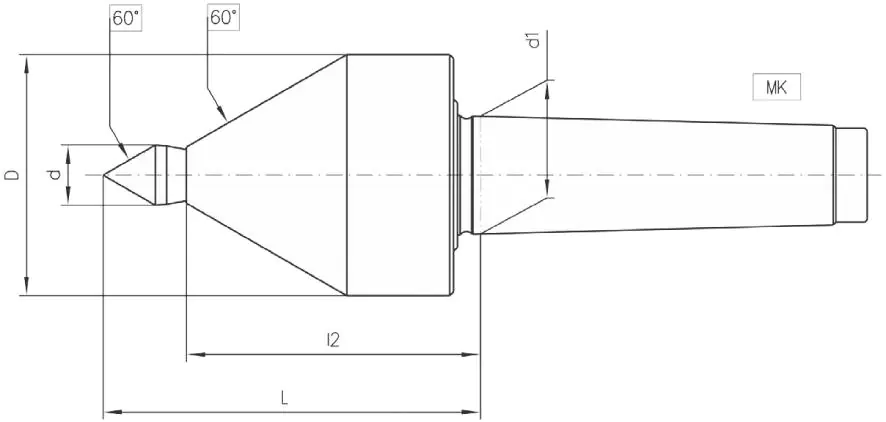

Specification

D:13 mm
D1:17.78 mm
L:86.5 mm
L2:68.5 mm
Max. speed:4200 min-1
Max. workpiece weight:170 kg
Mount:2 Morse cone
Radial runout tolerance:0.005 mm

Rotary lathe tusk – multifunctional

Design: multi-tool for centering and processing pipes with an elongated working vertex. Completely hardened and grinded. The shaft seal ring prevents dirt from entering, a solid lubricant that lasts the entire service life.
Application: multi-function vertex for universal use on hand lathes and CNC.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
