Centering ball rotary,652-20ACVL wlk.505 MK5 RÖHM

€1,853.62
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Jul 8 - Fri, Jul 11
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Röhm
Product code:
79922 / 4019208018737

Specification

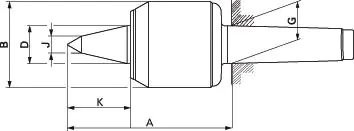

Dimension a:177.5 mm
Dimension b:95 mm
Dimension d:40 mm
Dimension g:44.399 mm
Dimension j:15 mm
Dimension k:66 mm
Max. axial clamping force:1500 daN
Max. speed:2500 min-1
Max. workpiece weight:1100 kg
Mount:5 Morse cone
Radial runout tolerance:0.01 mm
Size:505

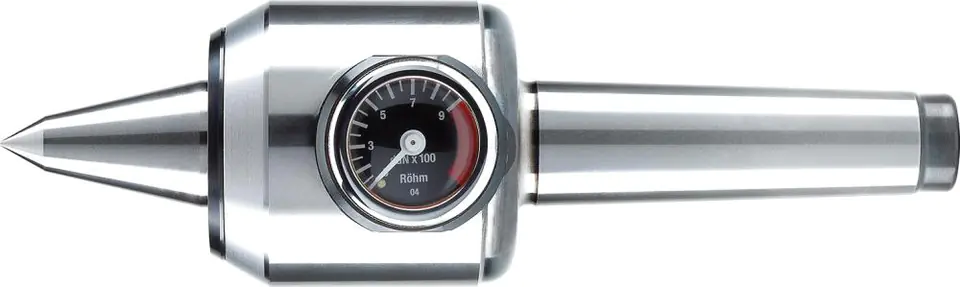

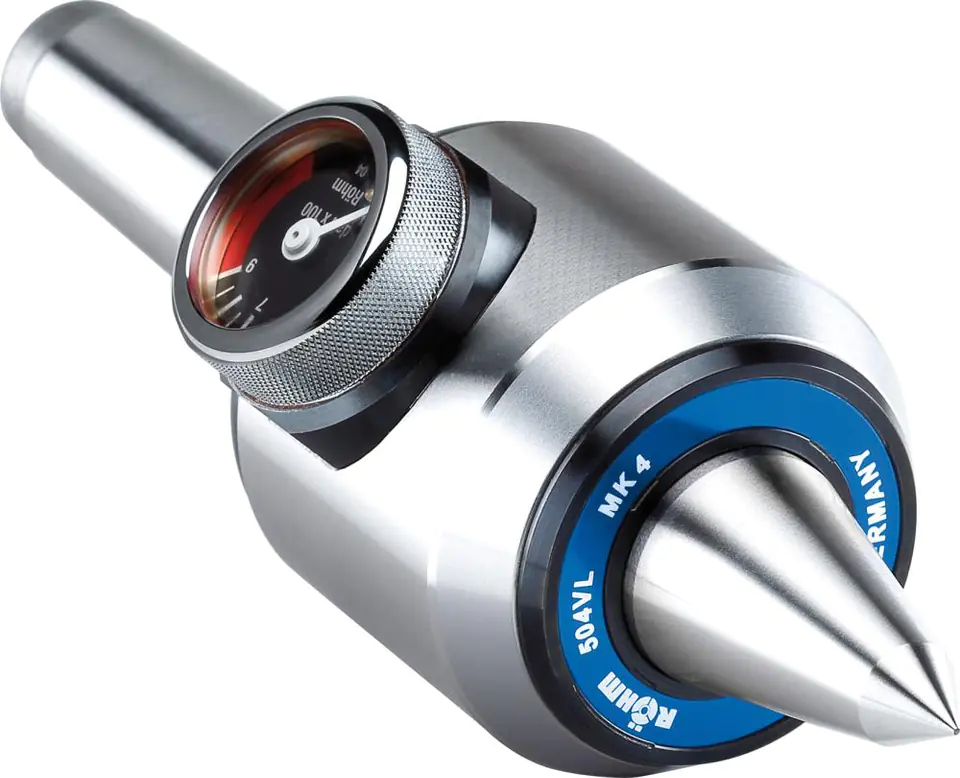

Rotary lathe tusk – AC-VL CONTROL, extended

Made of: body and top die-forged, hardened and sanded. The tip can be ground many times, it is bearing on the grip, a slight deviation of the VL 60° blade. Precision rolling bearing with lip seal.
The clamping force is read directly on the pressure gauge in daN.
Application: especially suitable as a fang working with the front carrier, for fixing and maintaining a constant value of the clamping force and fixing long, narrow details to avoid deflection.
