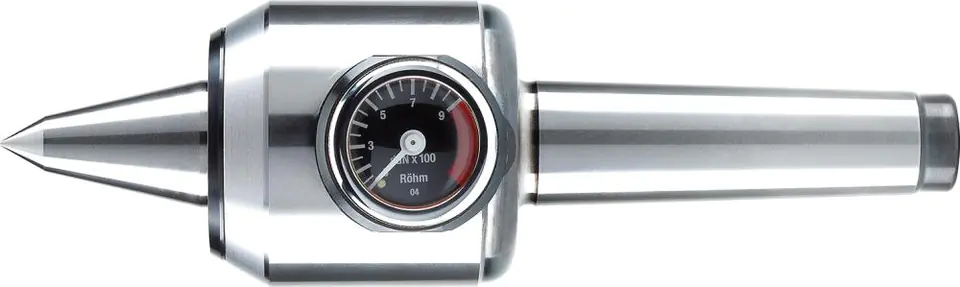

Centering ball rotary,652-20ACVL wlk.503 MK3 RÖHM

€1,221.57
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Thu, Apr 9 - Mon, Apr 13
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Röhm
Product code:
79920 / 4019208018713

Specification

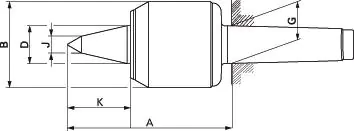

Dimension a:120 mm
Dimension b:64 mm
Dimension d:25 mm
Dimension g:23.825 mm
Dimension j:11 mm
Dimension k:46.5 mm
Max. axial clamping force:550 daN
Max. speed:4000 min-1
Max. workpiece weight:260 kg
Mount:3 Morse cone
Radial runout tolerance:0.01 mm
Size:503

Rotary lathe tusk – AC-VL CONTROL, extended

Made of: body and top die-forged, hardened and sanded. The tip can be ground many times, it is bearing on the grip, a slight deviation of the VL 60° blade. Precision rolling bearing with lip seal.
The clamping force is read directly on the pressure gauge in daN.
Application: especially suitable as a fang working with the front carrier, for fixing and maintaining a constant value of the clamping force and fixing long, narrow details to avoid deflection.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
